Inductive Sensor

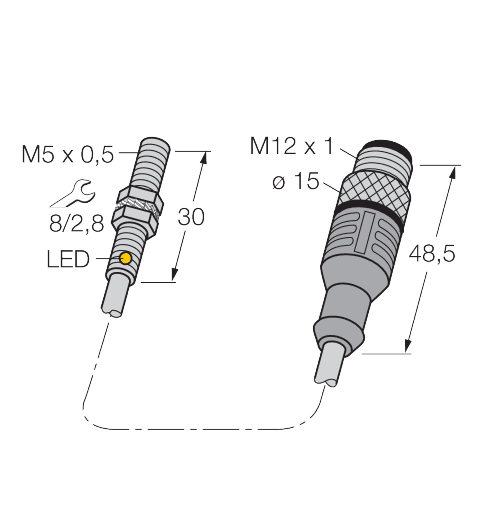

BI1-EG05-Y1-0.2-RS4.21T

Order ID no. 1003295

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 1 G, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable color: Blue
Cable length (m): 0.2
Connector type: M12 x 1
Design: Threaded barrel
Electrical connection: Cable with connector
Housing diameter (mm): ⌀ 5 mm
Housing material: Stainless steel
Housing quality: 1.4427 SO
Mounting conditions: Flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12
Rated switching distance (mm): 1
Switching frequency (kHz): 5
