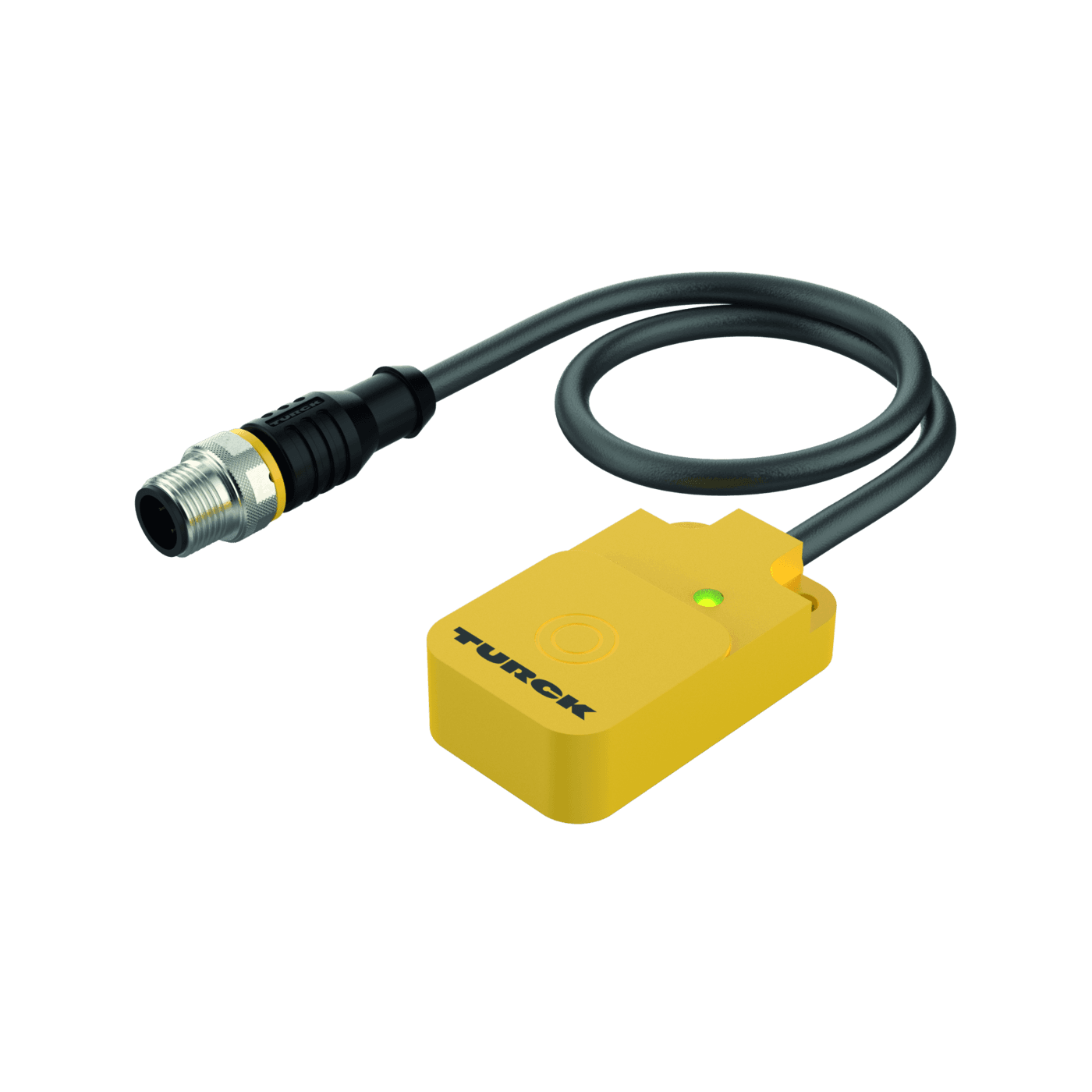

HF Read/Write Head

TN-Q14-0.15-RS4.47T

Order ID no. 7030235

Ambient temperature max.: 70
Ambient temperature min.: -25
Approvals: CE, UKCA, UL
Cable color: Gray
Cable length: 0.15
Cable quality: TPU
Connector type: M12 x 1
Design: Rectangular
Device type: Identification

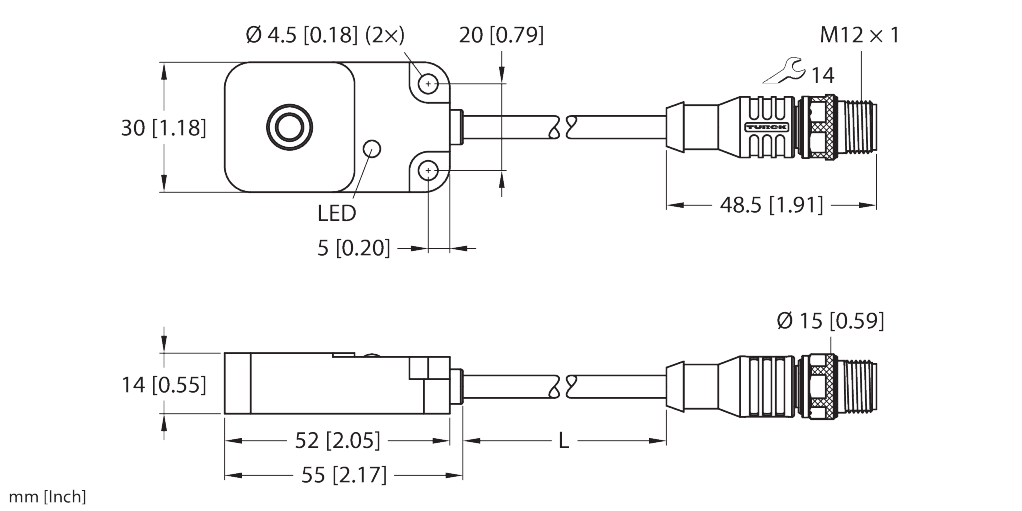

Dimensions: 55 mm x 30 mm x 14 mm
Electrical connection: Cable with connector
Housing material: Plastic
Housing quality: PBT-GF30-V0
Housing surface: Yellow
Mounting conditions: Non-flush
Network protocol: Connection to RFID interface
Operating voltage: DC
Protection class: IP67
Quality active face: PBT-GF30-V0
Radio approvals (HF): EU/RED: Europe, FCC: USA, IC: Canada, KC: South Korea, MIC: Japan, RCM: Australia/New Zealand, SRRC: PR China, UK/SI 2017/1206: United Kingdom
Read/Write distance max.: 72
Suitable for bus mode to TBEN-*: No
Switching element function: Read/Write
Technology: HF RFID
