Magnetic Field Sensor For Pneumatic Cylinders

BIM-UNT-AP6X2-H1141

Order ID no. 4685726

In Stock

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Connector type: M12 x 1
Cylindrical design: Dovetail cylinder, grooved, Round cylinder, T-groove cylinder, Tie-rod cylinder
Design: Rectangular

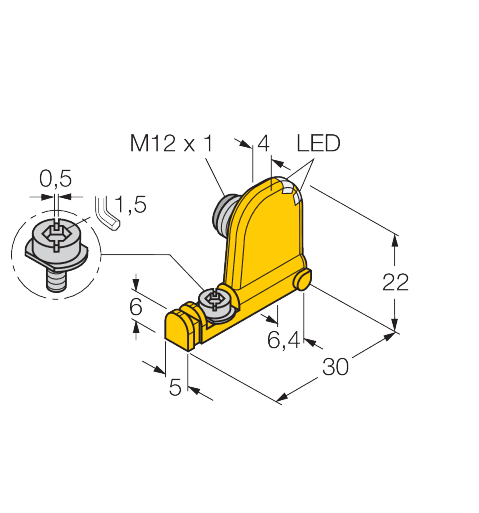

Dimensions (L x W x H): 30 mm x 5 mm x 22 mm
Electrical connection: Connector
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: PP
Switching element function: normally open NO
Switching frequency (kHz): 1

Electrical connection: Connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
