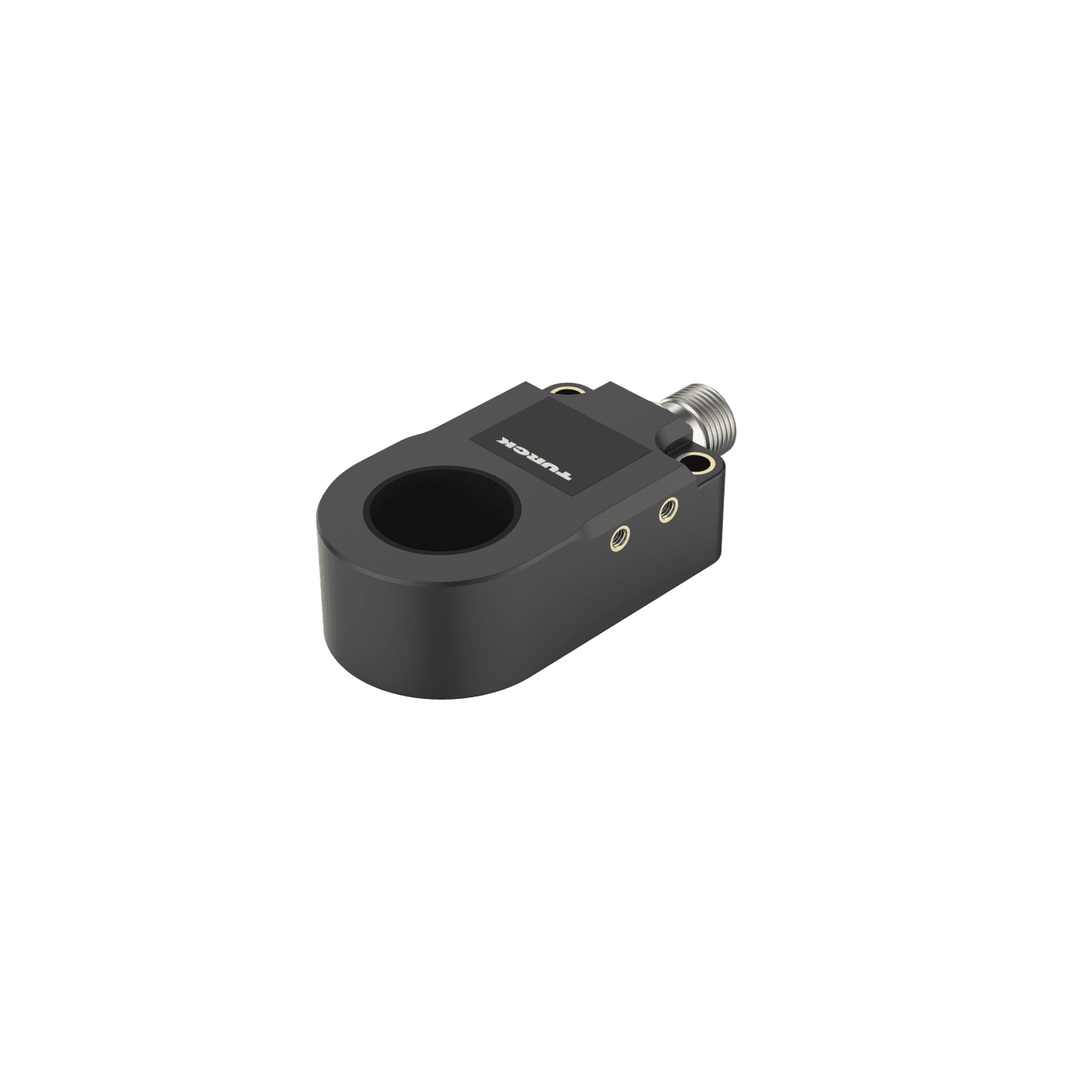

Inductive Sensor Ring sensor

BI20R-W20-IOL6X-H1141

Order ID no. 100053321

In Stock

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: cULus
Communication protocol: IO-Link
Connector type: M12 x 1
Design: Ring sensor

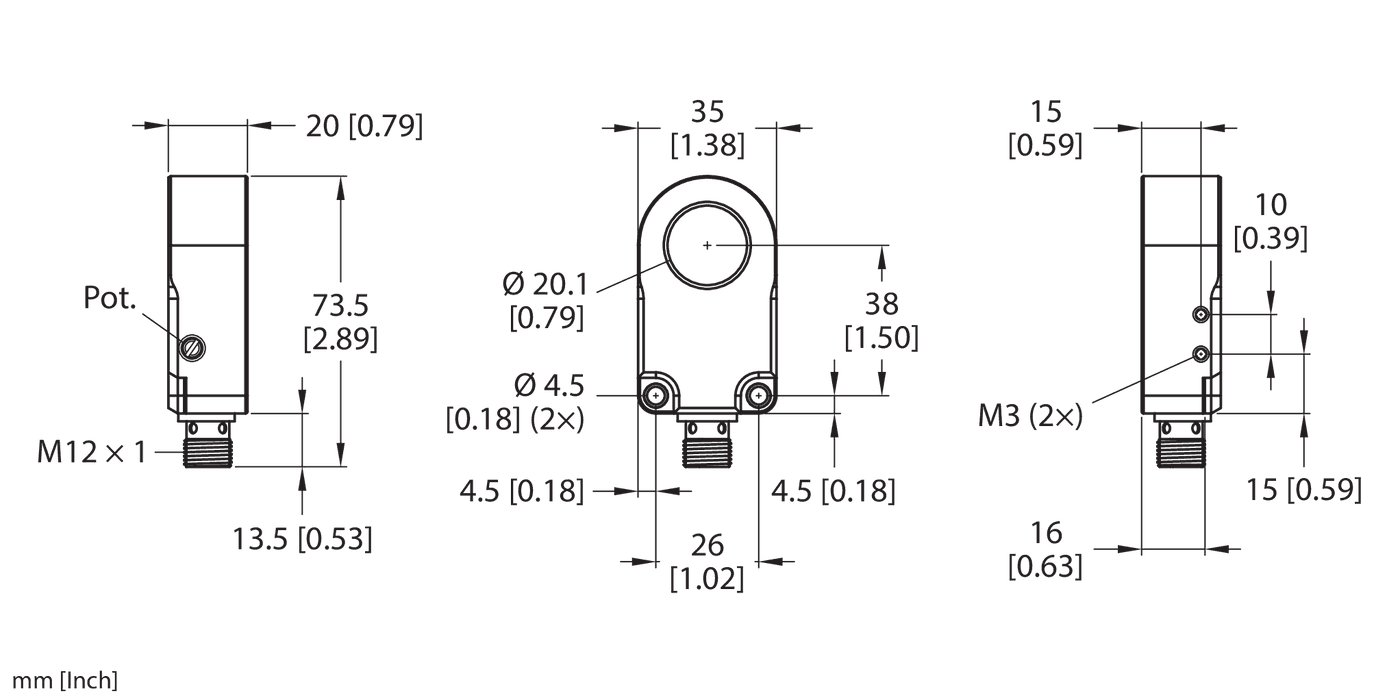

Dimensions (L x W x H): 60 mm x 35 mm x 20 mm
Electrical connection: Connector
Housing material: Plastic
Housing quality: PA, POM
Inside ring diameter D (mm): 20.1
Operating voltage: DC
Power supply connectivity: M12
Protection class: IP67
Special features: Potentiometer, Ring sensor, dynamic output, Ring sensor, static output
Switching element function: NO/NC programmable
