Inductive Sensor dual sensor for rotary actuators

NI4-DSU35-2Y1X2-B1160-FKE4.3

Order ID no. 1051015

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Connector type: 7/8″
Design: Dual sensor for rotary actuators

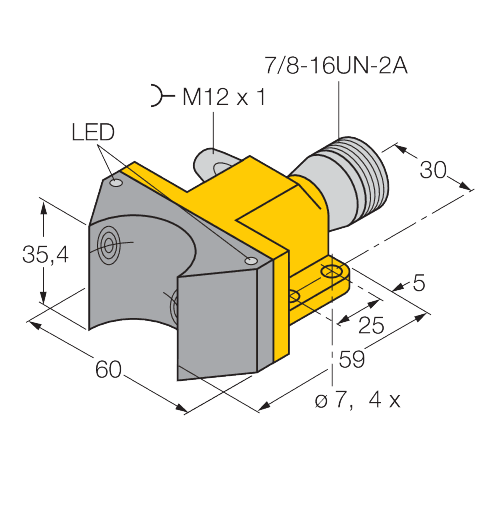

Dimensions (L x W x H): 59 mm x 60 mm x 35,4 mm
Electrical connection: Connector
Housing material: Plastic
Housing quality: PP-GF30
Housing surface: Yellow
Mounting conditions: Non-flush
Operating voltage: DC
Protection class: IP67
Quality active face: PP-GF30
Rated switching distance (mm): 4
Switching frequency (kHz): 0.05
