BI4-EM12E-AP45XLD-0.1-DT04-3P/S100 | TURCK - Your Global Automation Partner
Inductive Sensor For Use in Vehicle Electrical Systems

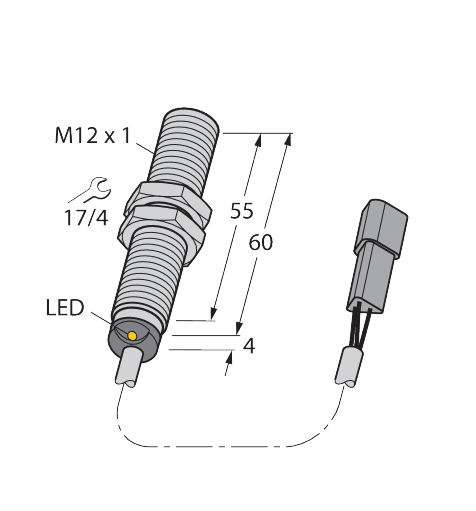

BI4-EM12E-AP45XLD-0.1-DT04-3P/S100
Order ID no. 1584037
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
100
Ambient temperature min. (°C)
-40
Approvals
E1 type approval
Cable length (m)
0.1
Connector type
Deutsch DT04-3P
Design
Threaded barrel
Electrical connection
Cable with connector
Housing diameter
⌀ 12 mm
Housing material
Stainless steel
Housing quality
1.4301 (AISI 304)
Mounting conditions
Flush
Operating voltage
DC
Protection class
IP68, IP69K
Quality active face
PA12-GF30
Rated switching distance (mm)
4
Special features
Commercial vehicle specification, Sn +
Switching element function
normally open NO
Switching frequency (kHz)
2
Key Features
Electrical connection
Cable with connector
Mounting conditions
Flush
Rated switching distance (mm)
4
home
Turck-Shop
Products
Sensors
Inductive Sensors
BI4-EM12E-AP45XLD-0.1-DT04-3P/S100
In Stock
Price Group
E1
List Price
705,78 zł
Item Total
7057,80 zł
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
