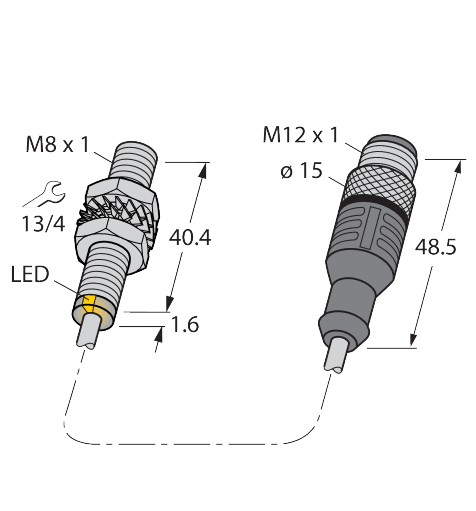

BIM-EG08-Y1X-2-RS4.21T/S90

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 1 G, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable color: Blue
Cable length (m): 2
Connector type: M12 x 1
Design: Threaded barrel
Electrical connection: Cable with connector
Housing diameter: ⌀ 8 mm
Housing material: Stainless steel
Housing quality: 1.4427 SO
Operating voltage: DC
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 78
Special features: Magnetic-inductive
Switching frequency (kHz): 1
