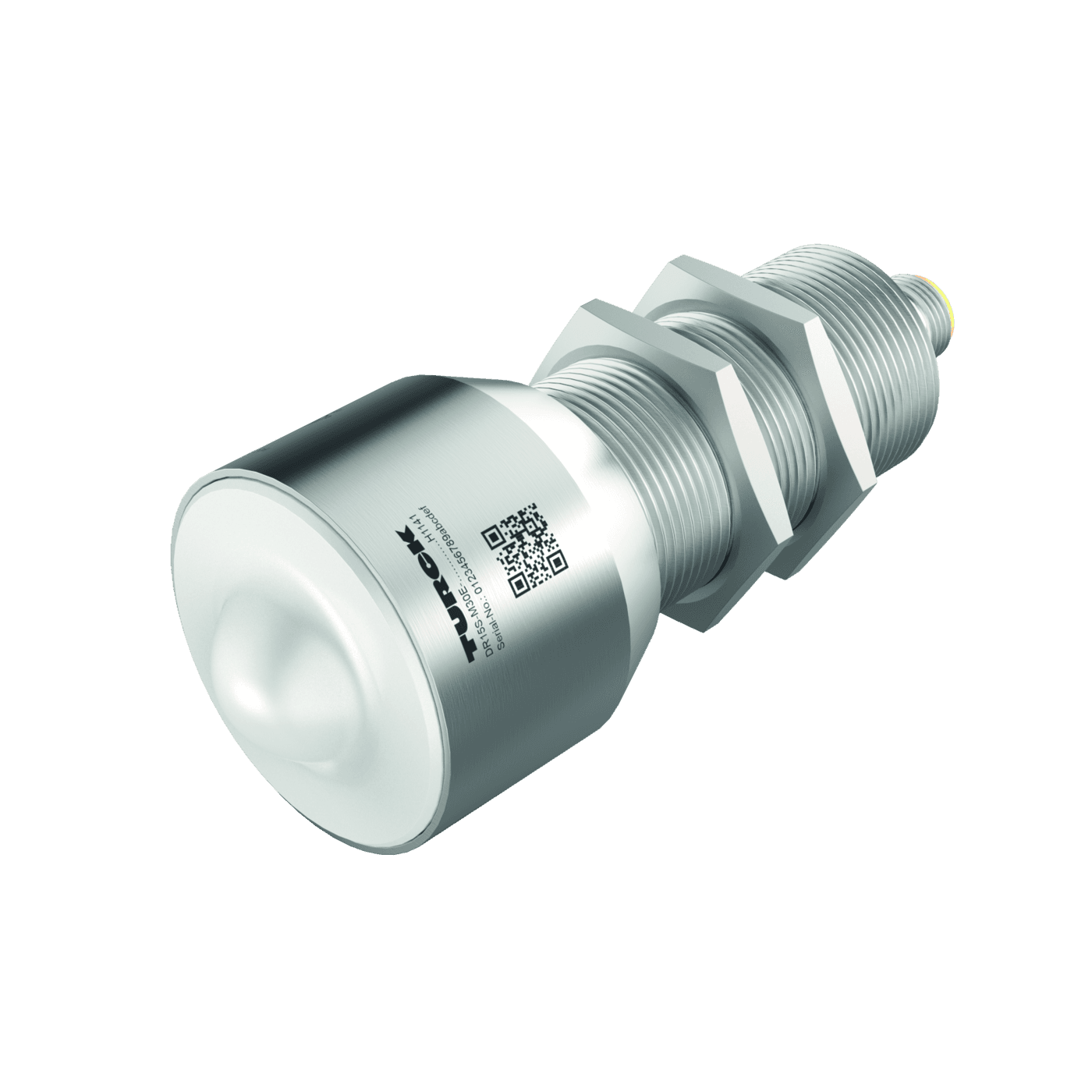

Radar Sensor Distance/Object Detection
DR15S-M30E-2UPN8X2-H1141
Order ID no. 100030149
In Stock
home
Turck-Shop
Products
Sensors
Radar Sensors
DR15S-M30E-2UPN8X2-H1141
Technical Data
Downloads
Ambient temperature max. (°C)
65
Ambient temperature min. (°C)
-25
Beam angle
15°
Communication protocol
IO-Link
Cone angle (°)
15
Connector type
M12 x 1
Design
Threaded barrel
Detection type
contactless

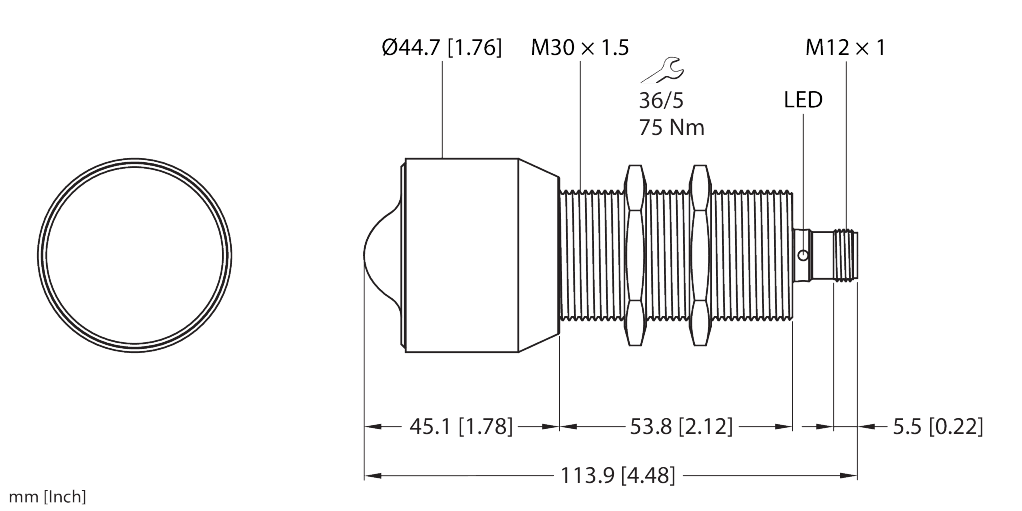

Dimensions (L x W x H)
113,9 mm
Electrical connection
Connector
Frequency range
122 - 123 GHz
Function
Distance measurement
Function
Radar scanner
Housing diameter
⌀ 44,7 mm
Housing material
Stainless steel
Housing quality
1.4401 (AISI 316), PTFE
Max. range (mm)
15000
Measuring principle
Radar
Operating voltage
DC
Protection class
IP67, IP69K
Resolution
1 cm
Switching element function
NO/NC programmable
Key Features
Electrical connection
Connector
Beam angle
15°
Max. range (mm)
15000
Price Group
G1
List Price
3125,02 zł
Item Total
3125,02 zł
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
