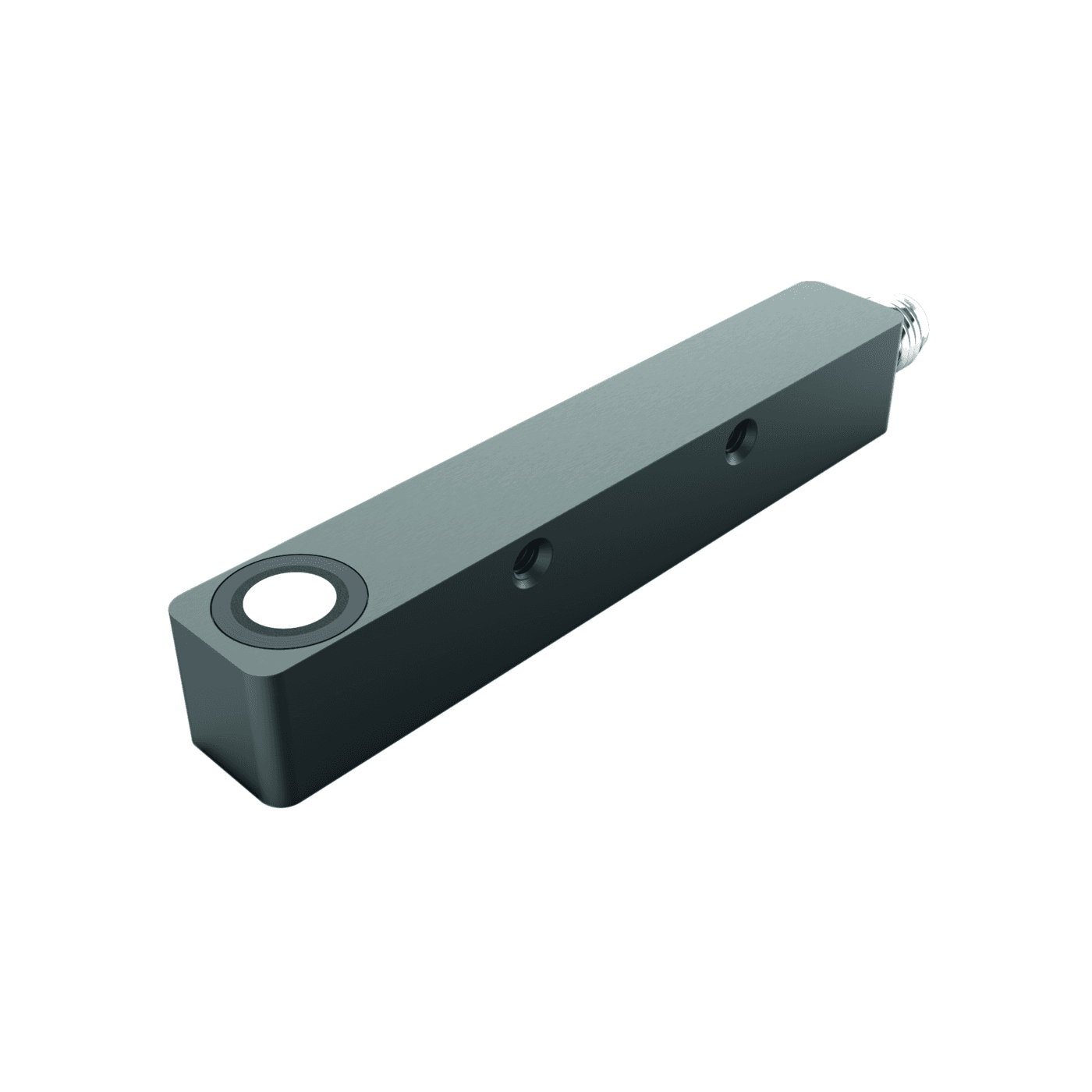

Ultrasonic sensor Diffuse-mode sensor
RU20U-Q12S-UN8X-V1141
Order ID no. 100005606
In Stock
home
Turck-Shop
Products
Sensors
Ultrasonic Sensors
RU20U-Q12S-UN8X-V1141
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
CE, cULus
Communication protocol
IO-Link
Connector type
M8 x 1
Design
Rectangular
Detection type
contactless

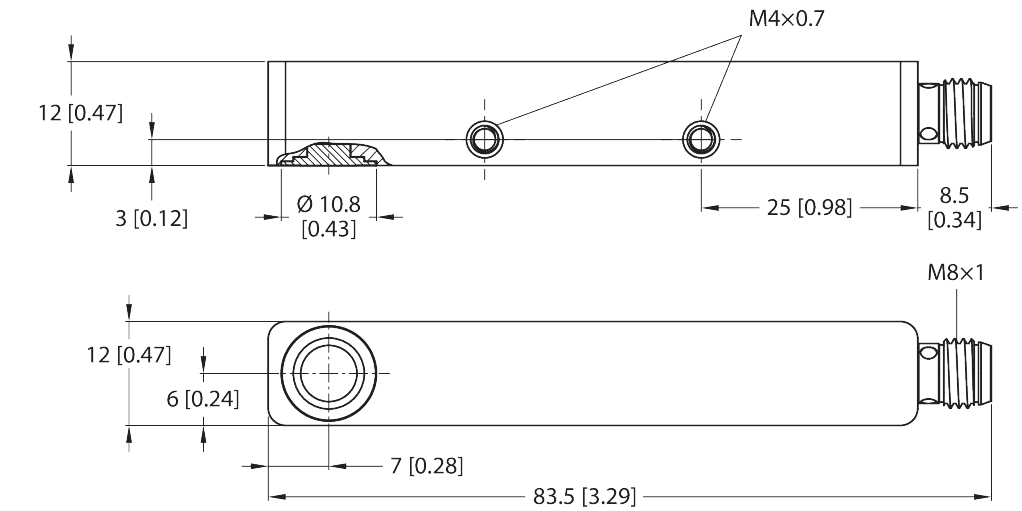

Dimensions (L x W x H)
82 mm x 12 mm x 12 mm
Electrical connection
Connector
Function
Proximity switch
Housing material
Metal
Housing quality
AL
Housing surface
Anodized
Max. range (mm)
200
Measuring principle
Ultrasonic
Medium
Bulk goods, liquids
Operating mode
Time-of-Flight
Protection class
IP67
Quality active face
Epoxy
Radiation direction
side
Resolution
1 cm
Setting option
IO-Link, Remote Teach
Special features
Compact
Switching element function
NO/NC
Key Features
Communication protocol
IO-Link
Electrical connection
Connector
Max. range (mm)
200
Price Group
D2
List Price
1003,64 zł
Item Total
1003,64 zł
Quantity
−
+
