RU40U-M18ES-LIU2PN8X2T-H1151 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

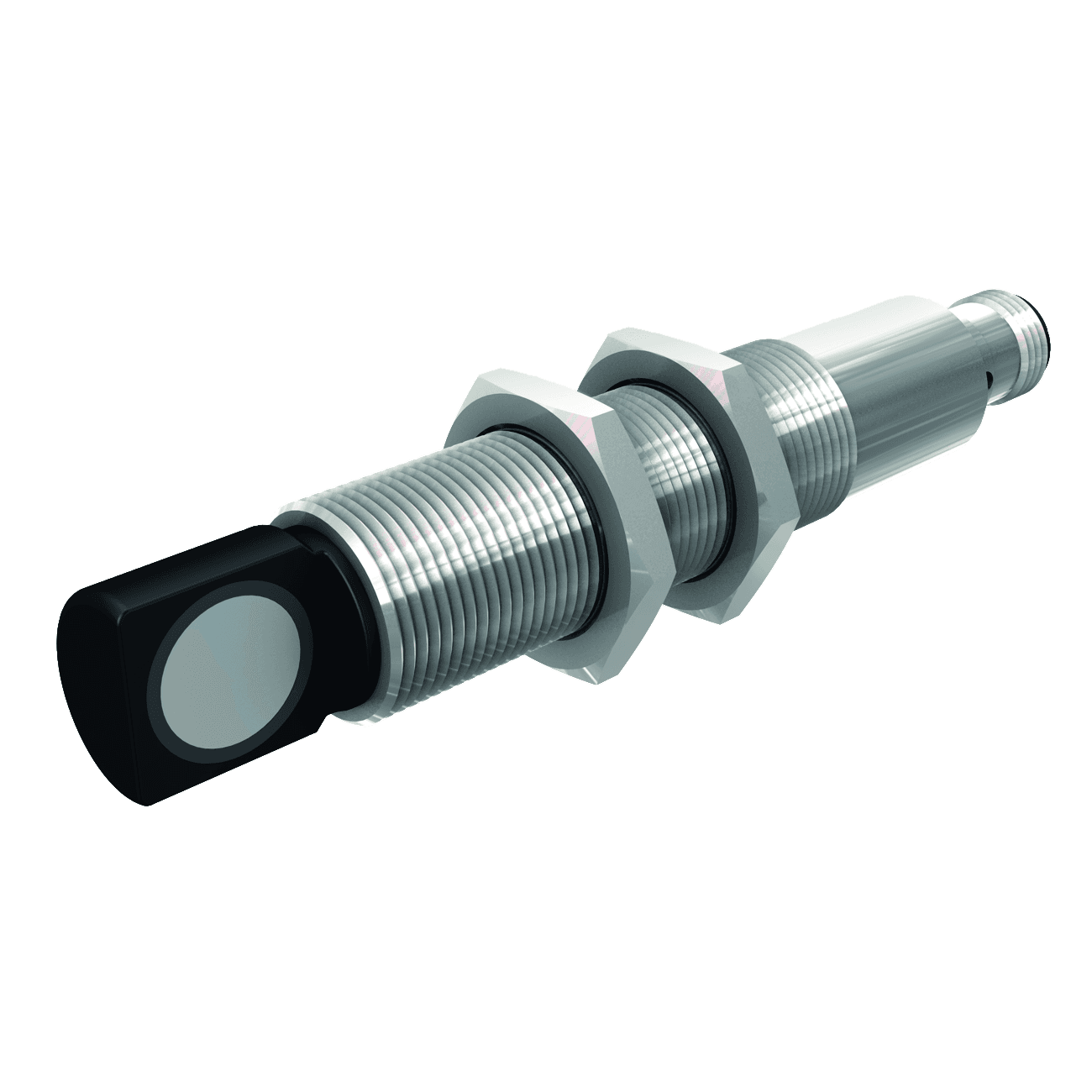

Ultrasonic sensor Diffuse-mode sensor
RU40U-M18ES-LIU2PN8X2T-H1151
Order ID no. 1610025
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
CE, cULus
Communication protocol
IO-Link
Connector type
M12 x 1
Design
Threaded barrel
Detection type
contactless

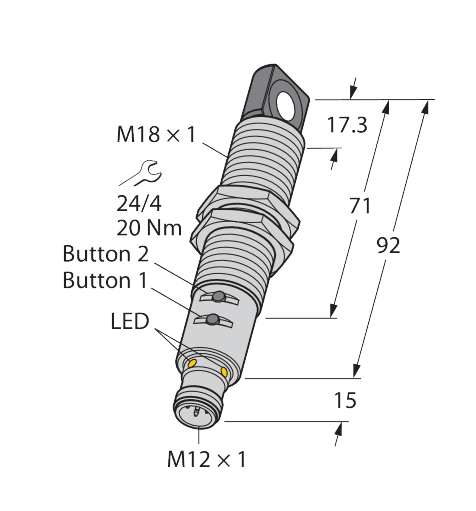

Dimensions (L x W x H)
107 mm
Electrical connection
Connector
Function
Continuous level measurement, Level detection
Function
Proximity switch
Housing diameter
⌀ 18 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Nickel Plated
Max. range (mm)
400
Measuring principle
Ultrasonic
Medium
Bulk goods, liquids
Operating mode
Time-of-Flight
Protection class
IP67
Quality active face
Epoxy
Radiation direction
side
Resolution
0.5 mm
Setting option
IO-Link, Push Button, Remote Teach
Special features
Pushbutton, Synchronization
Switching element function
NO/NC
Key Features
Communication protocol
IO-Link
Electrical connection
Connector
Max. range (mm)
400
