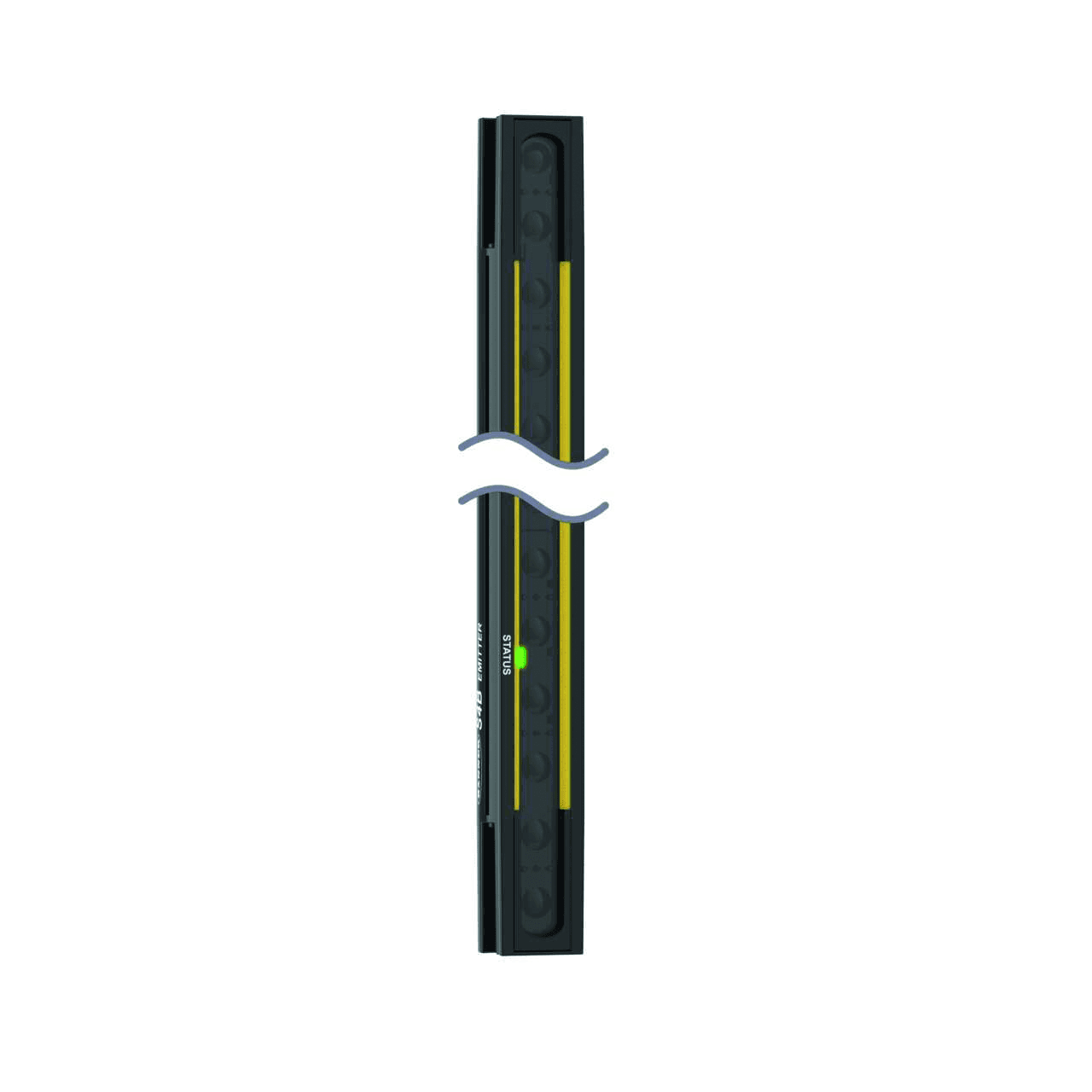

Safety Light Curtain
S4BE30-750-S
Order ID no. 3812379
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cascadable
Yes
Electrical connection
Connection cable
Design
With display
Scan field (mm)
750

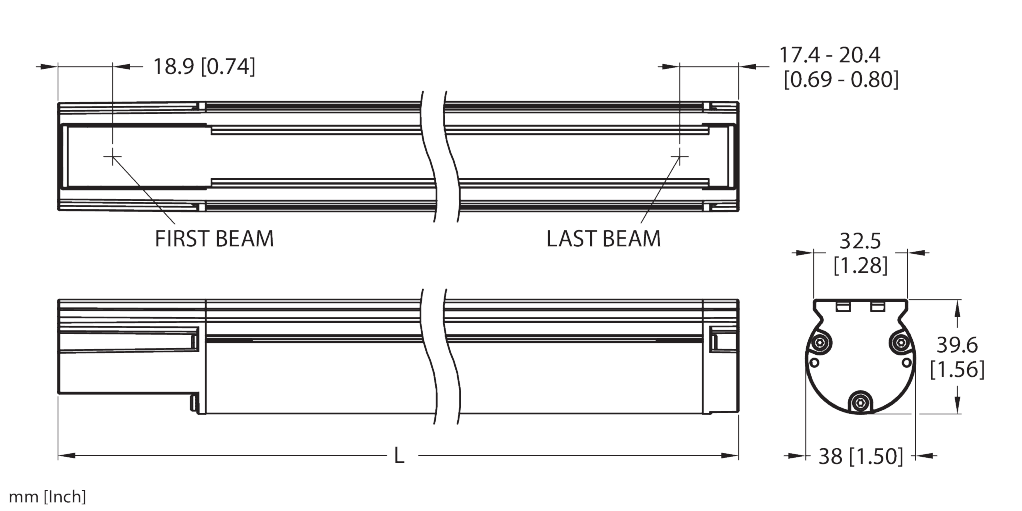

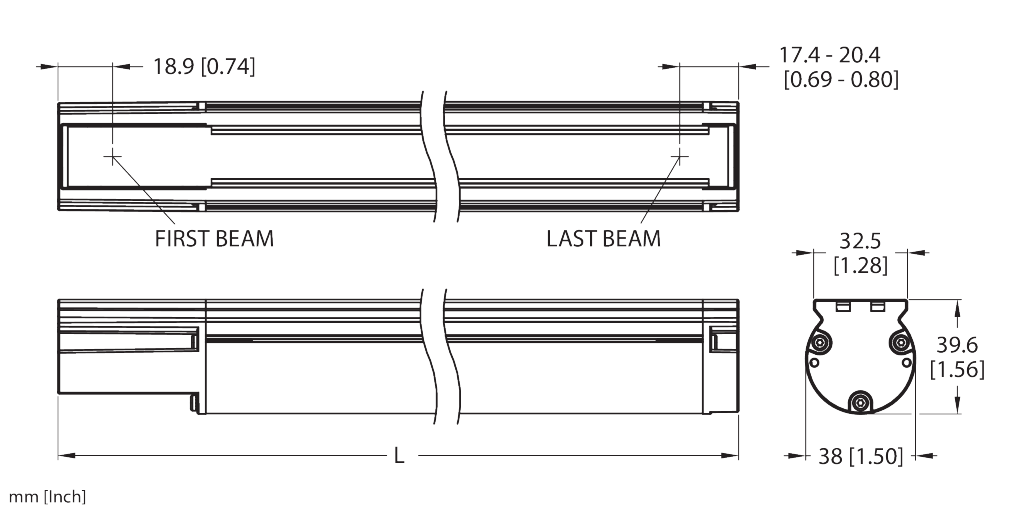

Dimensions (L x W x H)
759 mm x 38 mm x 39,6 mm
Housing material
Aluminum/plastic/die-cast zinc
Housing quality
Anodized AL
Light type
IR
Start/Restart interlock
adjustable
Function
Light screen
Optical resolution (mm)
30
Protection class
IP65
Max. range (mm)
12000
Wavelength (nm)
860
With muting function
Yes
Key Features
Cascadable
Yes
Scan field (mm)
750
Optical resolution (mm)
30
In Stock
Price Group
J1
List Price
€879.00
