Magnetic Field Sensors

BIM magnetic field sensors from TURCK ensure precise, non-contact detection of piston positions in pneumatic cylinders. Thanks to their universal designs and easy installation in C- or T-slots, they can be flexibly integrated into a wide variety of machine designs. The wear-free technology ensures short cycle times, reliable end-position detection, and high system availability. The product portfolio is complemented by an extensive range of accessories, as well as SIL-certified variants and models designed for use in potentially explosive atmospheres.

For which applications is this product family particularly well-suited?

• Position detection for pneumatic cylinders
• T-Groove and C-Groove cylinders
• All standard profile and tie rods, such as smooth-tube cylinders


TURCK’s WIM position sensors for T-slot pneumatic cylinders enable precise, wear-free position detection directly on the pneumatic cylinder. Installation takes just a few simple steps. With measuring ranges from 32 to 256 mm and output signals of 0…10 V, 4…20 mA, or IO-Link, the sensors are suitable for a wide range of automation tasks. The compact housing ensures easy integration even in tight installation spaces.

For which applications is this product family particularly well-suited?

• Dancer survey and film tension
• Measuring the screw-in or press-in depth
• Monitoring the punching depth


BIM magnetic field sensors from TURCK stand out for their versatility. Available in the proven M8 and M12 housings, they are suitable for both standard automation tasks and demanding applications. Whether for reliable pig detection in the process industry or as a high-performance proximity sensor with detection ranges of up to 90 mm—these sensors offer precise and reliable detection. For applications with heightened safety requirements, SIL-certified variants and versions for use in hazardous areas are available. Thanks to their robust technology, Turck’s magnetic field sensors ensure a high level of operational safety in a wide variety of industrial environments.

For which applications is this product family particularly well-suited?

• Tracking newts in pipeline systems
• Open/close detection for high-speed roll-up doors

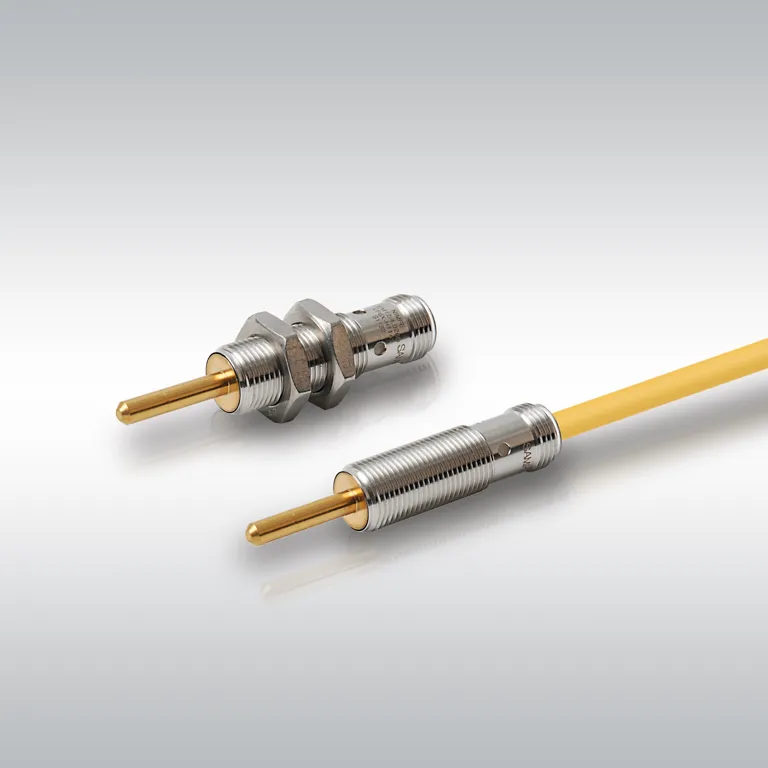

TURCK’s NIMFE weld nut sensors ensure reliable presence detection of weld nuts, sleeves, and other ferromagnetic components in automated manufacturing processes. The sensor also serves as the mounting bolt, thereby reducing installation effort. Thanks to its robust design, IP67 protection rating, and the option to use stainless steel centering sleeves, it is ideally suited for harsh industrial environments. Four LEDs enable rapid status and error diagnosis for maximum process reliability and minimal scrap rates.

For which applications is this product family particularly well-suited?

• Presence check of weld nuts, sleeves, and ferromagnetic components
• Component clamping in automated body manufacturing

CMMT offers a particularly versatile form of condition monitoring: The condition monitoring sensor detects changes in the magnetic field along three axes, calculates the vector sum, and also measures temperature. This allows for contactless detection of movements, rotation, or changes in the state of magnetic components—even in locations where optical sensors have no line of sight. IO-Link, the Smart Sensor Profile, and the TAS Magnetic Field Monitor simplify visualization and parameterization. This creates new diagnostic possibilities for motors, processes, and hidden movements with minimal integration effort.

For which applications is this product family particularly well-suited?

• Noncontact detection of rotation or movement of concealed metal objects
• Retrofit monitoring for processes where optical detection is not possible
