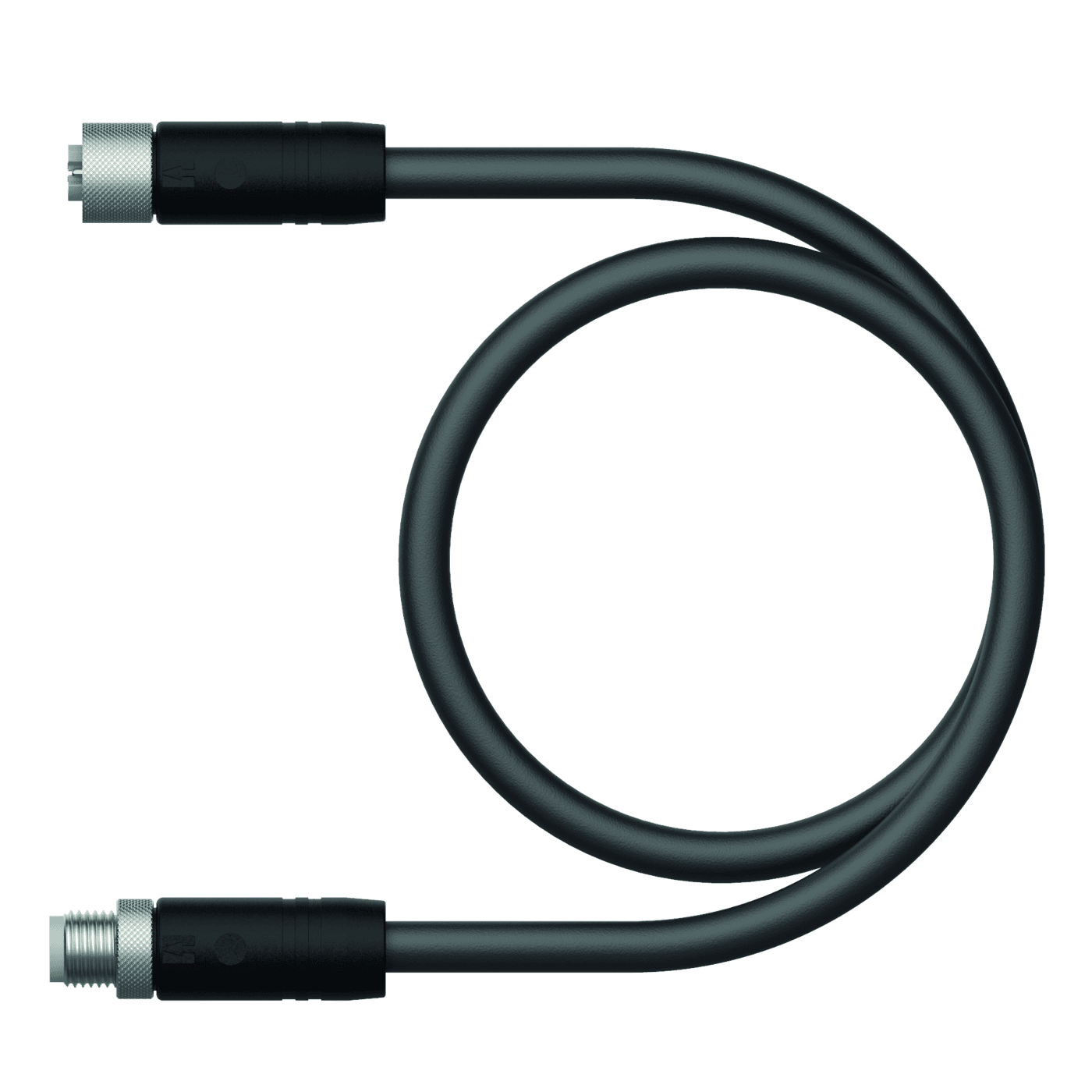

Supply Cable - M12 Power

RKS56PKB-10-RSS56PKB/TXL

Order ID no. 100023983

Cable length (m): 10
Application: Power
Design: Extension Cable

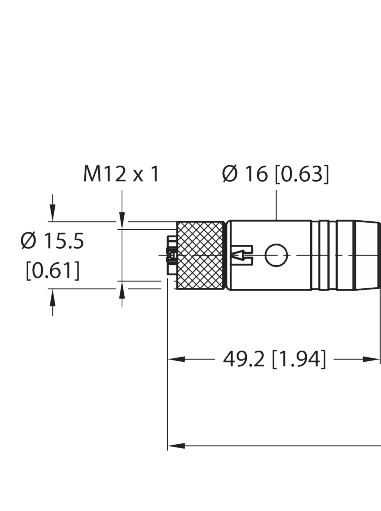

Connector A: Female, M12 × 1, Straight, K-coded
Number of pins: 4+PE
Coupling nut/screw material A: Brass

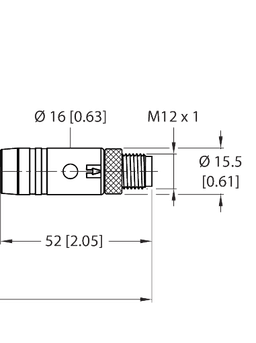

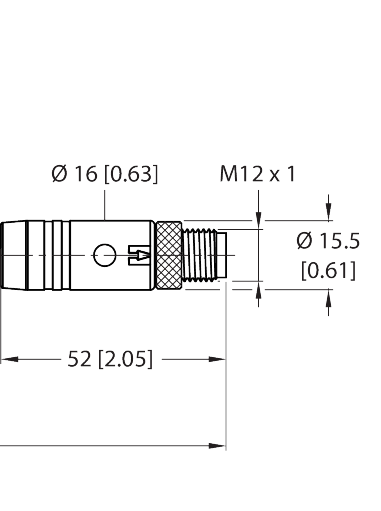

Connector B: Male, M12 × 1, Straight, K-coded
Number of Pins: 4+PE
Coupling nut/screw material B: Brass
Voltage (V): 600
Current (A): 16
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 80
Core cross-section (mm²): 1.5
Number of Conductors: 5
Cable diameter (mm): 10.4
Plug body: Plastic
