VAS04-K81E-1-WSC5T/TEL | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

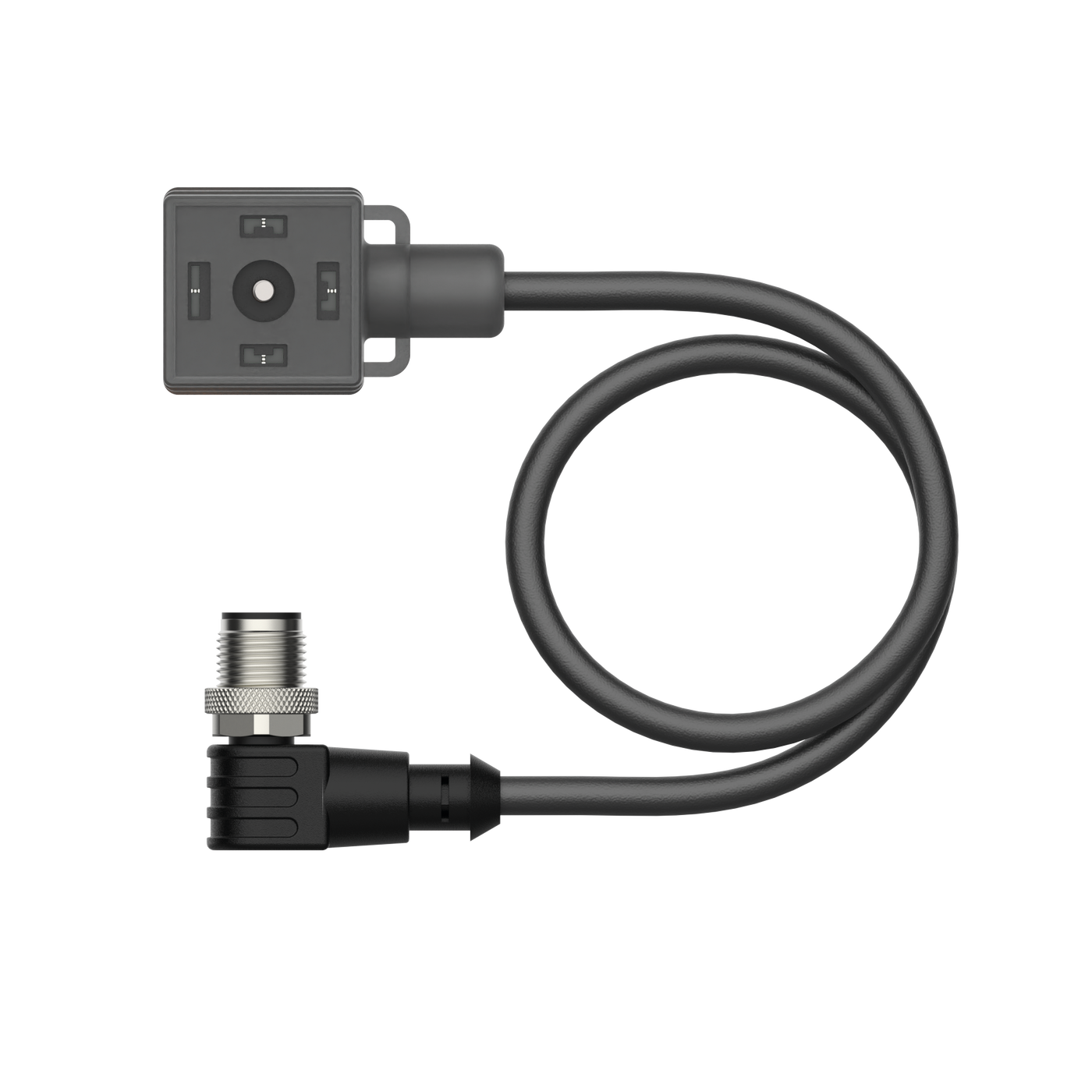

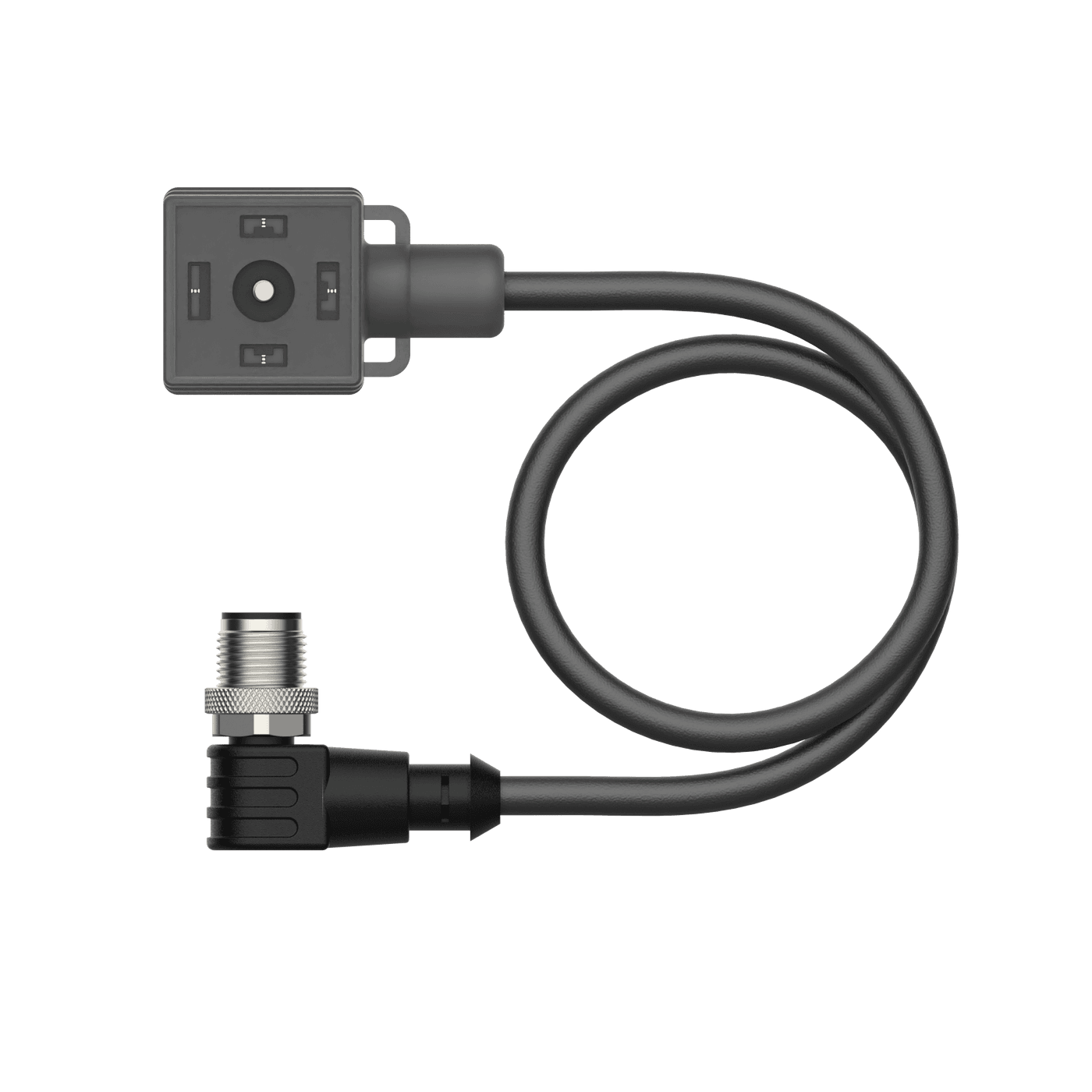

Valve connector A type Extension Cable
VAS04-K81E-1-WSC5T/TEL
Order ID no. 6606812
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
0
Application
Signal
Cable color
Black
Cable diameter (mm)
5.3
Cable length (m)
1
Cable quality
PVC
Core cross-section (mm²)
0.34
Coupling nut/screw material B
Brass
Current (A)
4
Design
Extension Cable
Number of pins
3+PE
Number of Pins
4+PE
Plug body
Plastic
Protective component
without protective circuitry
Voltage (V)
24
Key Features
Cable length (m)
1
Cable quality
PVC
In Stock
Price Group
K2
List Price
22,80 €
