Actuator and Sensor Cable, PUR

WSS4.4T-2/TXL

Order ID no. 6626342

Item Total€21.10

Quantity

Cable length (m): 2
Application: Signal
Design: Connection Cable

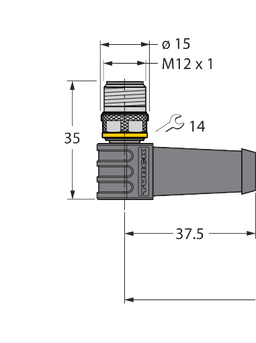

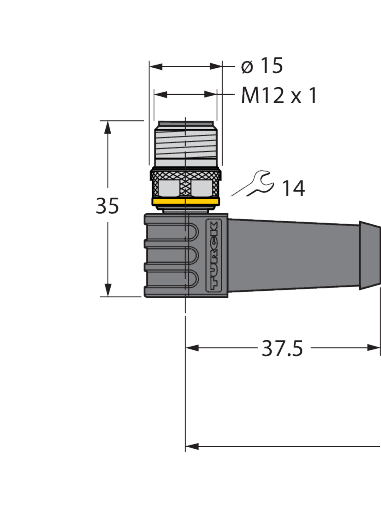

Connector A: Male, M12 × 1, Angled, A-coded
Number of pins: 4
Coupling nut/screw material A: Brass
Voltage (V): 250
Current (A): 4
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Core cross-section (mm²): 0.34
Number of Conductors: 4
Cable diameter (mm): 5.3
Plug body: Plastic
