Actuator and Sensor Cable, PUR

RSS4.5T-15/TXL

Order ID no. 6627730

Cable length (m): 15
Application: Signal
Design: Connection Cable

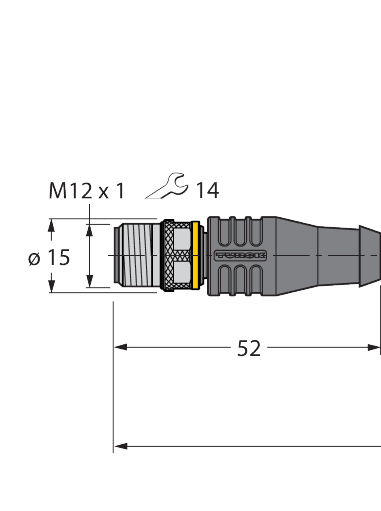

Connector A: Male, M12 × 1, Straight, A-coded
Number of pins: 5
Coupling nut/screw material A: Brass
Voltage (V): 60
Current (A): 4
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Core cross-section (mm²): 0.34
Number of Conductors: 5
Cable diameter (mm): 5.7
Plug body: Plastic
