Actuator and Sensor Cable, PUR

RKSV8T-30-WSSV8T/TXL

Order ID no. 6636069

Cable length (m): 30
Application: Signal
Design: Extension Cable

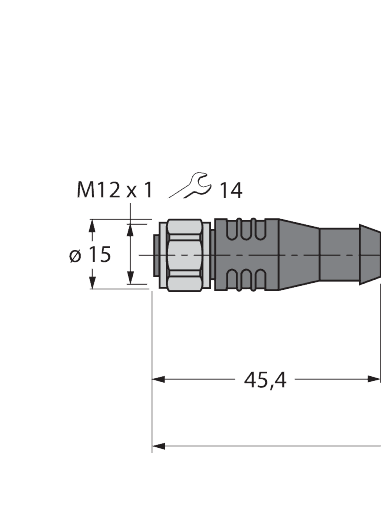

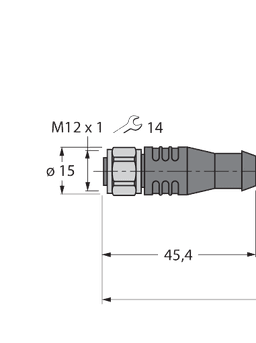

Connector A: Female, M12 × 1, Straight, A-coded
Number of pins: 8
Coupling nut/screw material A: Stainless Steel

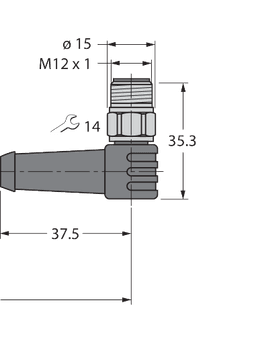

Connector B: Male, M12 × 1, Angled, A-coded
Number of Pins: 8
Coupling nut/screw material B: Stainless Steel
Voltage (V): 30
Current (A): 2
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Core cross-section (mm²): 0.25
Number of Conductors: 8
Cable diameter (mm): 6.3
Plug body: Plastic
