JRBS-40-8C/EX

JRBS-40-8C/EX

Thumbnail for JRBS-40-8C/EX

Thumbnail for JRBS-40-8C/EX

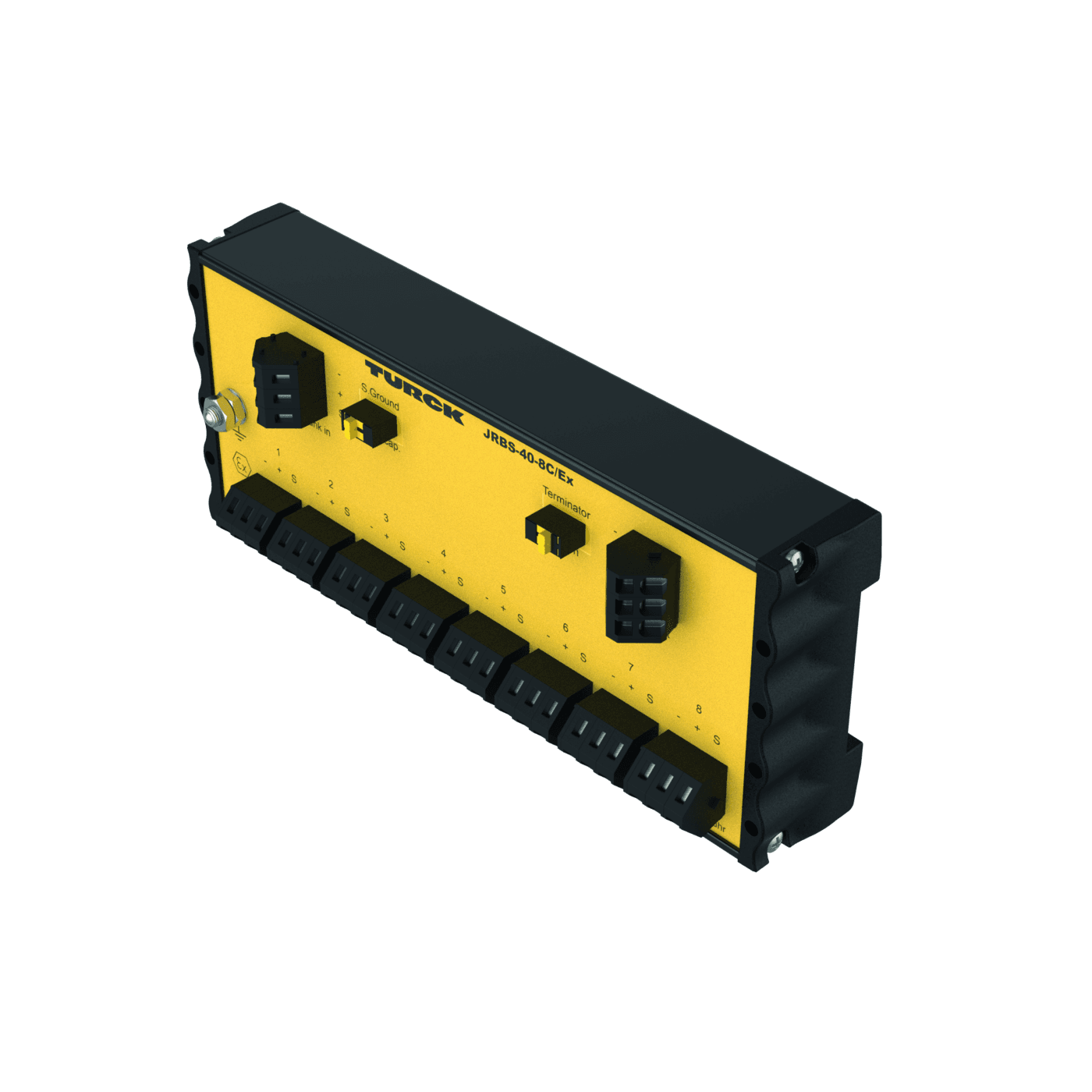

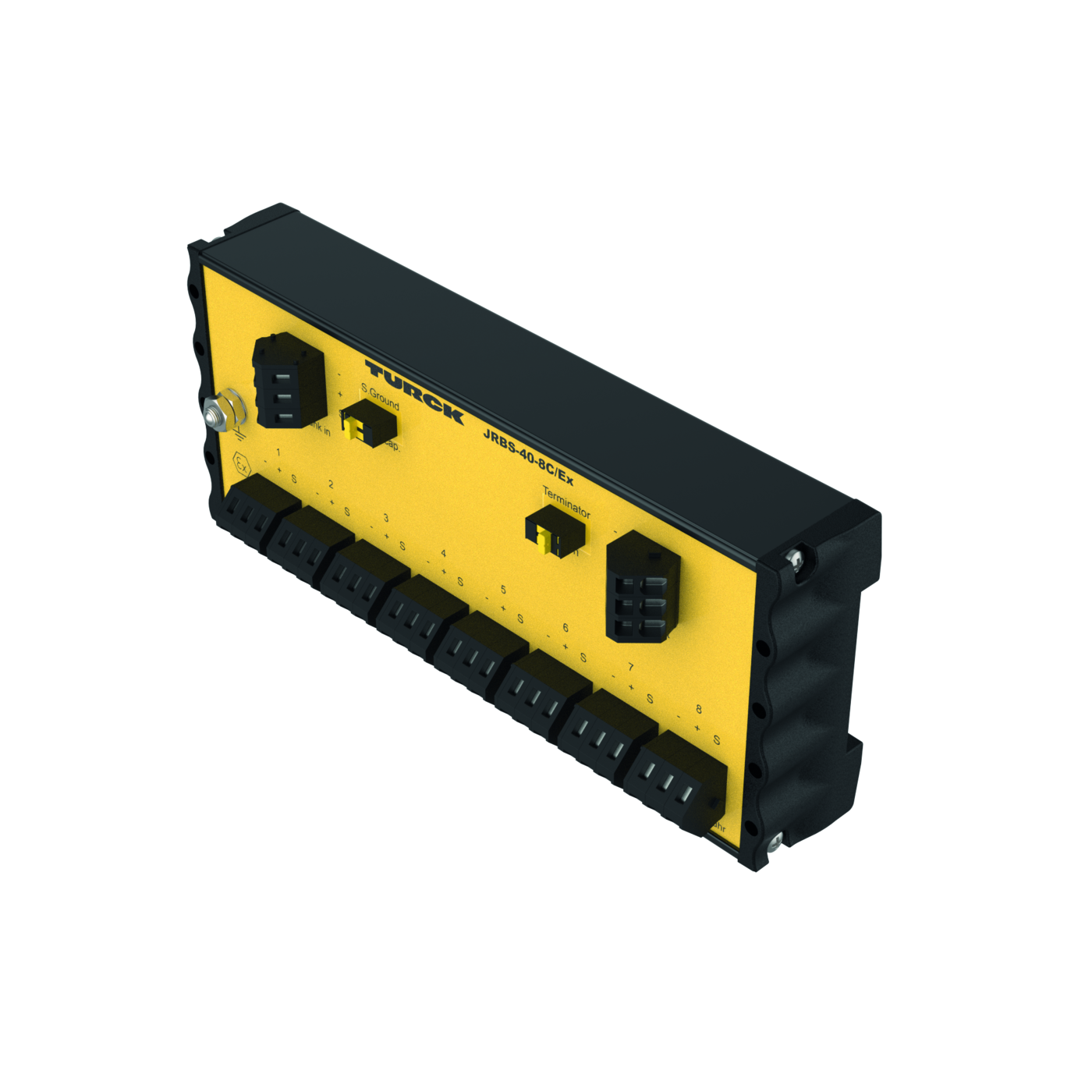

IP20 Junction Box, 8-Channel FOUNDATION Fieldbus and PROFIBUS-PA

JRBS-40-8C/EX

Order ID no. 6611450

In Stock
Price Group	K3
List Price	205,60 €

Item Total205,60 €

Quantity

Contact Support

homeHome
Loading...

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Application: Data
Approvals: ATEX, Ex-Approval
Connection technology signal: Cage clamp terminal

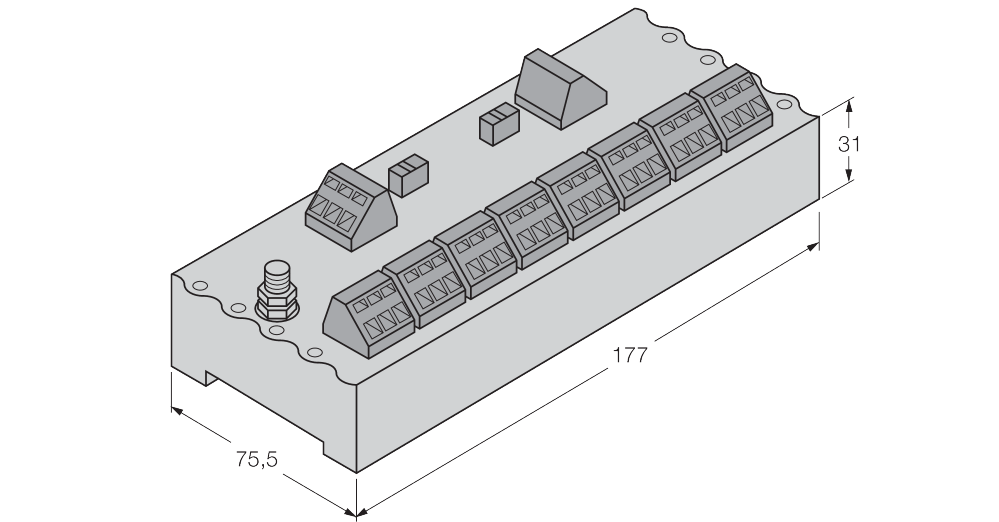

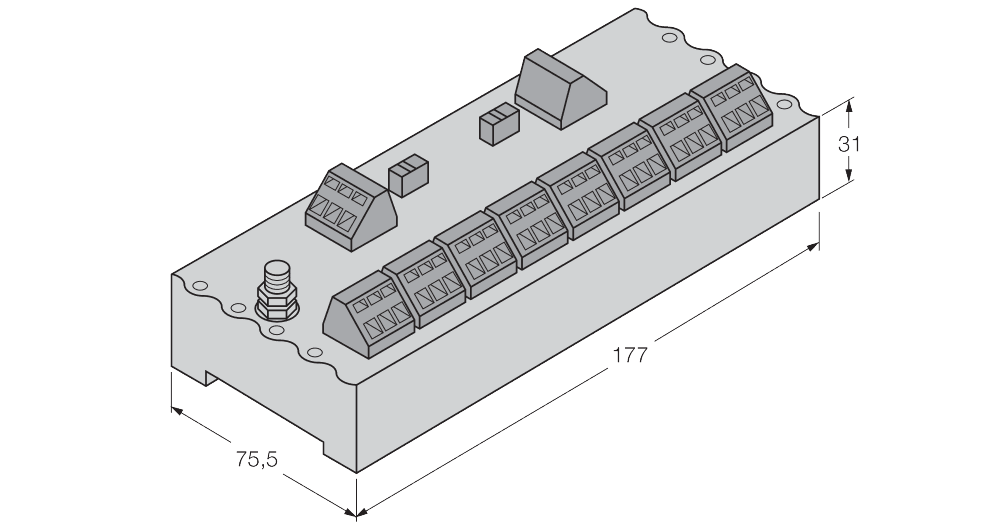

Dimensions (L x W x H): 31 mm x 177 mm x 75,5 mm
Electrical connection: Spring type terminals
Housing material: Aluminium
Installation area: non-Ex, zone 1, zone 2
Network protocol: FOUNDATION fieldbus, PROFIBUS-PA
Number of channels: 8
Product type: Passive fieldbus junction box
Protection class: IP20
