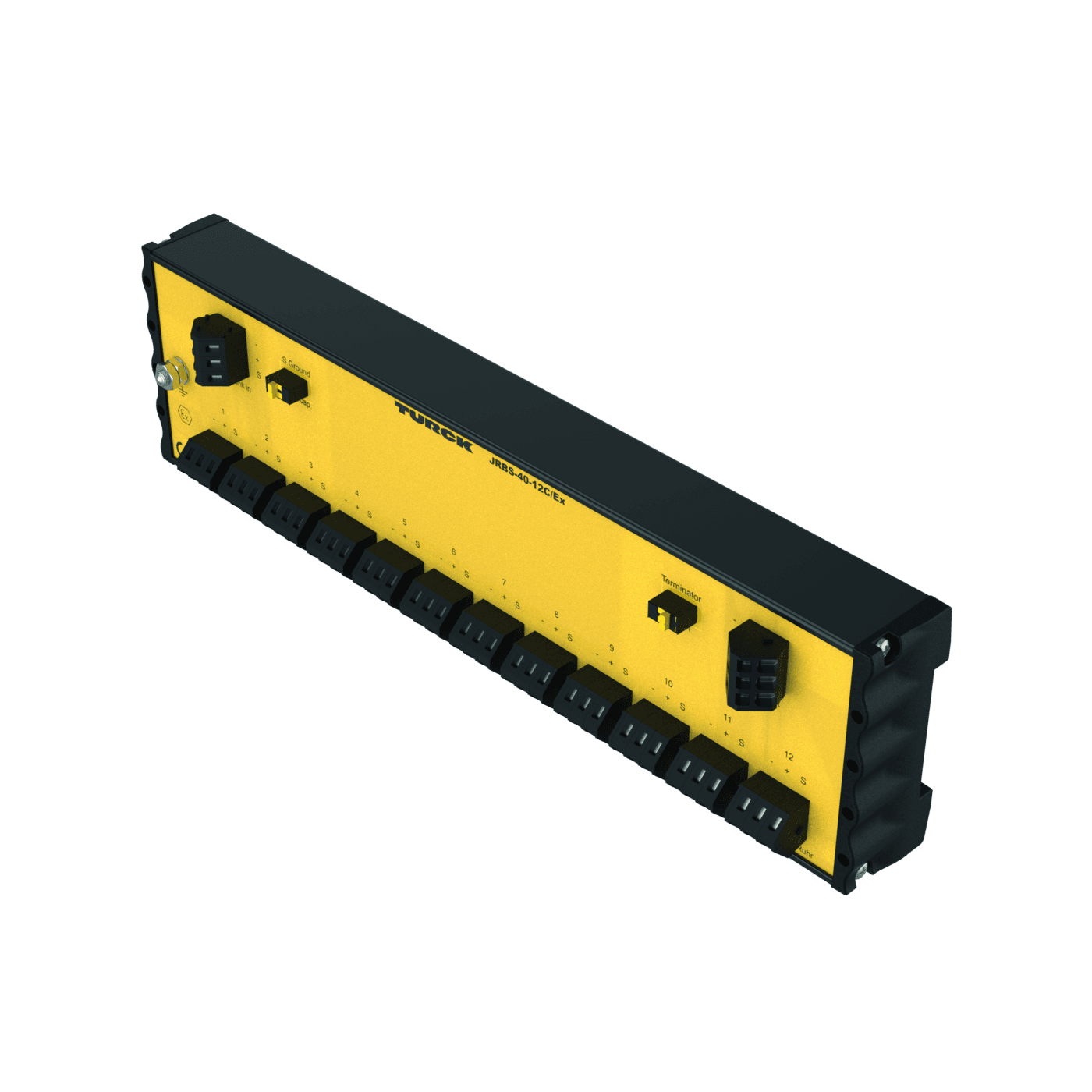

IP20 Junction Box, 12-Channel
JRBS-40-12C/EX
Order ID no. 6611454
In Stock
home
Turck-Shop
Products
Connectivity
Passive Junction Boxes
JRBS-40-12C/EX
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, Ex-Approval
Electrical connection
Spring type terminals
Connection technology signal
Cage clamp terminal
Application
Data

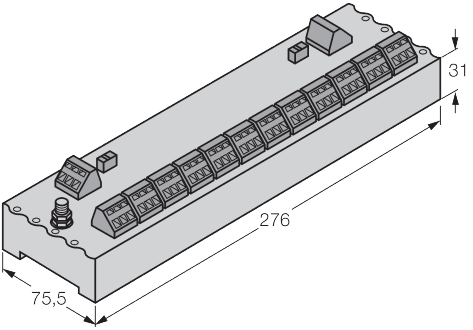

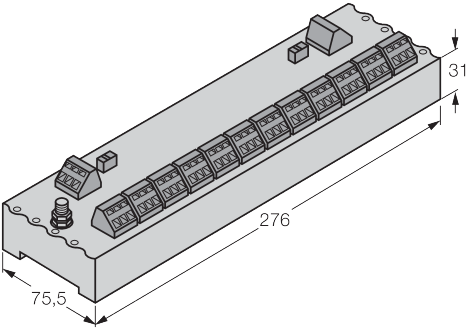

Dimensions (L x W x H)
31 mm x 276 mm x 75,5 mm
Network protocol
FOUNDATION fieldbus, PROFIBUS-PA
Housing material
Aluminium
Installation area
zone 1, zone 2, non-Ex
Number of channels
12
Product type
Passive fieldbus junction box
Protection class
IP20
Price Group
K3
List Price
€277.40
Item Total
€277.40
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
