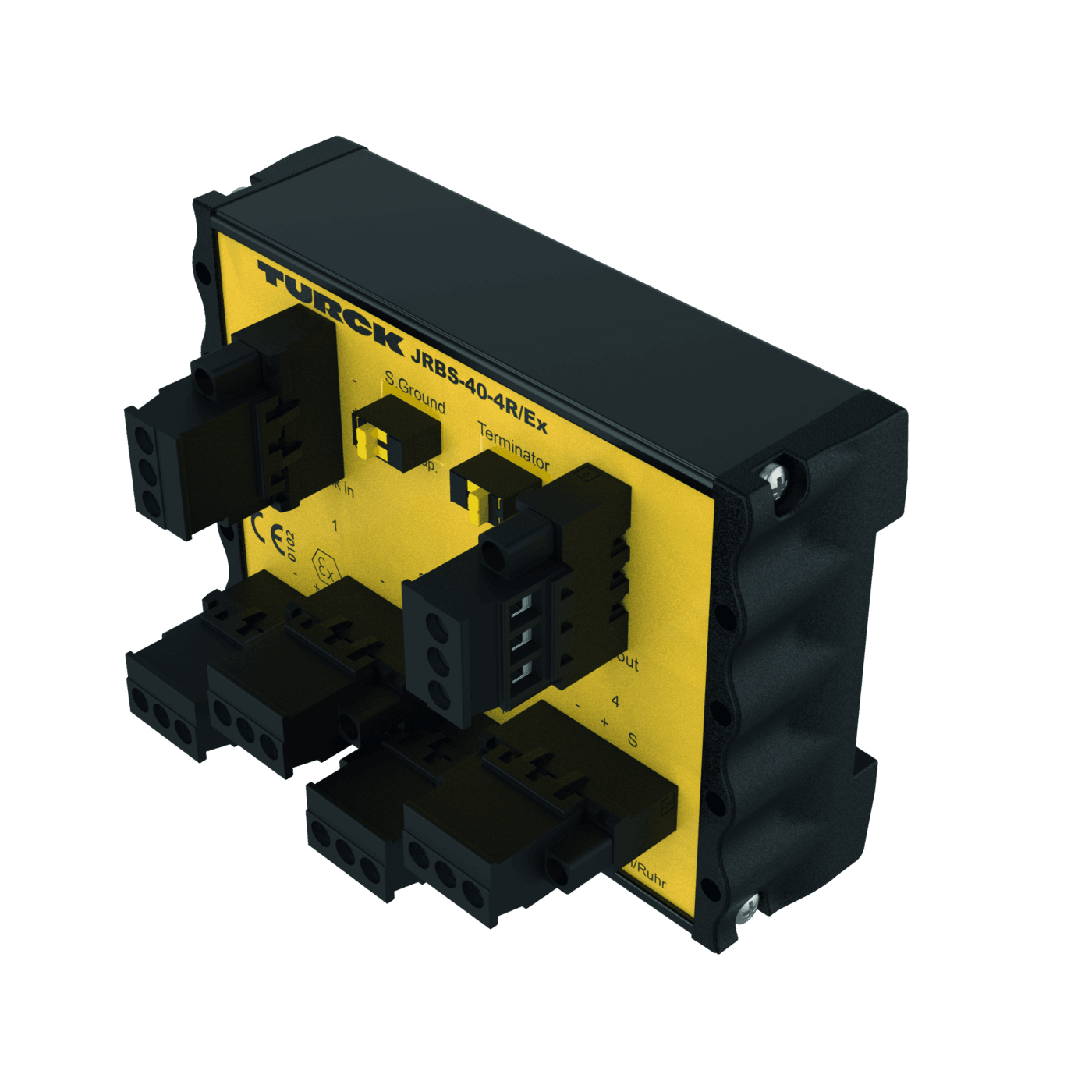

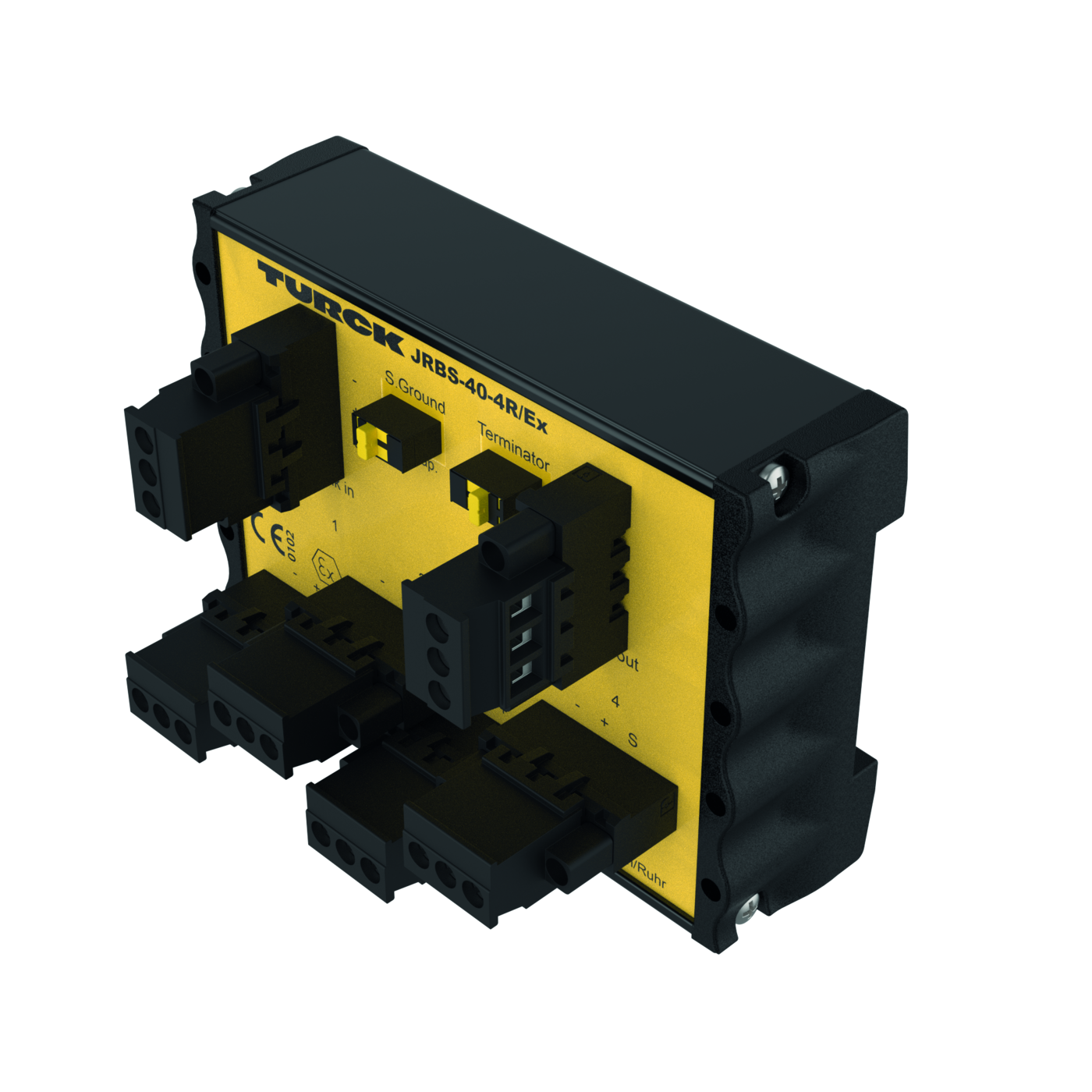

IP20 Junction Box, 4-Channel FOUNDATION Fieldbus and PROFIBUS-PA

JRBS-40-4R/EX

Order ID no. 6611456

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Application: Data
Approvals: ATEX, Ex-Approval
Connection technology signal: Screw terminal
Dimensions (L x W x H): 31 mm x 107 mm x 75,5 mm
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Housing material: Aluminium
Installation area: non-Ex, zone 1, zone 2
Network protocol: FOUNDATION fieldbus, PROFIBUS-PA
Number of channels: 4
Product type: Passive fieldbus junction box
Protection class: IP20
