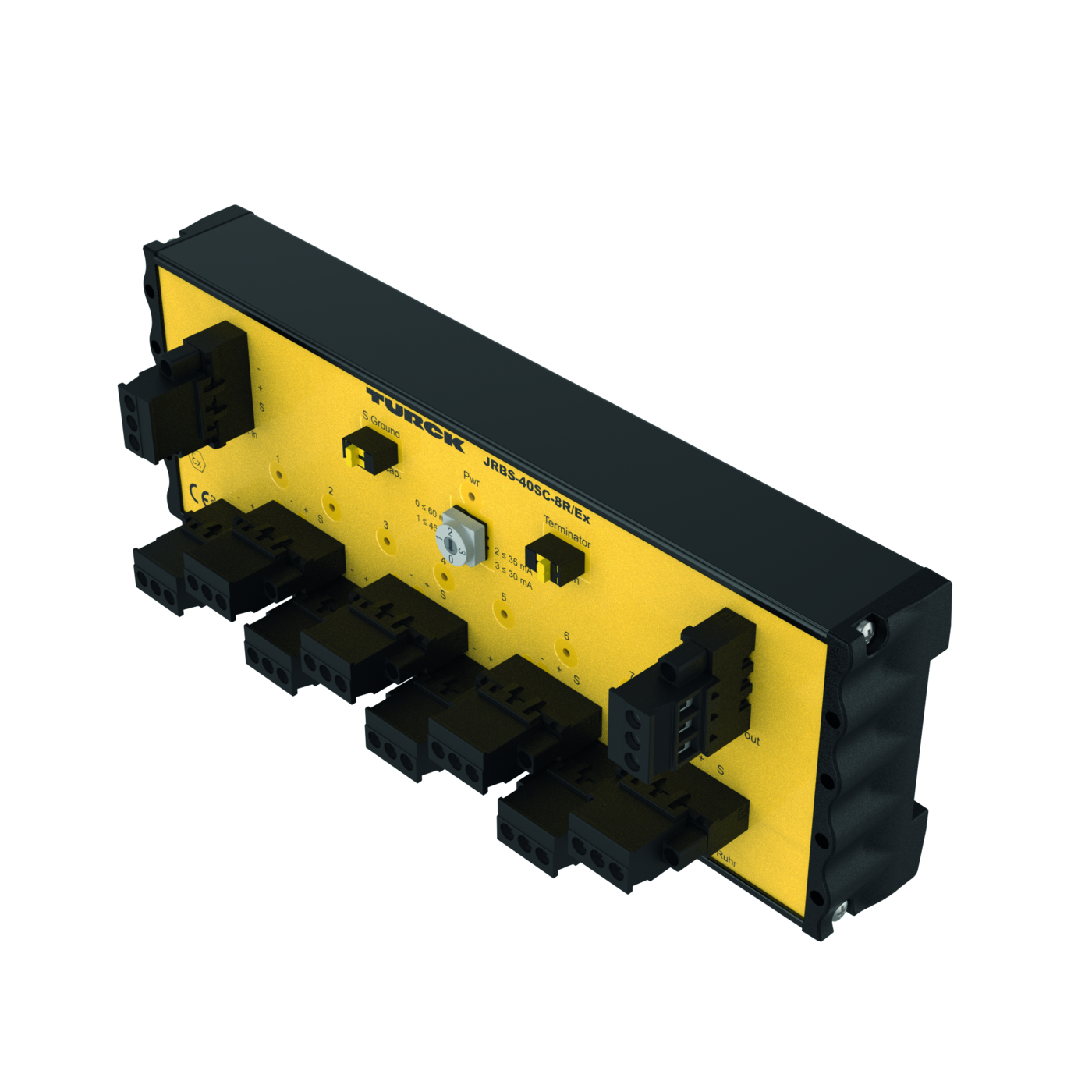

IP20 Junction Box, 8-Channel

JRBS-40SC-8R/EX

Order ID no. 6611461

Item Total€342.50

Quantity

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX, Ex-Approval
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Connection technology signal: Screw terminal
Application: Data

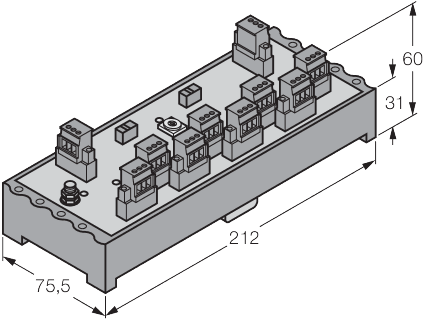

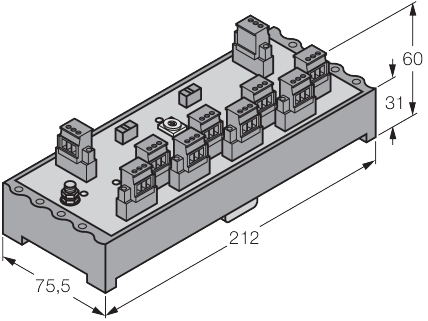

Dimensions (L x W x H): 31 mm x 212 mm x 75,5 mm
Network protocol: FOUNDATION fieldbus, PROFIBUS-PA
Housing material: Aluminium
Installation area: zone 1, zone 2, non-Ex
Number of channels: 8
Product type: Active fieldbus junction box
Protection class: IP20
