Multibarrier, 4-Channel

MBD40-T0415/EX/000

Order ID no. 6611757

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -20
Approvals: ATEX
Electrical connection: 4 x 3-pin removable terminal blocks, reverse polarity protected, screw terminal, Cable gland
Connection technology signal: Cable gland
Application: Data

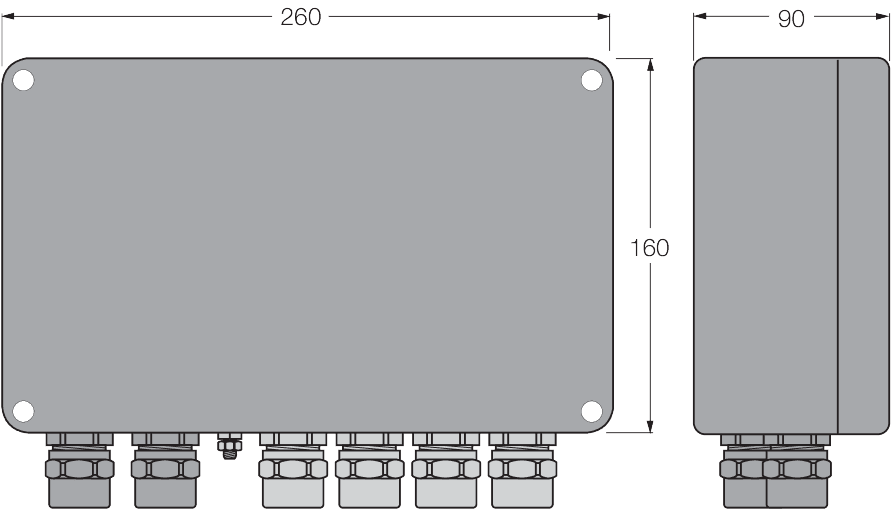

Dimensions (L x W x H): 160 mm x 260 mm x 90 mm
Network protocol: FOUNDATION fieldbus, PROFIBUS-PA
Housing material: Powder-coated die-cast aluminium
Installation area: zone 1
Number of channels: 4
Product type: Multibarrier
Protection class: IP66
