TB-8M8Z-3P2-5

TB-8M8Z-3P2-5

Thumbnail for TB-8M8Z-3P2-5

Thumbnail for TB-8M8Z-3P2-5

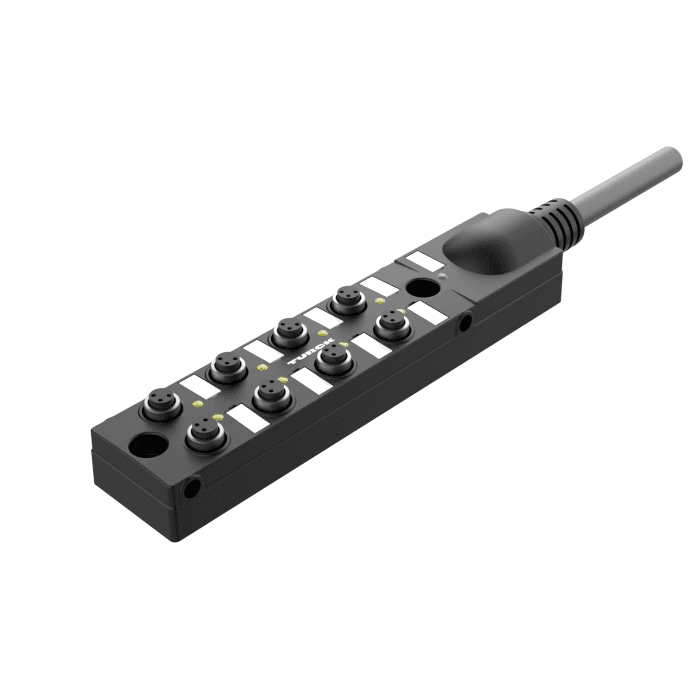

Passive Actuator/Sensor Junction Box, 8 Ports

TB-8M8Z-3P2-5

Order ID no. UX00415

In Stock
Price Group	K1
List Price	€185.80

Item Total€185.80

Quantity

Contact Support

homeHome
Loading...

Cable length (m): 5
Application: Signal
Number of pins: 3
Voltage (V): 30
Cable quality: PVC
Cable color: Black
Special features: LED
Approvals: CE, RoHS
Ambient temperature min. (°C): 5
Ambient temperature max. (°C): 85
Number of Ports: 8
Port: Ø 8 mm
Group terminal: Cable
Number of Conductors: 10
Cable diameter (mm): 6.6
Overall shield: Drain, Foil
Homerun Exit Location: Side output

Key Features

Group terminal: Cable
Port: Ø 8 mm
Number of Ports: 8
