- Protection class
- IP65
- Network protocol
- Modbus TCP, EtherNet/IP, PROFINET
- Approvals
- ATEX Zone 2/22, cULus, IECEx, CCC
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 70
- Number of channels
- 16
- Installation area
- zone 2, zone 22
- Connection technology Ethernet
- 2 × M12, 8-pin, X-coded, 8 × M12, 4-pin, D-coded
- Number of Ethernet ports
- 10 ports
- Transmission rate Ethernet
- 10/100/1000 Mbps

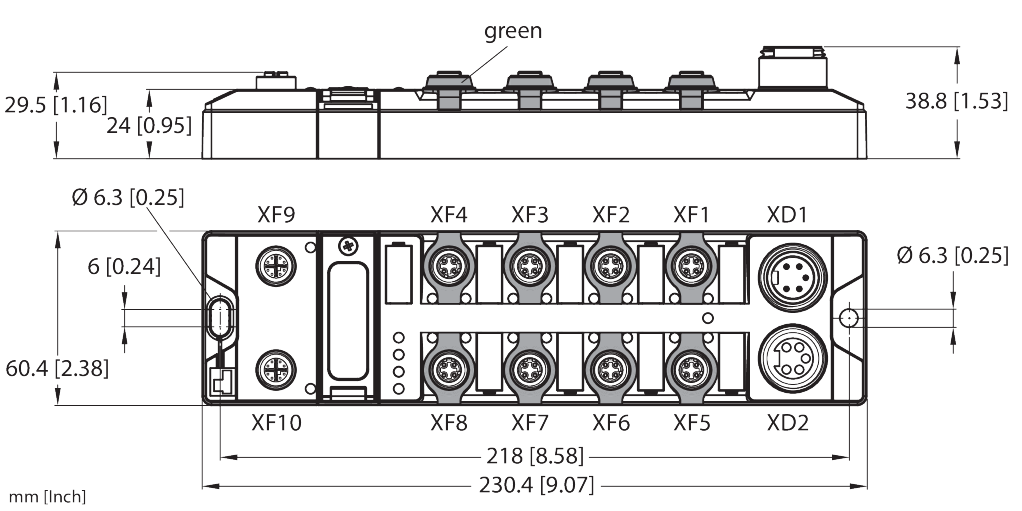

- Dimensions
- 230,4 mm x 60,4 mm x 38,8 mm
- Voltage supply connection
- 7/8″, 5-pin
- Device type
- Ethernet switch
- Function
- Managed
