- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- ATEX Zone 2/22, cULus, IECEx, CCC
- Connection technology signal
- M12

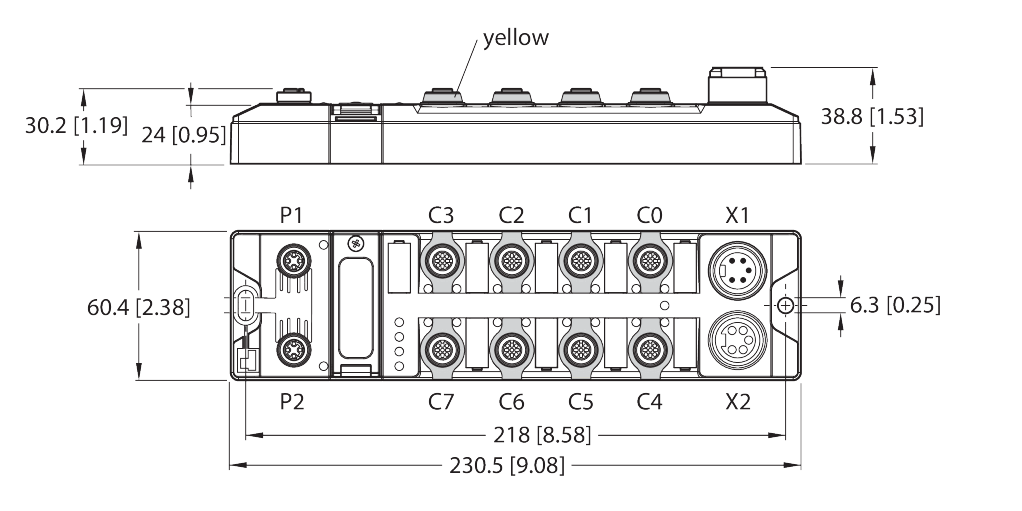

- Dimensions (L x W x H)
- 230,5 mm x 60,4 mm x 38,8 mm
- Network protocol
- PROFIsafe via PROFINET
- Fieldbus connection technology
- 2 x M12, 4-pin, D-coded
- Fieldbus transmission rate
- 100 Mbps
- Installation area
- zone 2, zone 22
- Number of channels
- 16
- Voltage supply connection
- 7/8″, 5-pin
- Product type
- I/O Module, Compact station
- Protection class
- IP65, IP67, IP69K
- PL acc. to EN ISO 13849-1
- Level e
- SIL acc. to IEC 61508
- 3
- Category acc. to ISO 13849-1:2008
- 4
- Signal type
- Fail-safe inputs, Fail-safe inputs and outputs
