- Protection class
- IP20
- Network protocol
- Modbus TCP, PROFINET, EtherNet/IP
- Approvals
- cULus
- Electrical connection
- Screw terminals
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 70
- Input type
- PNP
- Output type
- PNP
- Number of channels
- 16
- Installation area
- non-Ex
- Output voltage
- 12…30 VDC
- Connection technology signal
- Screw terminal
- Signal type
- Digital input/output, Digital output, Digital input
- Approvals
- cULus, Class 1 Div. 2
- Connection technology Ethernet
- 2 × RJ45
- Transmission rate Ethernet
- 10/100 Mbps, full/half duplex, autonegotiation, autocrossing

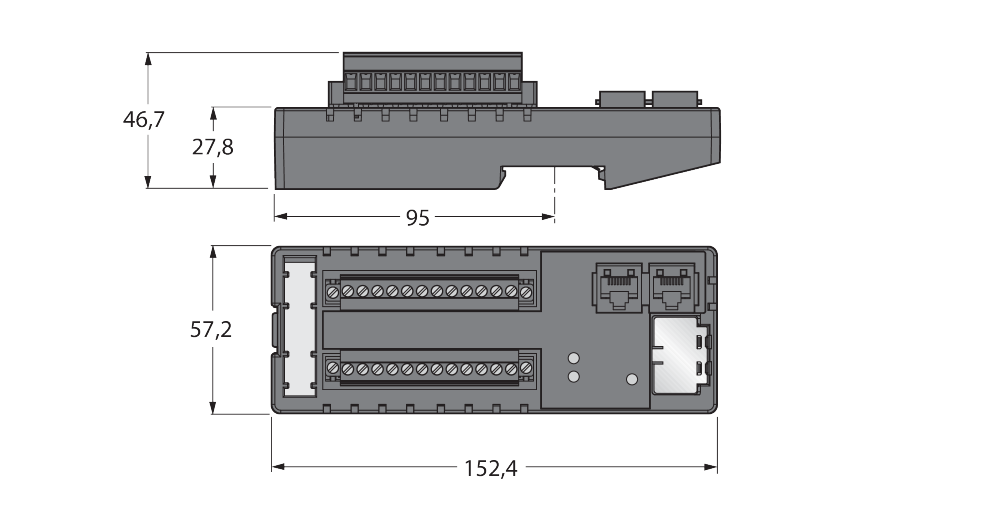

- Dimensions
- 152,2 mm x 57,1 mm x 46,7 mm
- Voltage supply connection
- Screw terminals
- Device type
- I/O Module, Compact station, Field Logic Controller (ARGEE)
