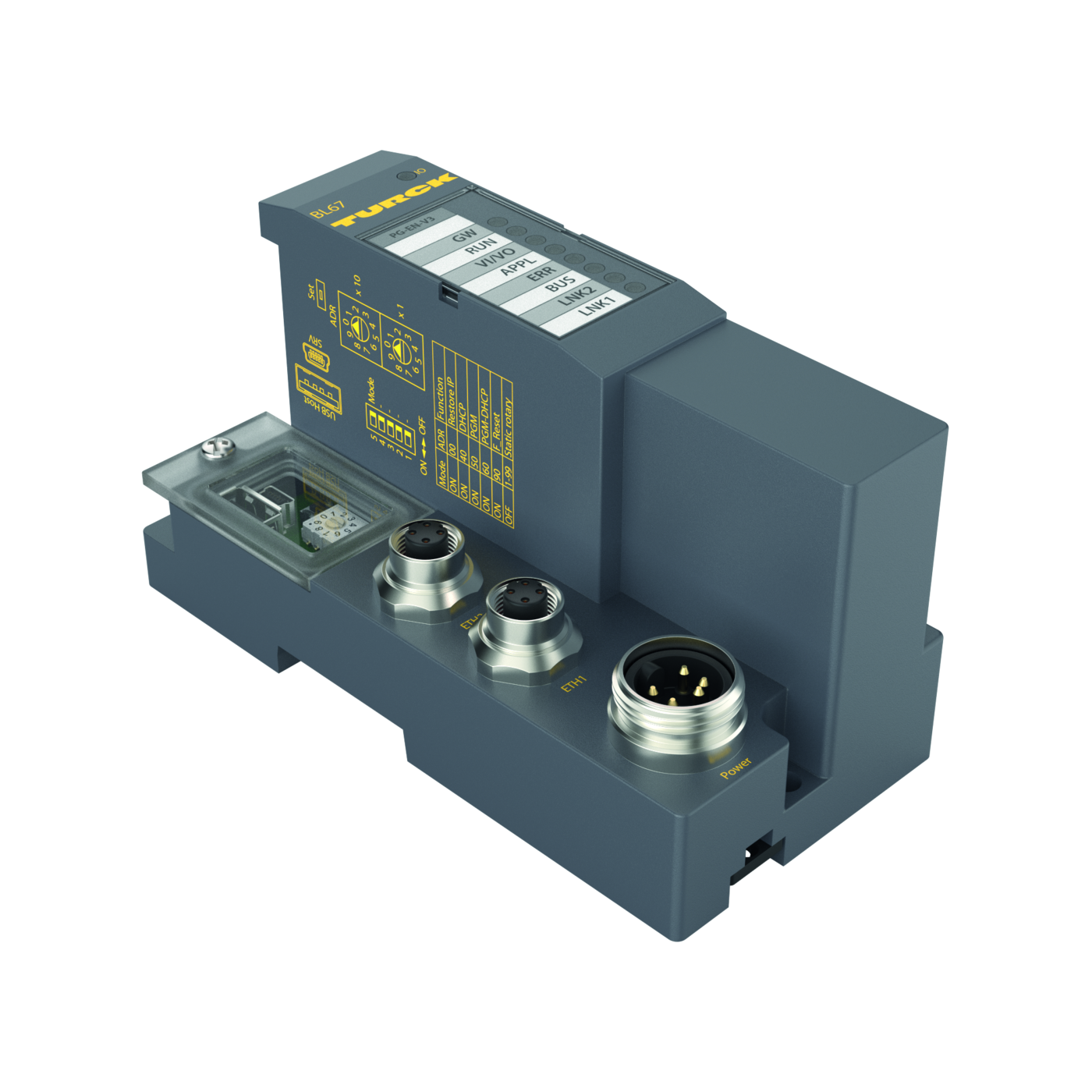

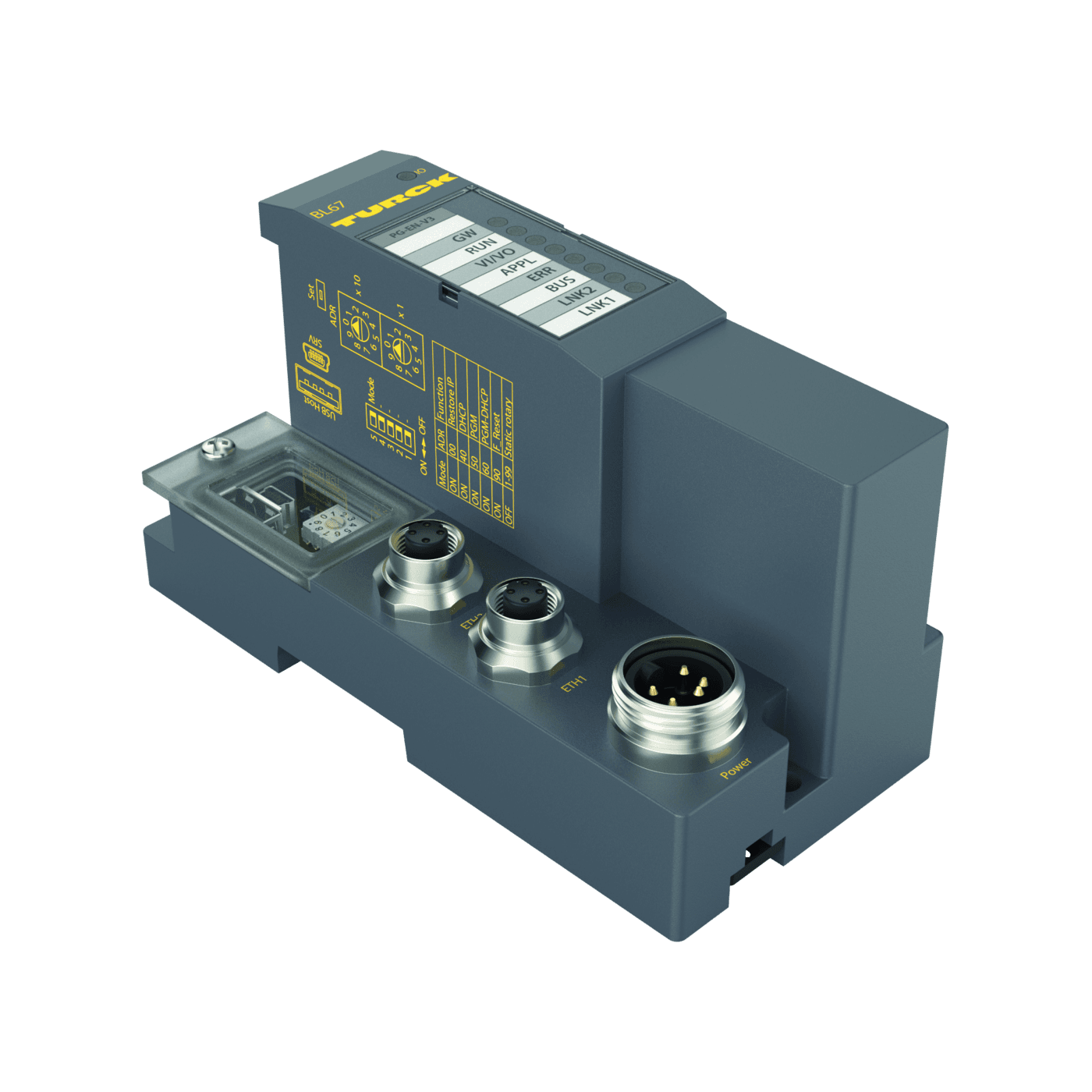

CODESYS 3 Programmable Gateway for the BL67 I/O System

BL67-PG-EN-V3-WV

Order ID no. 100000041

Programming: CODESYS V3
Fieldbus master: Modbus TCP
Fieldbus slave: PROFINET
Protection class: IP67
Network protocol: PROFINET, Modbus TCP, EtherNet/IP
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC
Device function: Programmable gateway

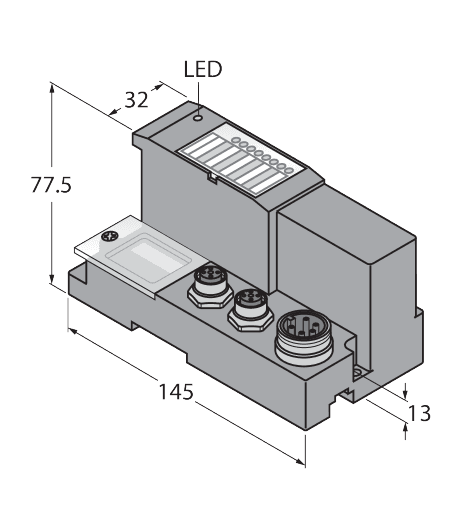

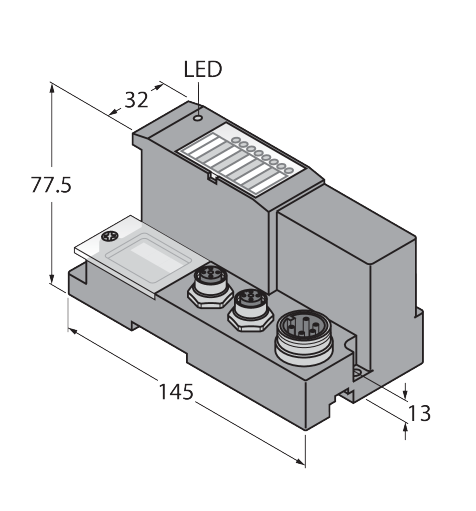

Dimensions: 145 mm x 74 mm x 77,5 mm
Fieldbus connection technology: 2 × M12, 4-pin, D-coded
Fieldbus transmission rate: 10/100 Mbps, Full/Half Duplex, Auto Negotiation, Auto Crossing
Voltage supply connection: 7/8″, 5-pin
Device type: Programmable gateway, Cloud Gateway
