excom I/O System RS485 — Fiber Optic Media Converter for Zone 2

FOC12-3G

Order ID no. 100000553

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -40
Approvals: ATEX, CE, cFM, cFMus, IECEx, KOSHA, UKCA
Connection technology signal: D-Sub

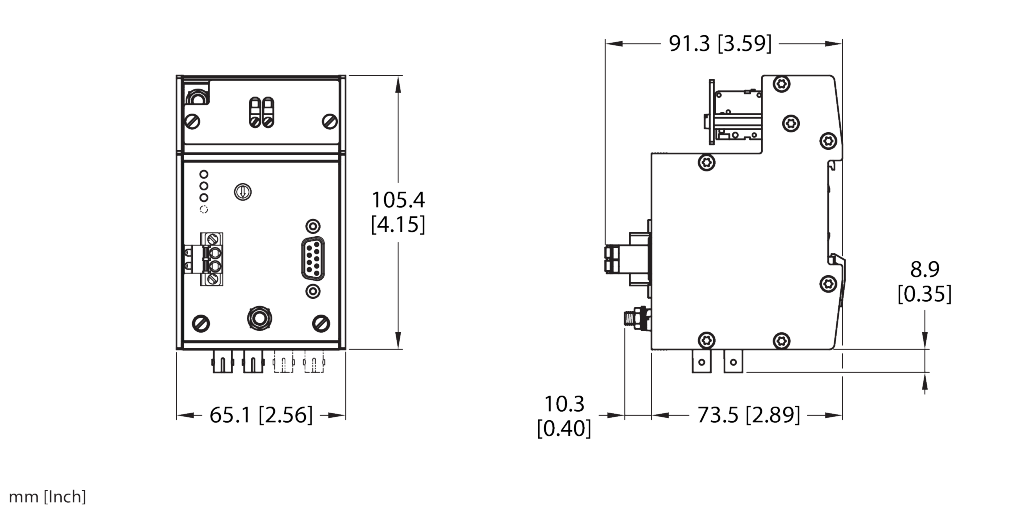

Dimensions (L x W x H): 105 mm x 65 mm x 73,5 mm
Electrical connection: 1 x 2-pin removable terminal block, spring-type connection, 1 x Ex e terminal, 2-pin, screw connection, 4 x BFOC/2.5 (St) male connector
Housing material: Anodized aluminium
Network protocol: PROFIBUS-DP
Number of channels: 2
Product type: Fiber optic media converter
Protection class: IP20
