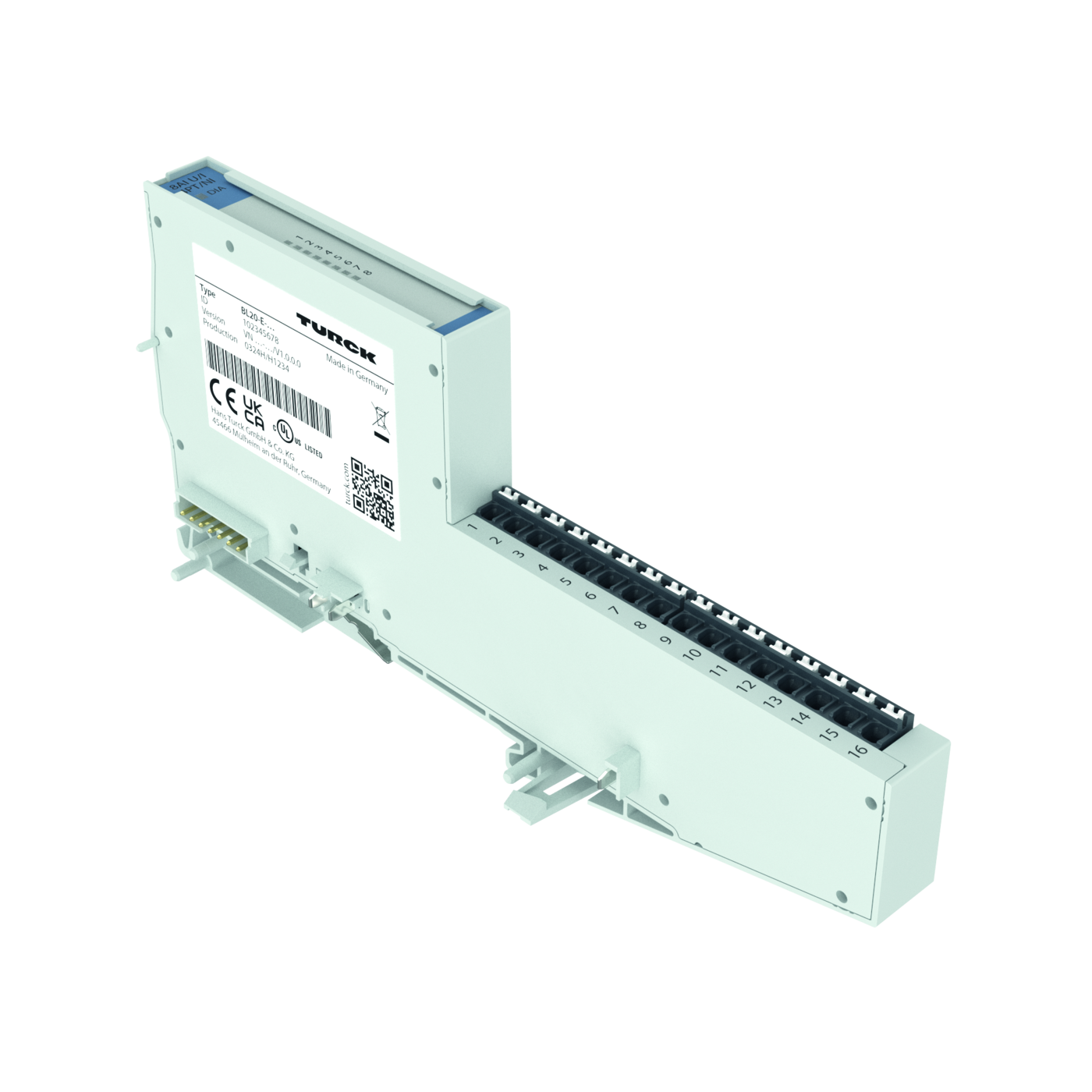

BL20-E-8AI-U/I-4PT/NI

Protection class: IP20
Approvals: cULus
Ambient temperature min. (°C): 0
Ambient temperature max. (°C): 55
Operating voltage: DC
Input type: 0/4…20 mA, -10/0…10 VDC, Pt100, Pt200, Pt500, Pt1000, NI100, NI1000, 0…250 Ω, 0…400 Ω, 0…800 Ω, 0…2000 Ω, 0…4000 Ω
Number of channels: 8/4
Installation area: zone 2
Connection technology signal: Cage clamp terminal
Signal type: Analog input, Temperature
Approvals: ATEX, IECEx, cULus, cFMus, GOST

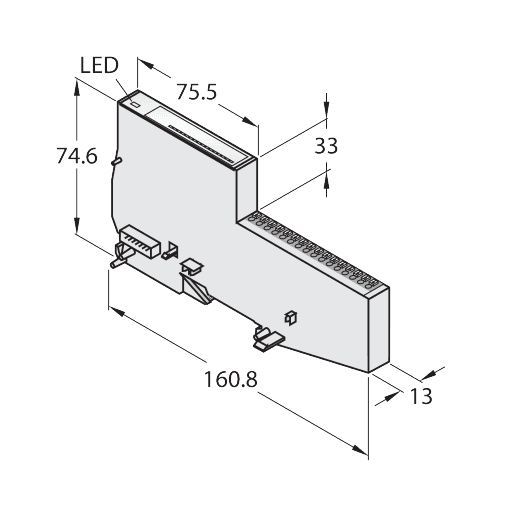

Dimensions: 160,8 mm x 13 mm x 74,6 mm
Device type: I/O Module
