excom I/O System

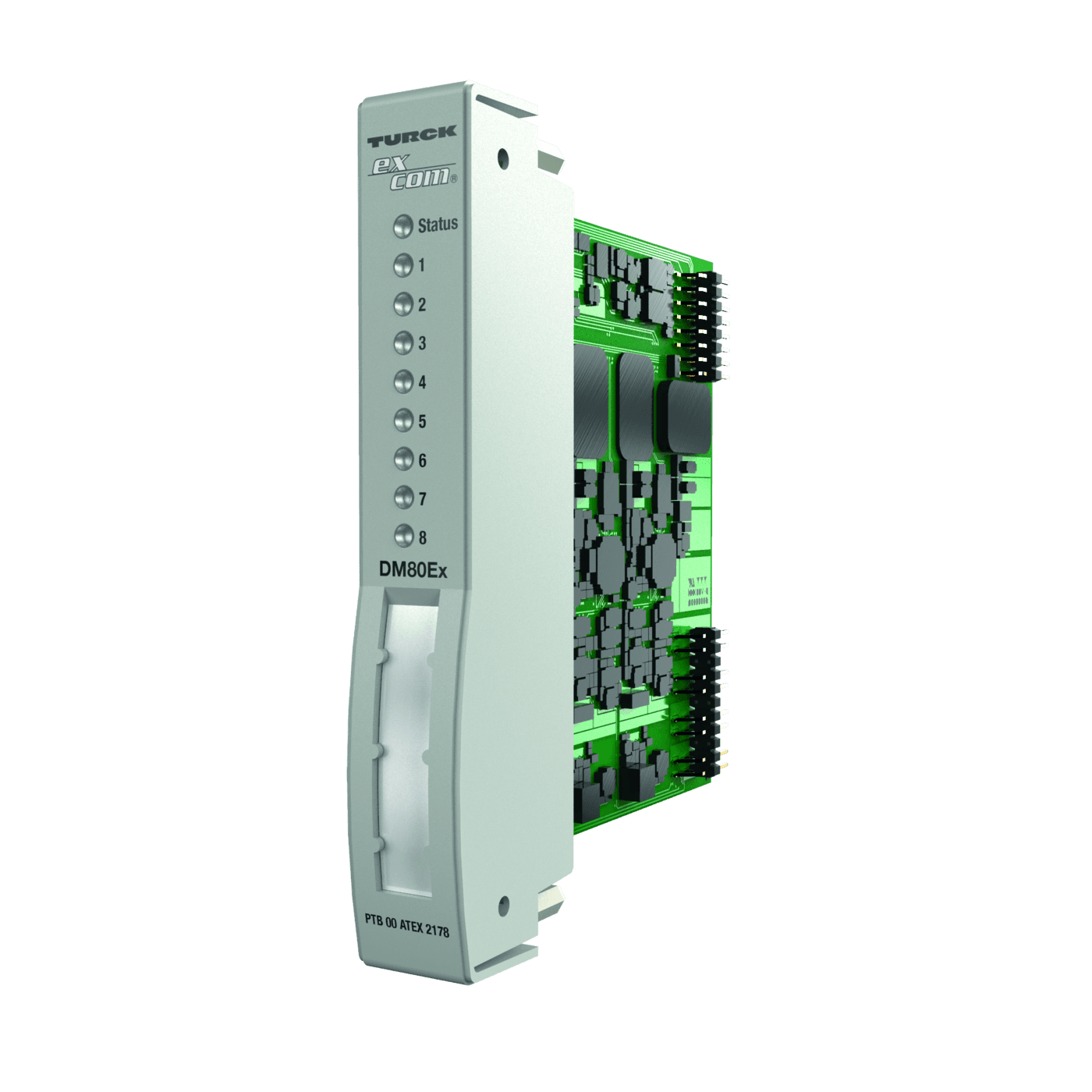

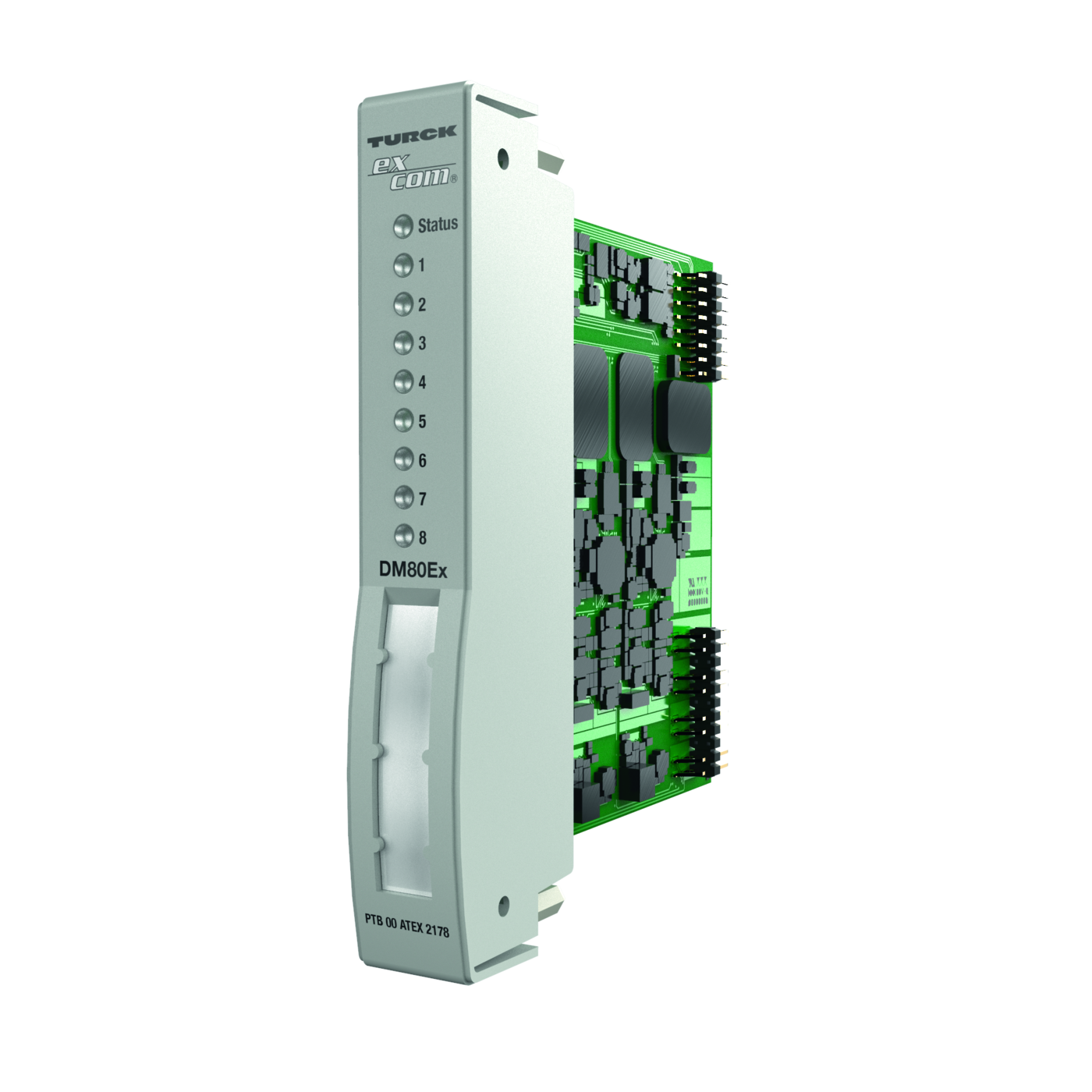

DM80EX

Order ID no. 6884006

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -20
Approvals: ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, DNV GL, BV, LR, KR, KCC, UKCA, CE
Connection technology signal: Screw terminal, Cage clamp terminal
Dimensions (L x W x H): 118 mm x 18 mm x 106 mm
Network protocol: PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET
Housing material: Plastic
Number of channels: 8
Product type: I/O Module
Protection class: IP20
Signal type: Digital input/output, NAMUR, Intrinsically safe
