excom I/O System

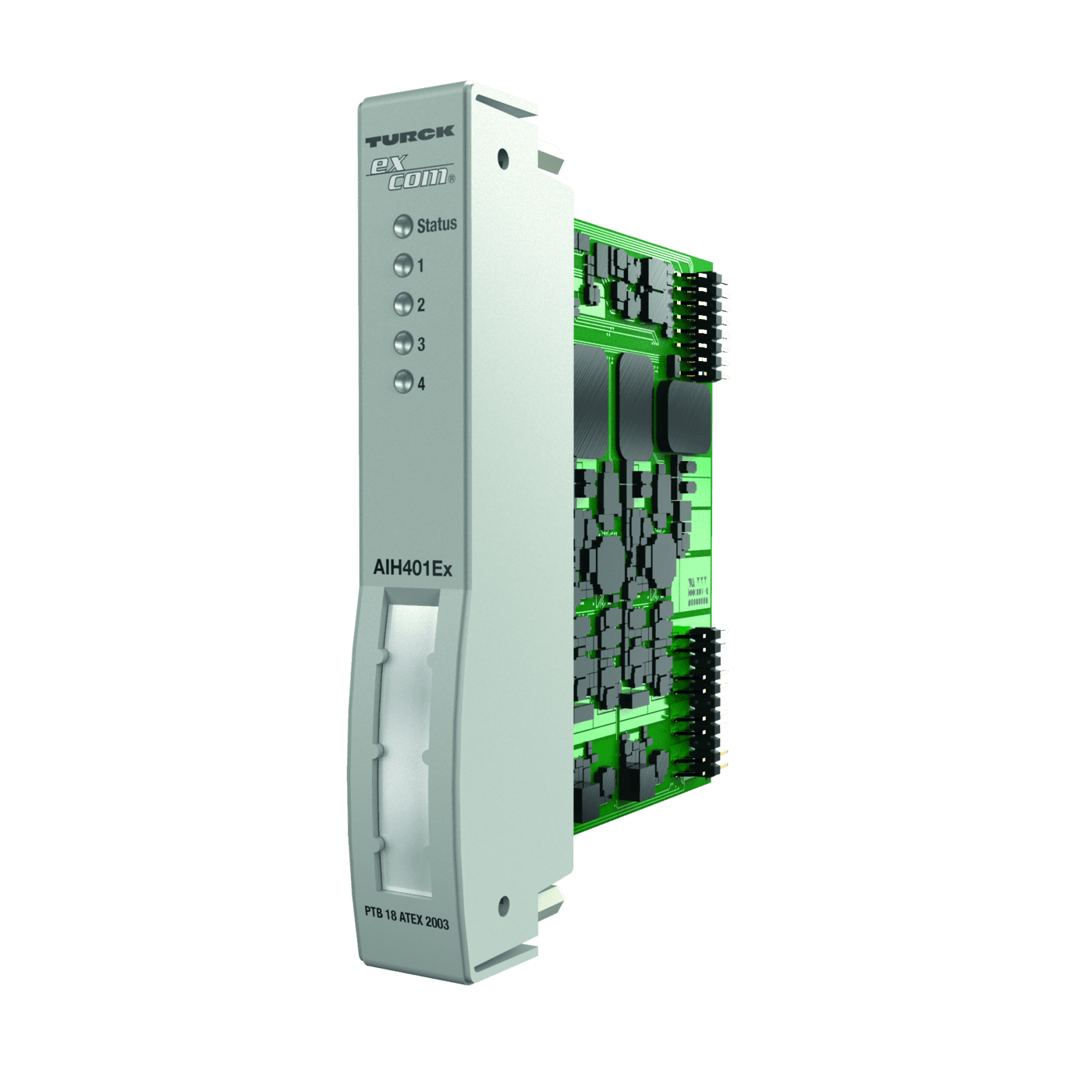

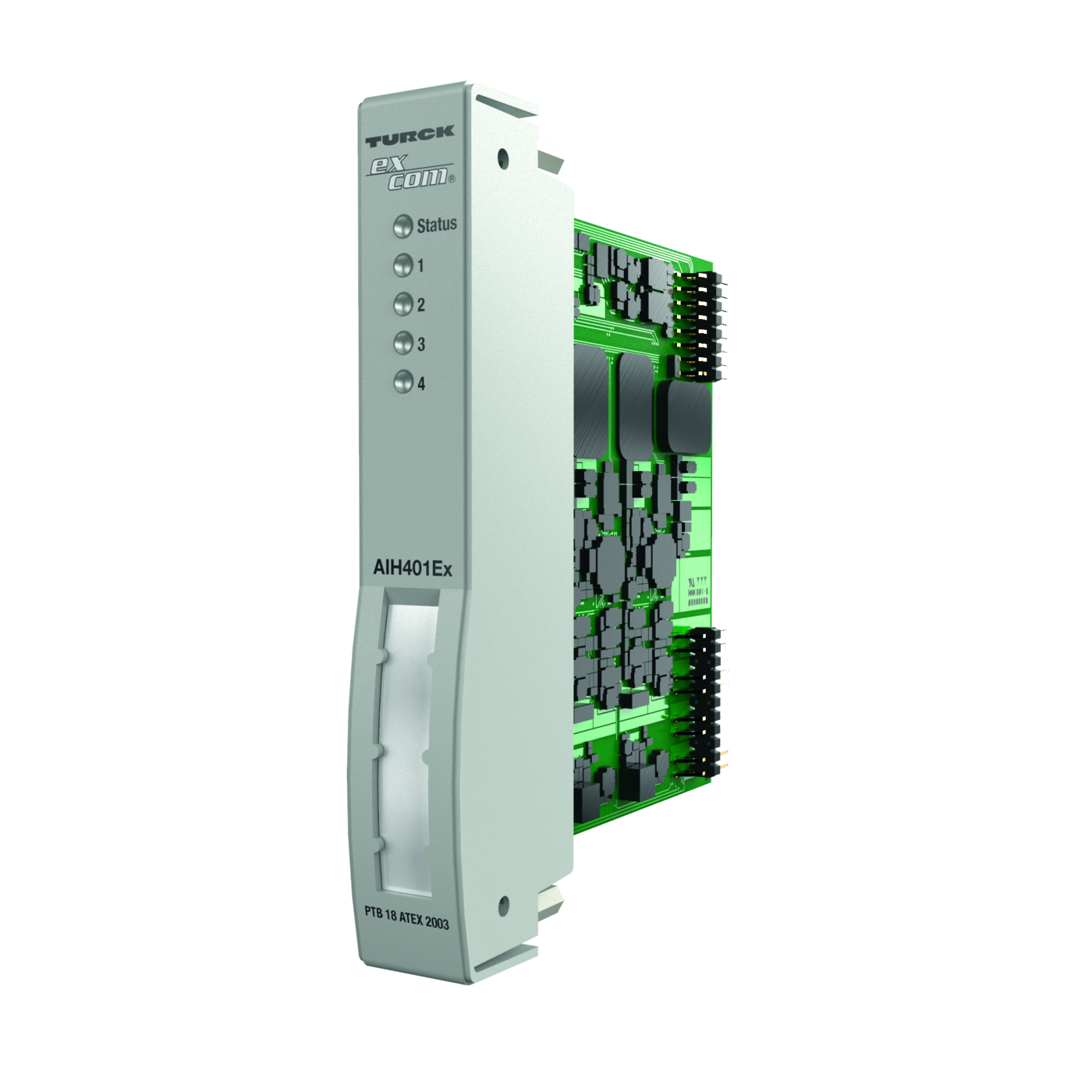

AIH401EX

Order ID no. 6884266

Protection class: IP20
Network protocol: PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET
Approvals: ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, CMI, UKCA, CE
Housing material: Plastic
Ambient temperature min. (°C): -20
Ambient temperature max. (°C): 70
Number of channels: 4
Connection technology signal: Screw terminal, Cage clamp terminal
Signal type: Analog input, HART, Intrinsically safe
Dimensions: 118 mm x 18 mm x 106 mm
Device type: I/O Module
