excom I/O System

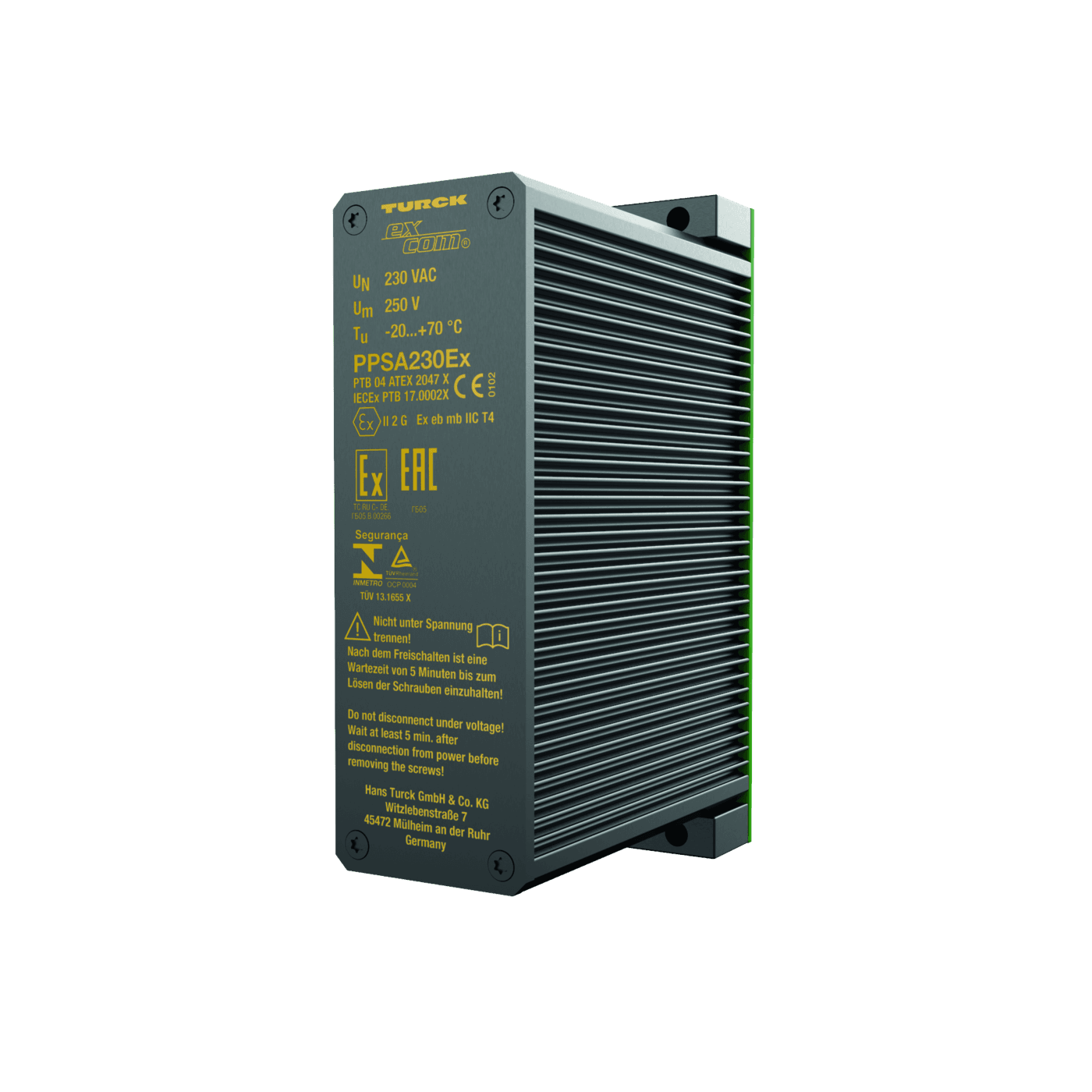

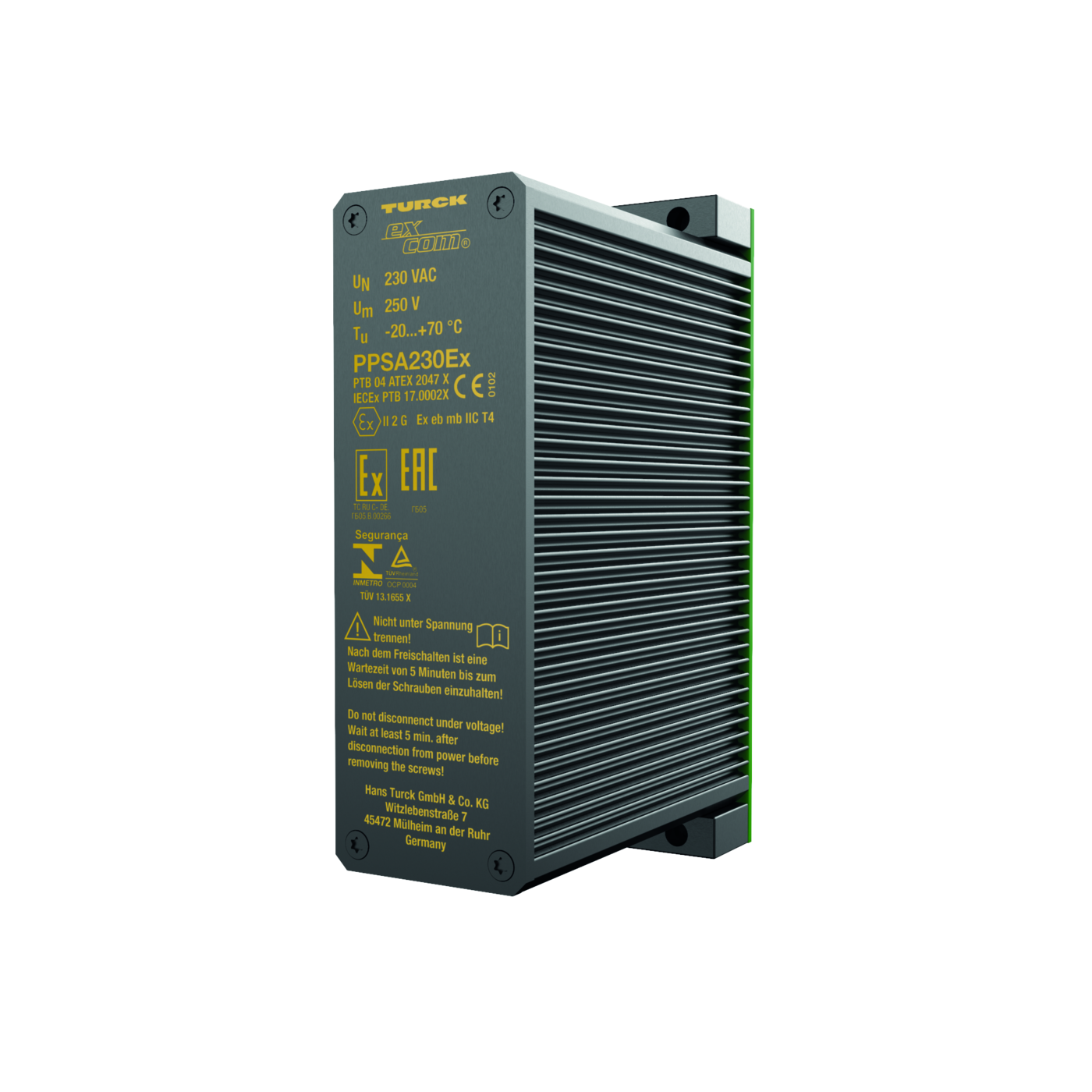

PPSA230EX

Order ID no. 6900293

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -20
Approvals: ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, DNV GL, BV, LR, KR, CE
Electrical connection: Via module rack
Connection technology signal: Screw terminal, Cage clamp terminal

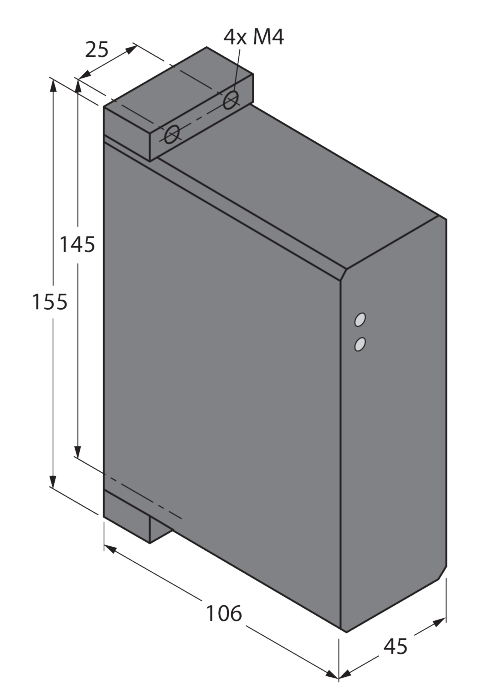

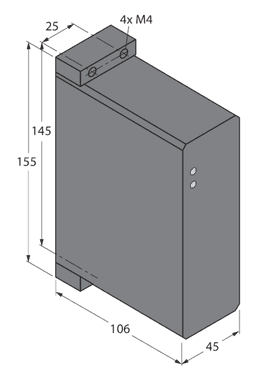

Dimensions (L x W x H): 155 mm x 45 mm x 106 mm
Network protocol: PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET
Housing material: Aluminium
Product type: Power Supplies
Protection class: IP50
Signal type: Power supply
