excom I/O System

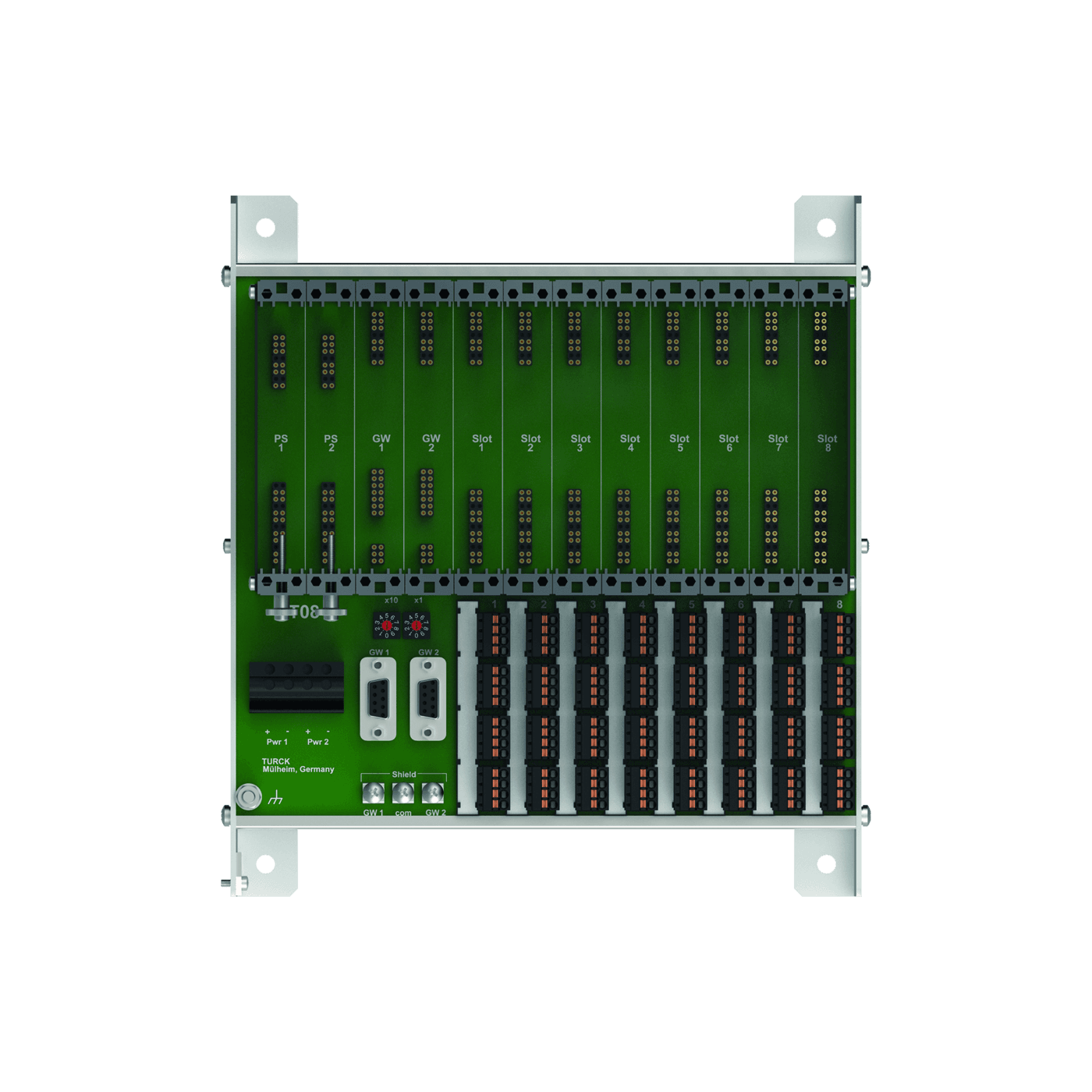

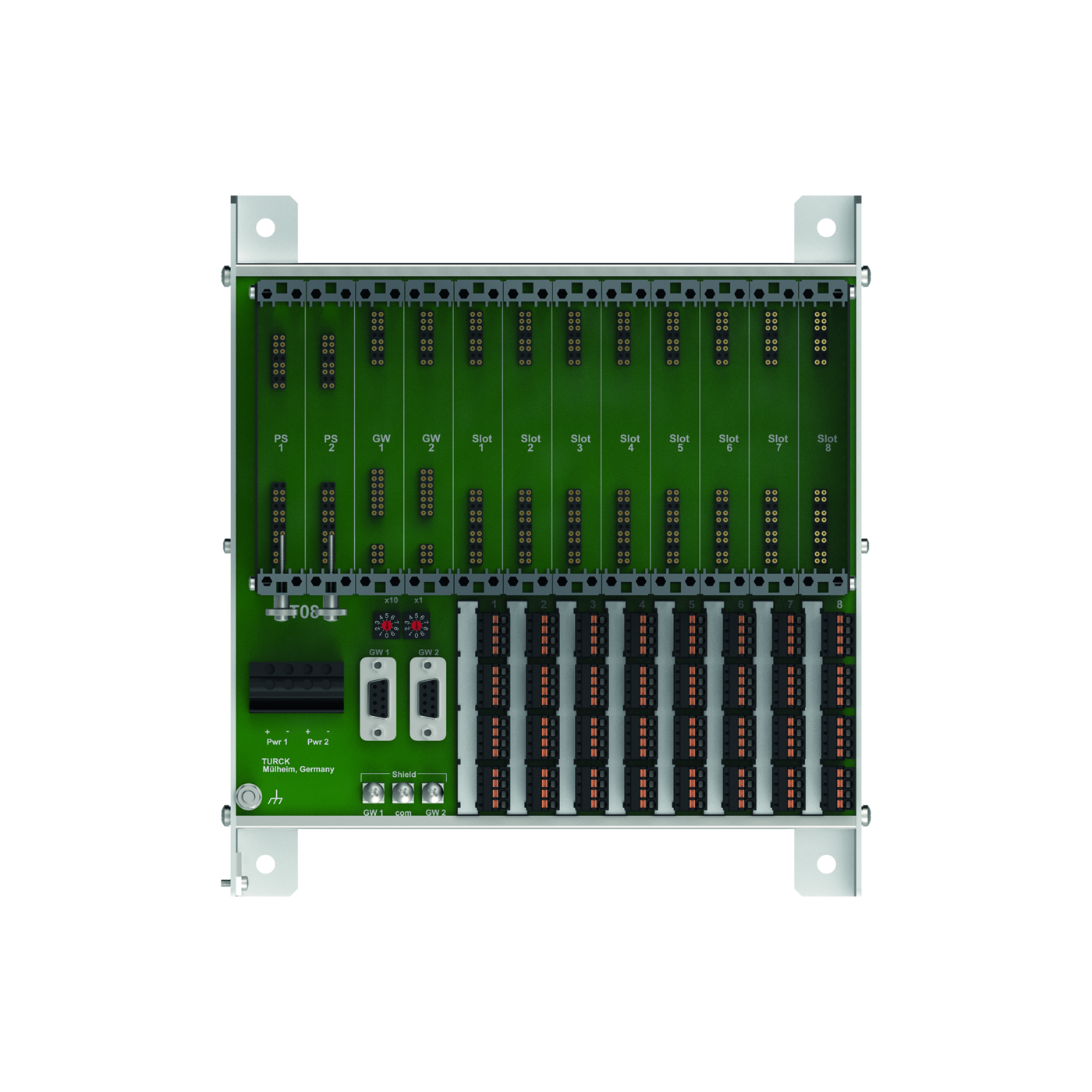

MT08-N
Order ID no. 9100689
In Stock
Price Group
D1
List Price
€929.00
Item Total
€929.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Protection class
IP20
Network protocol
PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET
Approvals
ATEX, cFMus, cFM, IECEx, CE
Electrical connection
4 x 4 clamps per module
Housing material
Aluminium, extrusion profile
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
70
Installation area
zone 2
Connection technology signal
Screw terminal, Cage clamp terminal
Approvals
ATEX, cFMus, cFM, IECEx

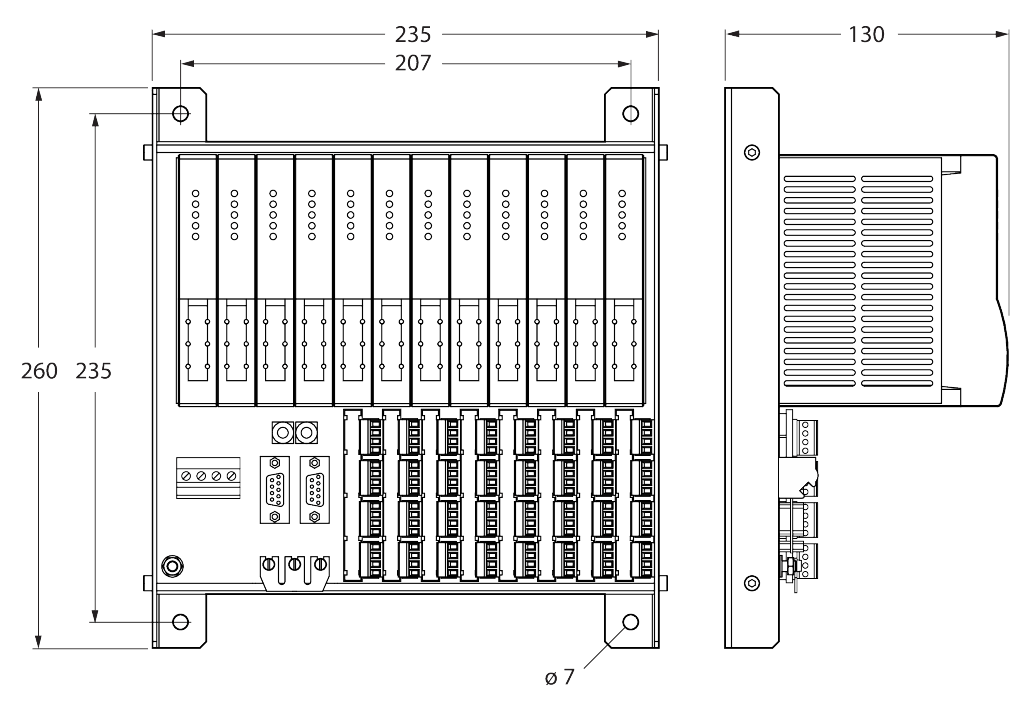

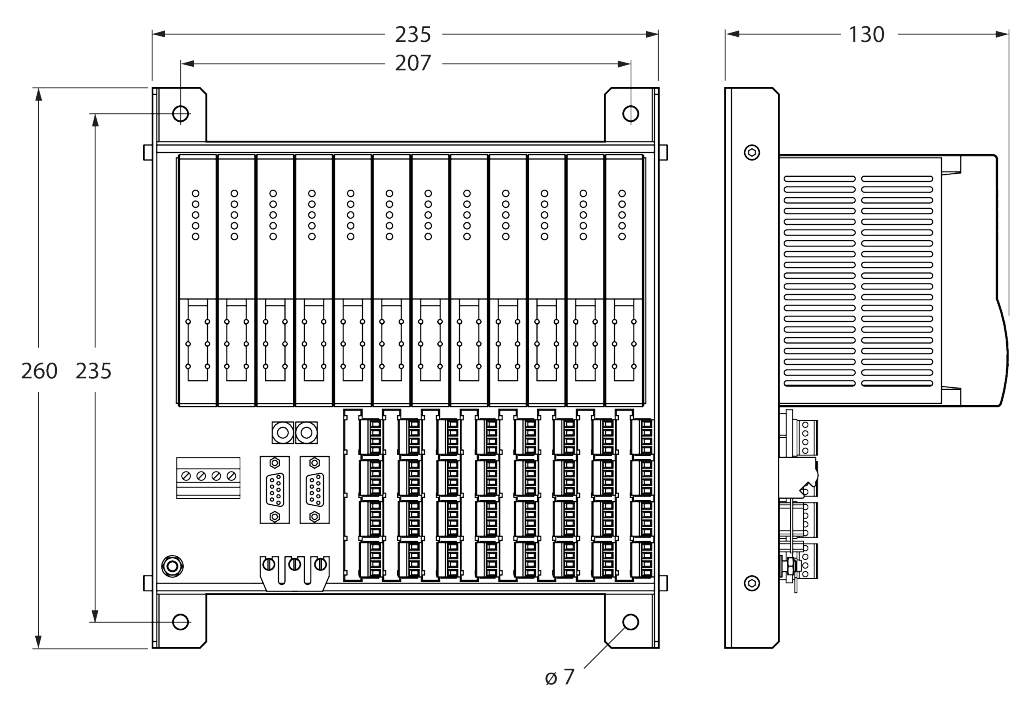

Dimensions
260 mm x 235 mm x 130 mm
Fieldbus connection technology
2 × D-SUB, 9-pin
Device type
Module Racks
Key Features
Connection technology signal
Screw terminal, Cage clamp terminal
Network protocol
PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET
Protection class
IP20
