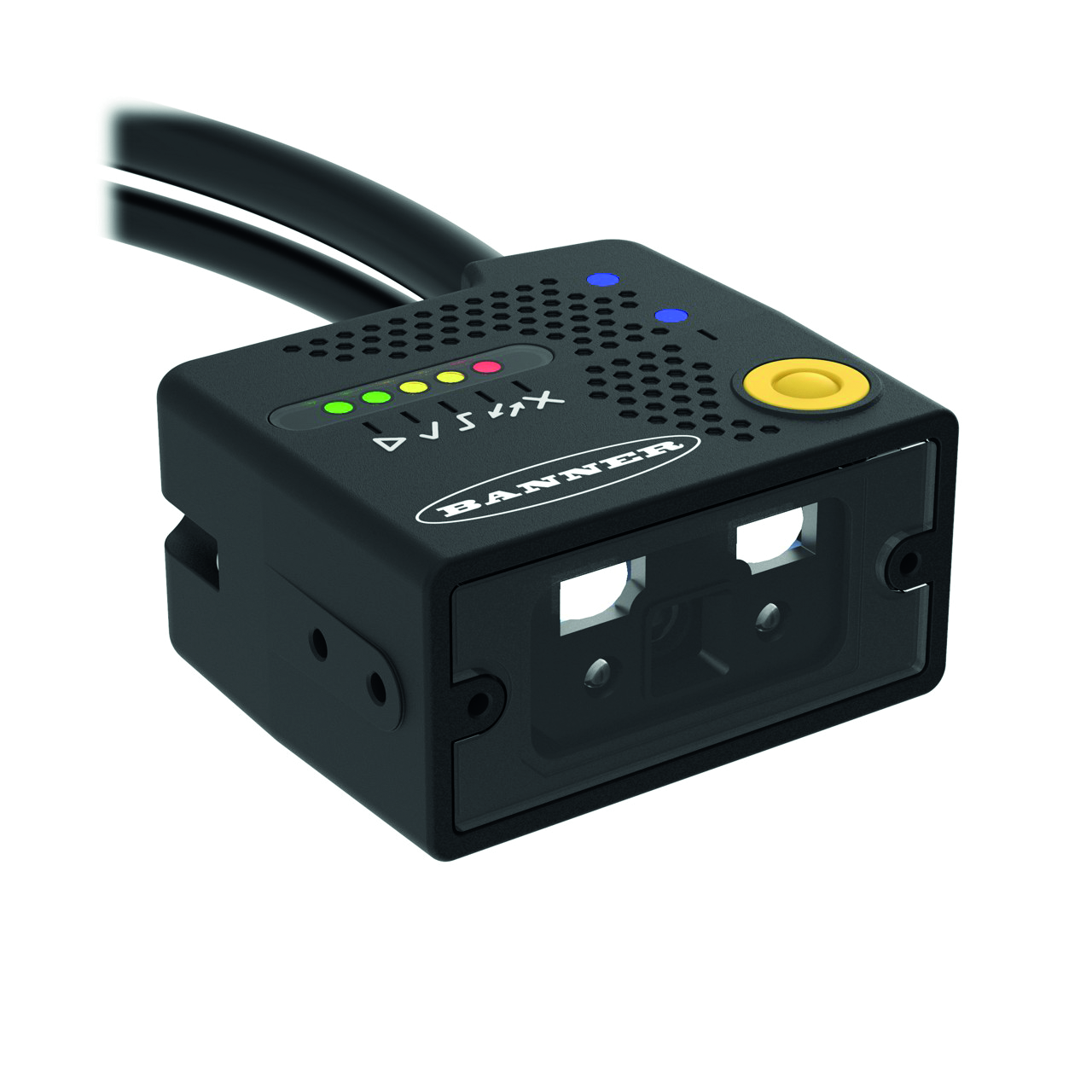

Barcode Reader — Scanner
ABR3106-WSE2
Order ID no. 3804435
In Stock
Price Group
F3
List Price
€3,032.00
Item Total
€3,032.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Protection class
IP65
Switching element function
NO/NC
Output function
PNP/NPN
Cable length (m)
1
Design
Rectangular
Communication protocol
EtherNet/IP, Modbus TCP, PROFINET
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Aluminium
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
45
Function
Barcode reader - scanner
Operating voltage
DC
Focal distance (mm)
6
Light type
White
Resolution
1280 × 1024 pixels Pixel

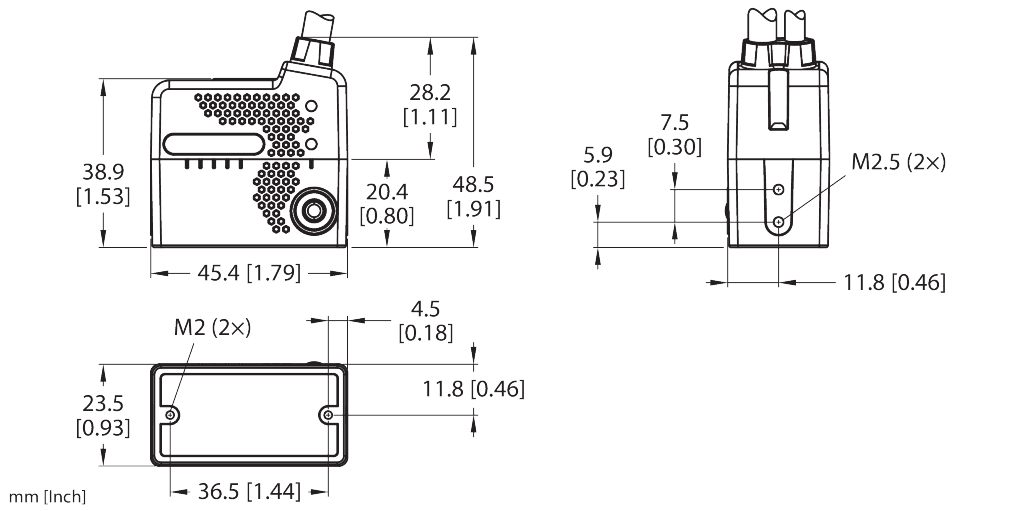

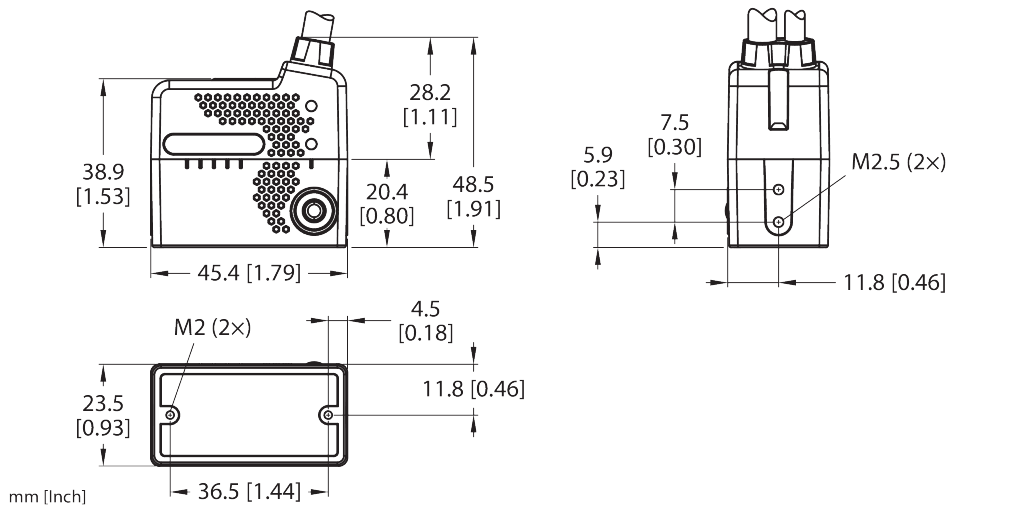

Dimensions
45,4 mm x 39 mm x 23,5 mm
Key Features
Communication protocol
EtherNet/IP, Modbus TCP, PROFINET
Focal distance (mm)
6
Light type
White
Resolution
1280 × 1024 pixels
