- Protection class
- IP65
- Network protocol
- Modbus TCP, EtherNet/IP, PROFINET
- Cable length (m)
- 50
- Approvals
- ATEX Zone 2/22, cULus, IECEx, CCC
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 70
- Operating voltage
- DC
- Number of channels
- 6
- Installation area
- non-Ex
- Output voltage
- 24 VDC from potential group V2
- Connection technology signal
- M12
- Signal type
- RFID, Digital input, Digital input/output, Digital output
- Connection technology Ethernet
- 2 x M8, 4-pin, D-coded
- Transmission rate Ethernet
- 10/100 Mbps

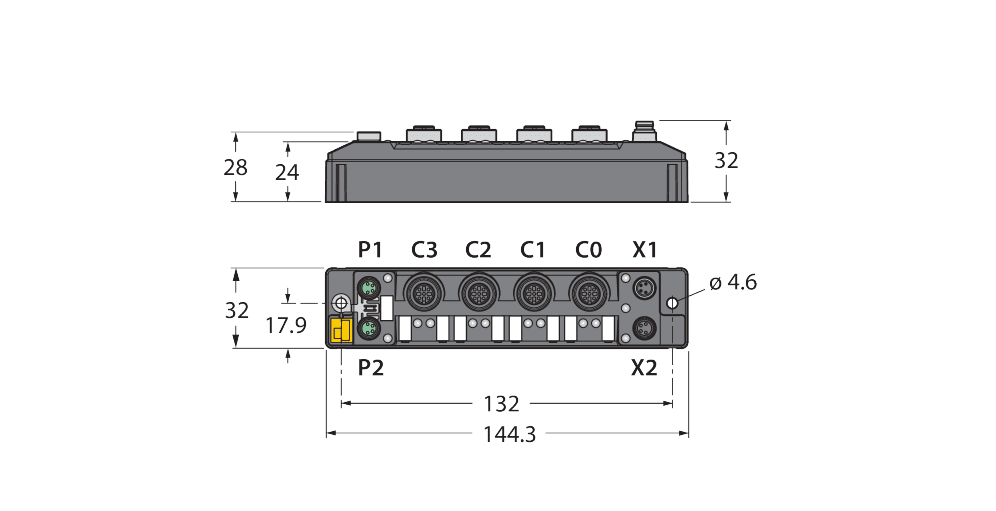

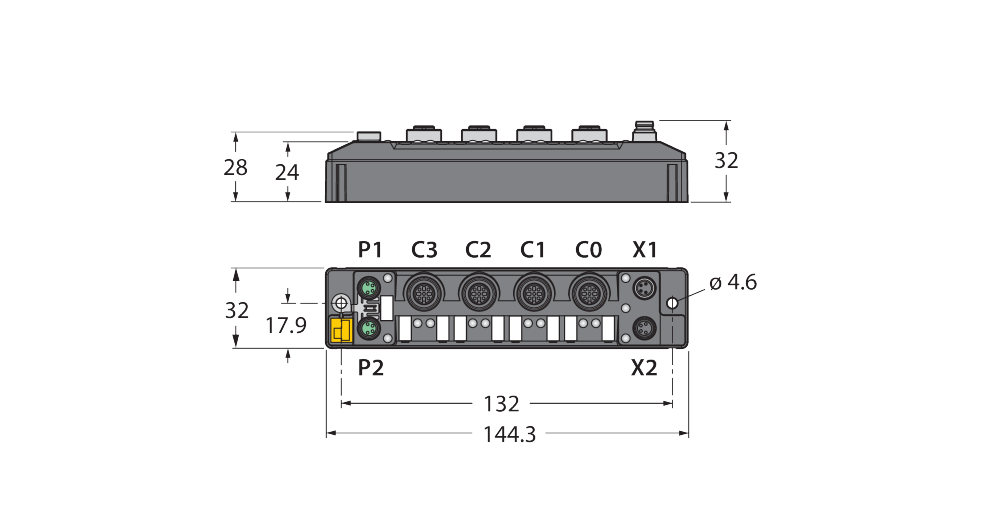

- Dimensions
- 144 mm x 32 mm x 32 mm
- Voltage supply connection
- 2 × M8, 4-pin, A-coded
- Device type
- I/O Module, Compact station, Field Logic Controller (ARGEE)
