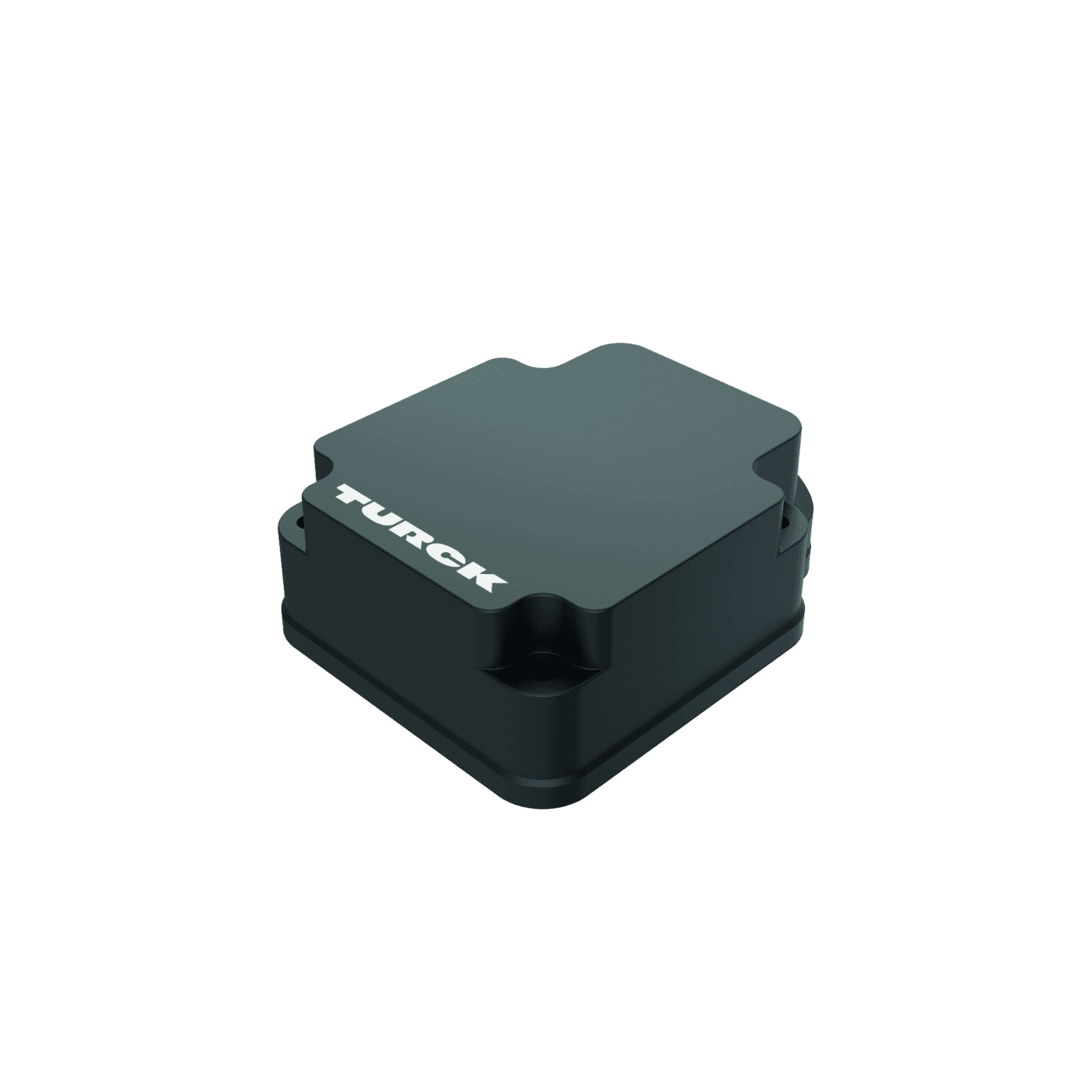

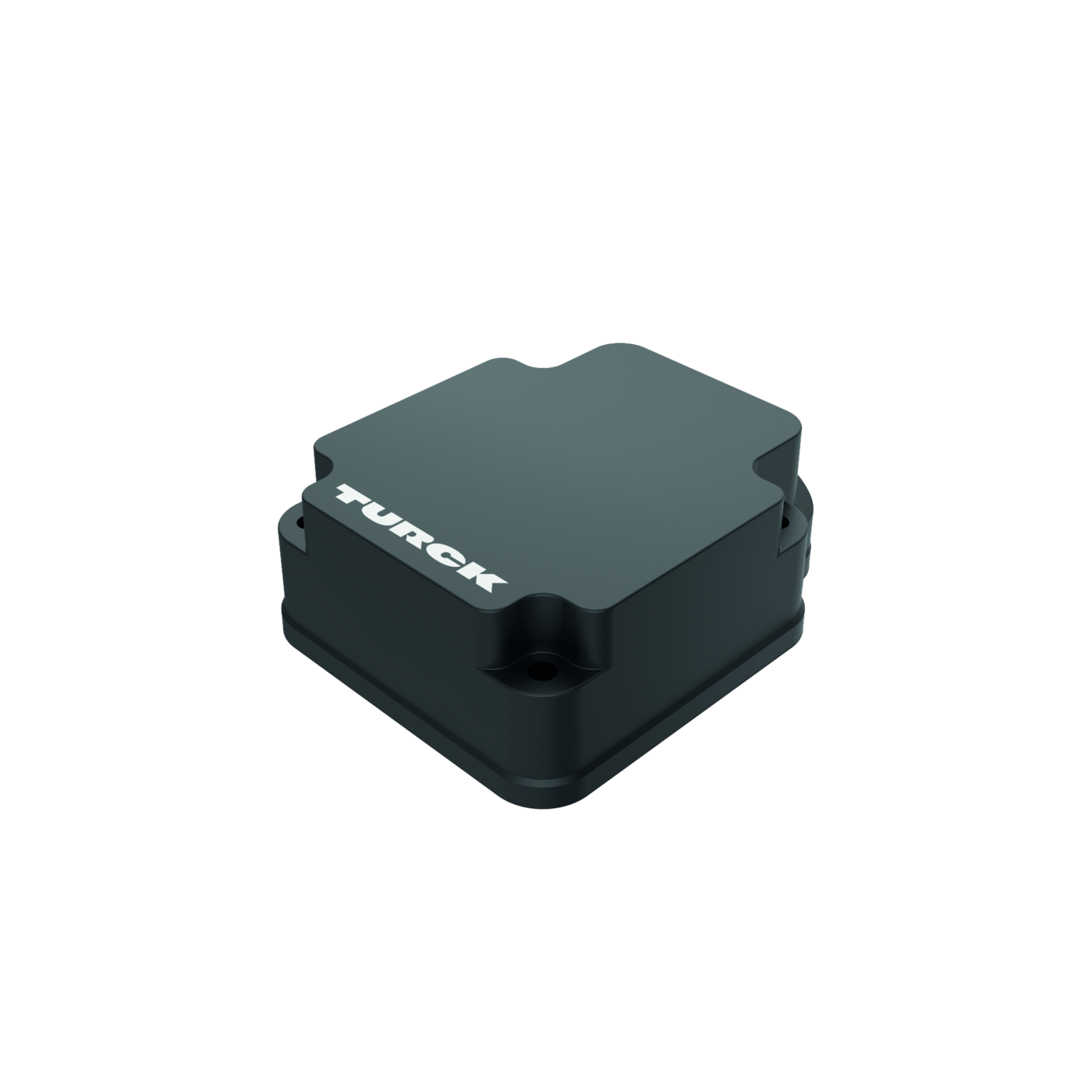

HF Read/Write Head

TNSLR-Q80WD-H1147/C53

Order ID no. 100001312

Item Total€698.00

Quantity

Radio communication and protocol standards: ISO 15693, NFC Type 5
Technology: HF RFID
Read/Write distance max. (mm): 280
Suitable for bus mode to TBEN-*: Yes
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: CE, UKCA, UL
Connector type: M12 x 1
Design: Rectangular
Dimensions (L x W x H): 102 mm x 83 mm x 40 mm
Network protocol: Connection to RFID interface
Housing material: Plastic
Mounting conditions: Non-flush
Operating voltage: DC
Protection class: IP68, IP69K
Quality active face: PPS-GF30
Radio approvals (HF): EU/RED: Europe, UK/SI 2017/1206: United Kingdom, FCC: USA, IC: Canada, MIC: Japan, RCM: Australia/New Zealand, SRRC: PR China, KC: South Korea
Switching element function: Read/Write
