- Radio communication and protocol standards
- ISO 15693, NFC Type 5
- Technology
- HF RFID
- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- CE, UKCA, UL
- Connector type
- M12 x 1
- Design
- Rectangular

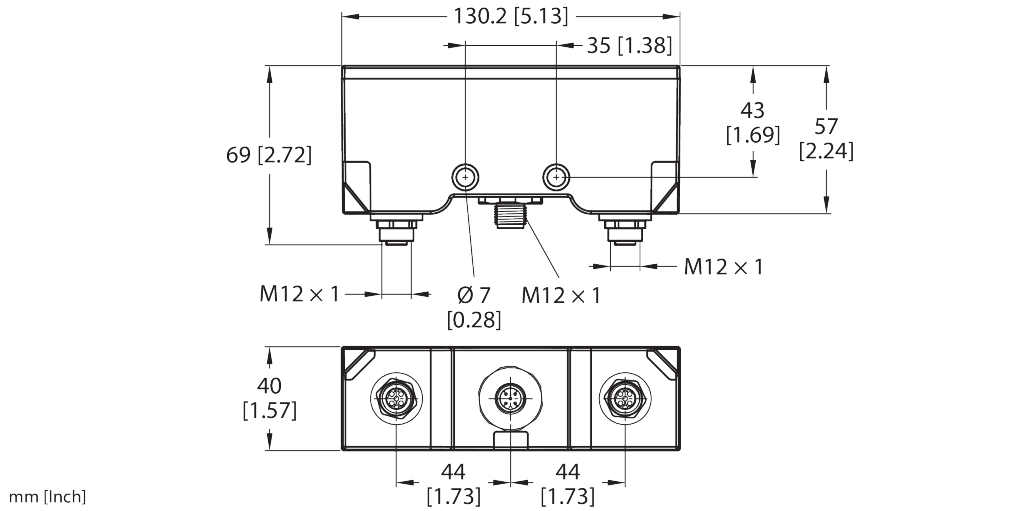

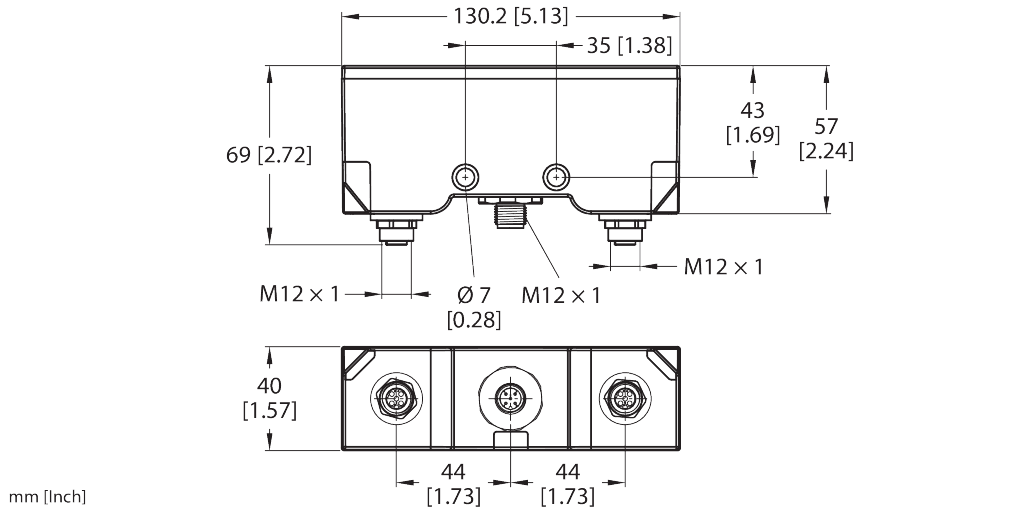

- Dimensions (L x W x H)
- 130 mm x 69 mm x 40 mm
- Connection technology Ethernet
- 2 x M12, 4-pin, D-coded
- Transmission rate Ethernet
- 10/100 Mbps
- Network protocol
- Modbus TCP, EtherNet/IP, PROFINET
- Housing material
- Plastic
- Mounting conditions
- Non-flush
- Operating voltage
- DC
- Voltage supply connection
- 1 × M12, A-coded
- Protection class
- IP69K front, IP67 rear
- Quality active face
- PPS-GF30
- Radio approvals (HF)
- EU/RED: Europe, UK/SI 2017/1206: United Kingdom, FCC: USA, IC: Canada, MIC: Japan, KC: South Korea
- Signal type
- RFID
- Switching element function
- Read/Write
