HF Read/Write Head

TN-M18-IOL2-H1141

Order ID no. 100012160

Radio communication and protocol standards: ISO 15693, NFC Type 5
Technology: HF RFID
Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -25
Approvals: CE, UKCA, cULus
Electrical connection: Connector
Connector type: M12 x 1
Design: Threaded barrel

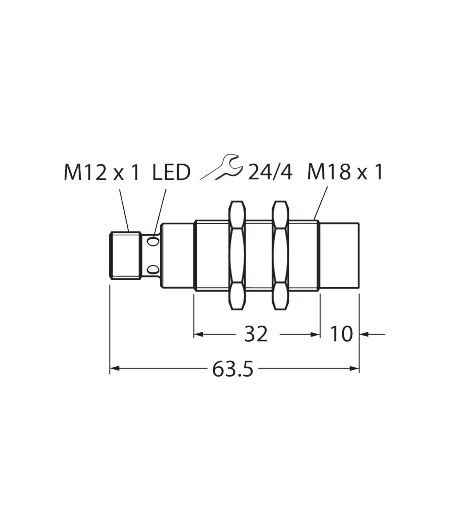

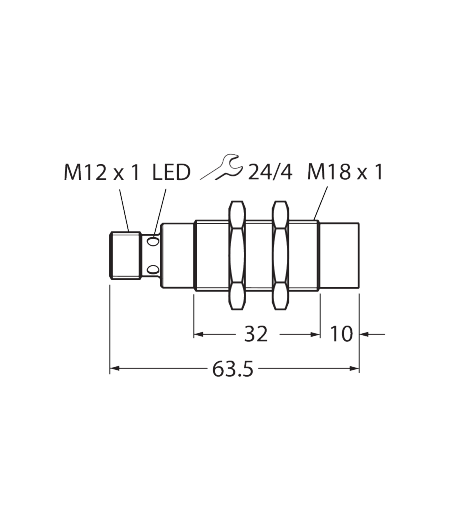

Dimensions (L x W x H): 63,5 mm
Network protocol: IO-Link
Housing material: Metal
Housing quality: CuZn
Mounting conditions: Non-flush
Operating voltage: DC
Output function: IO-Link
Protection class: IP67
Quality active face: PBT
Radio approvals (HF): EU/RED: Europe, UK/SI 2017/1206: United Kingdom, FCC: USA, IC: Canada, MIC: Japan
Switching element function: Read/Write
