HF Read/Write Head

TN-M30-IOL2-H1141

Order ID no. 100012162

Item Total€221.30

Quantity

Protection class: IP67
Switching element function: Read/Write
Output function: IO-Link
Network protocol: IO-Link
Approvals: CE, UKCA, cULus
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: CuZn
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Mounting conditions: Non-flush
Operating voltage: DC
Radio communication and protocol standards: ISO 15693
Technology: HF RFID

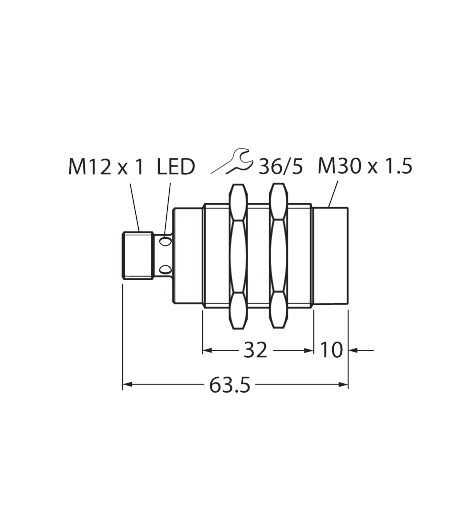

Dimensions: 30 mm x 63,5 mm
Quality active face: PBT
Radio approvals (HF): EU/RED: Europe, UK SI 2017/1206: United Kingdom, FCC: USA, IC: Canada, MIC: Japan
