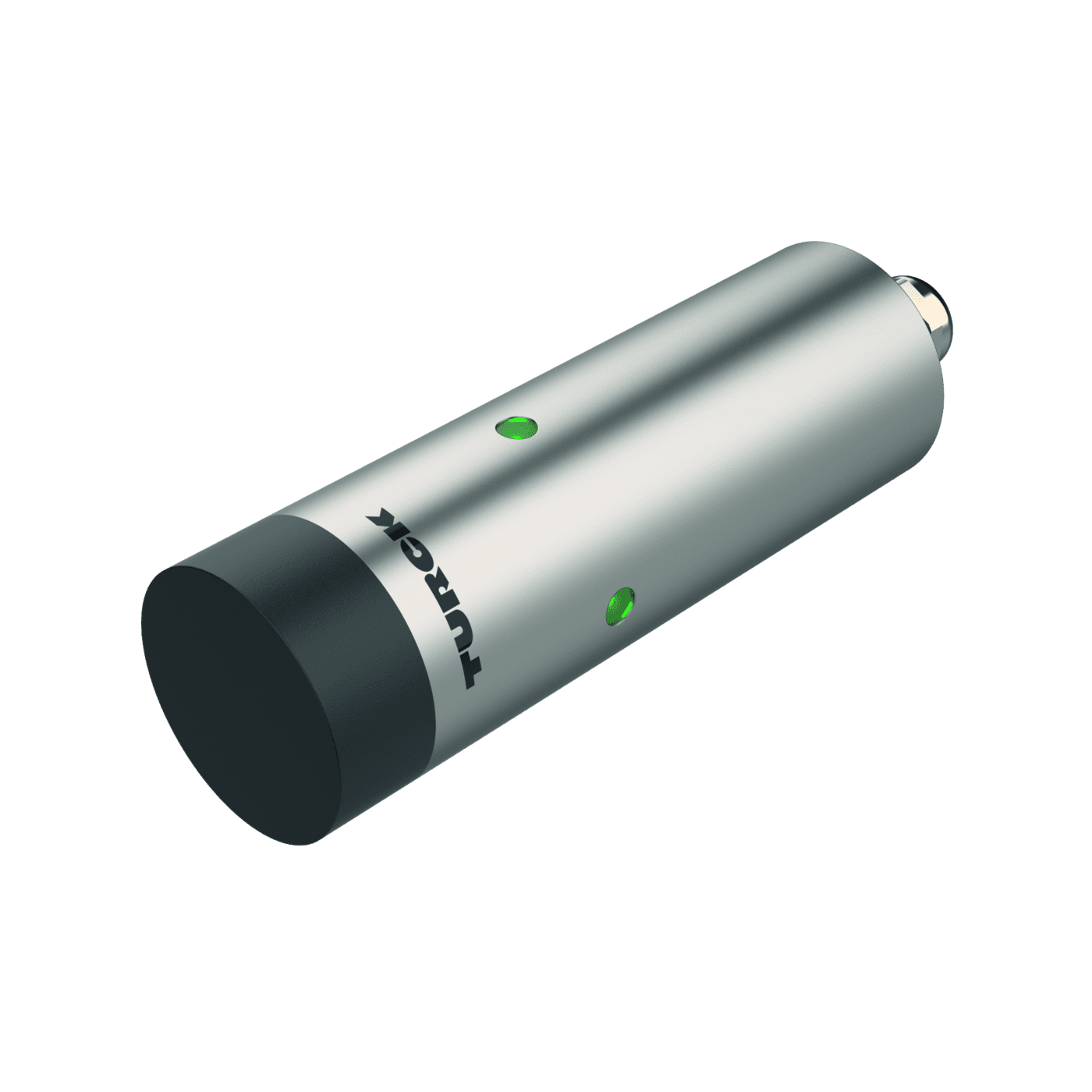

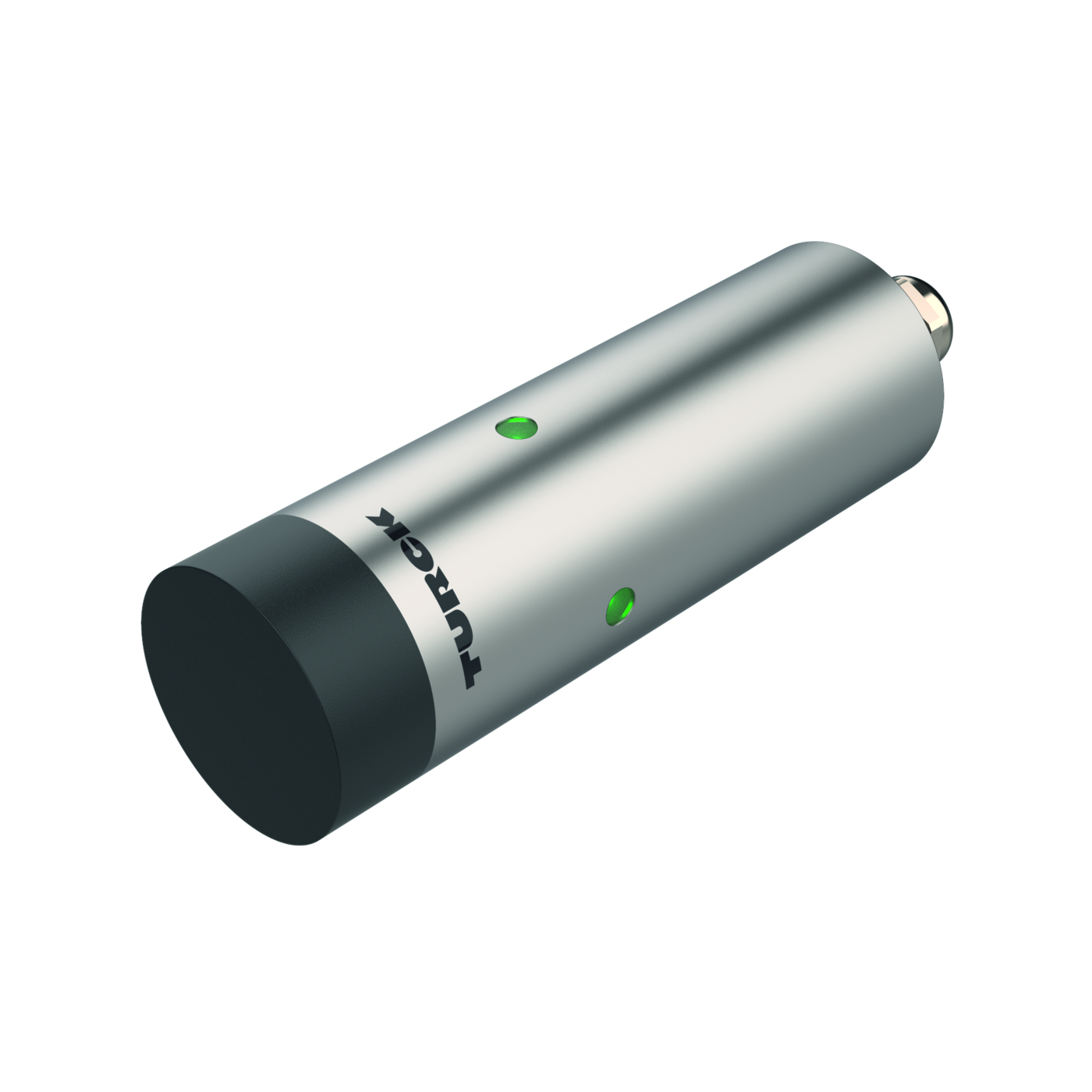

HF Read/Write Head For Explosion Hazardous Areas and Bus Line Topology with TBEN-*

TN-R42TC-EX/C53

Order ID no. 100020167

Item Total1.153,00 €

Quantity

Ambient temperature max. (°C): 40
Ambient temperature min. (°C): -20
Approvals: ATEX, CE, UKCA
Design: Smooth barrel

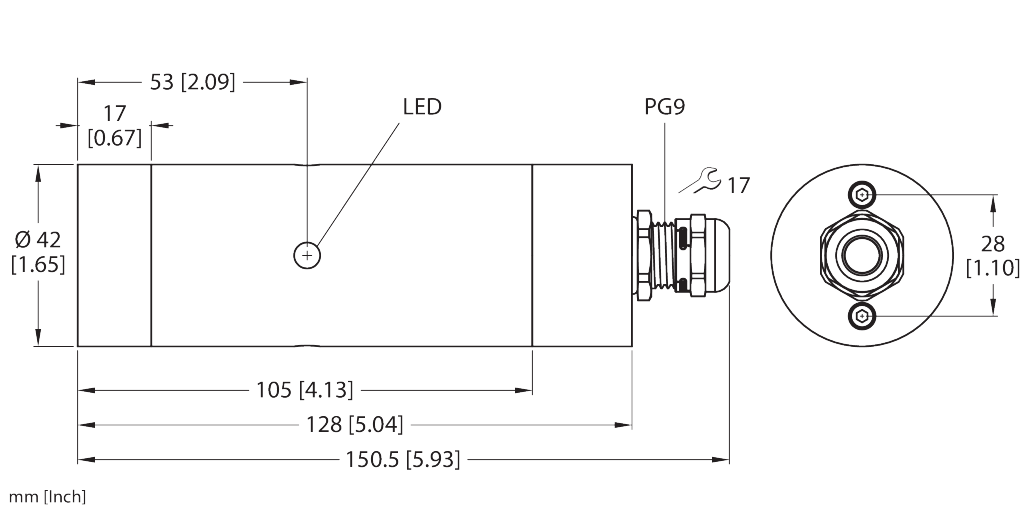

Dimensions (L x W x H): 150,5 mm
Electrical connection: Terminal chamber
Mounting conditions: Non-flush
Network protocol: Connection to RFID interface
Operating voltage: DC
Protection class: IP67
Quality active face: PA6
Radio approvals (HF): EU/RED: Europe, FCC: USA, IC: Canada, UK/SI 2017/1206: United Kingdom
Radio communication and protocol standards: ISO 15693, NFC Type 5
Suitable for bus mode to TBEN-*: Yes
Switching element function: Read/Write
Technology: HF RFID
