HF Read/Write Head

TN-CK40-H1147

Order ID no. 7030006

Radio communication and protocol standards: ISO 15693, NFC Type 5
Technology: HF RFID
Read/Write distance max. (mm): 115
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: CE, UKCA, UL
Electrical connection: Connector
Connector type: M12 x 1
Design: Rectangular

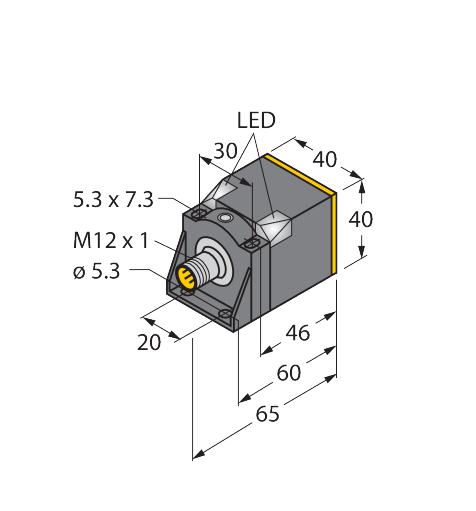

Dimensions (L x W x H): 65 mm x 40 mm x 40 mm
Network protocol: Connection to RFID interface
Housing material: Plastic
Housing quality: PBT-GF30-V0
Mounting conditions: Non-flush
Operating voltage: DC
Protection class: IP67
Quality active face: PA6-GF30
Radio approvals (HF): EU/RED: Europe, UK/SI 2017/1206: United Kingdom, FCC: USA, IC: Canada, MIC: Japan, RCM: Australia/New Zealand, SRRC: PR China, KC: South Korea
Switching element function: Read/Write
