- Radio communication and protocol standards
- ISO 15693, NFC Type 5
- Technology
- HF RFID
- Read/Write distance max. (mm)
- 72
- Suitable for bus mode to TBEN-*
- No
- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -25
- Approvals
- CE, UKCA, UL
- Cable color
- Gray
- Cable length (m)
- 0.15
- Cable quality
- TPU
- Electrical connection
- Cable with connector
- Connector type
- M12 x 1
- Design
- Rectangular

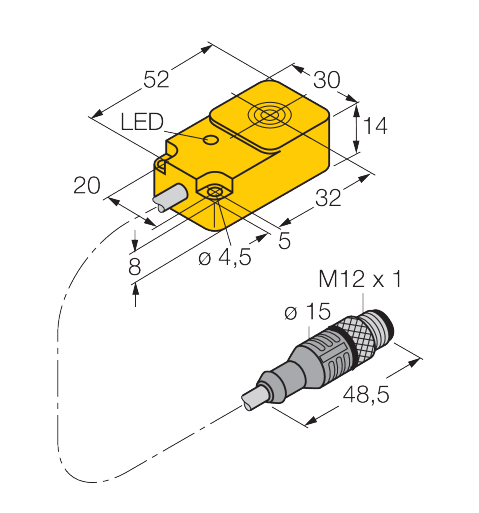

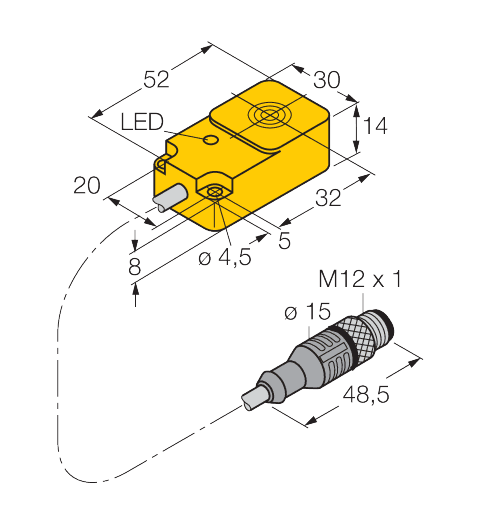

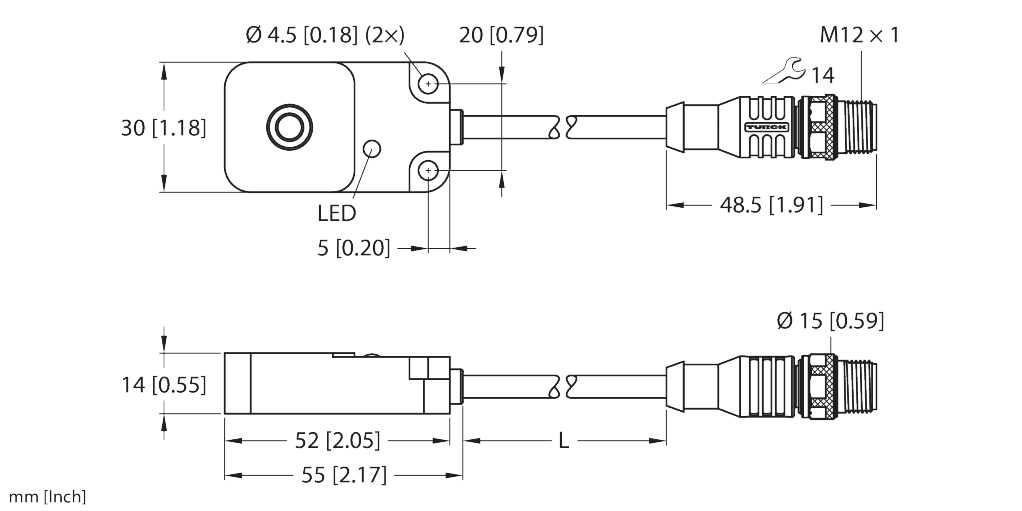

- Dimensions (L x W x H)
- 55 mm x 30 mm x 14 mm
- Network protocol
- Connection to RFID interface
- Housing material
- Plastic
- Housing quality
- PBT-GF30-V0
- Mounting conditions
- Non-flush
- Operating voltage
- DC
- Product type
- Identification
- Protection class
- IP67
- Quality active face
- PBT-GF30-V0
- Radio approvals (HF)
- EU/RED: Europe, UK/SI 2017/1206: United Kingdom, FCC: USA, IC: Canada, RCM: Australia/New Zealand, MIC: Japan, SRRC: PR China, KC: South Korea
- Switching element function
- Read/Write
