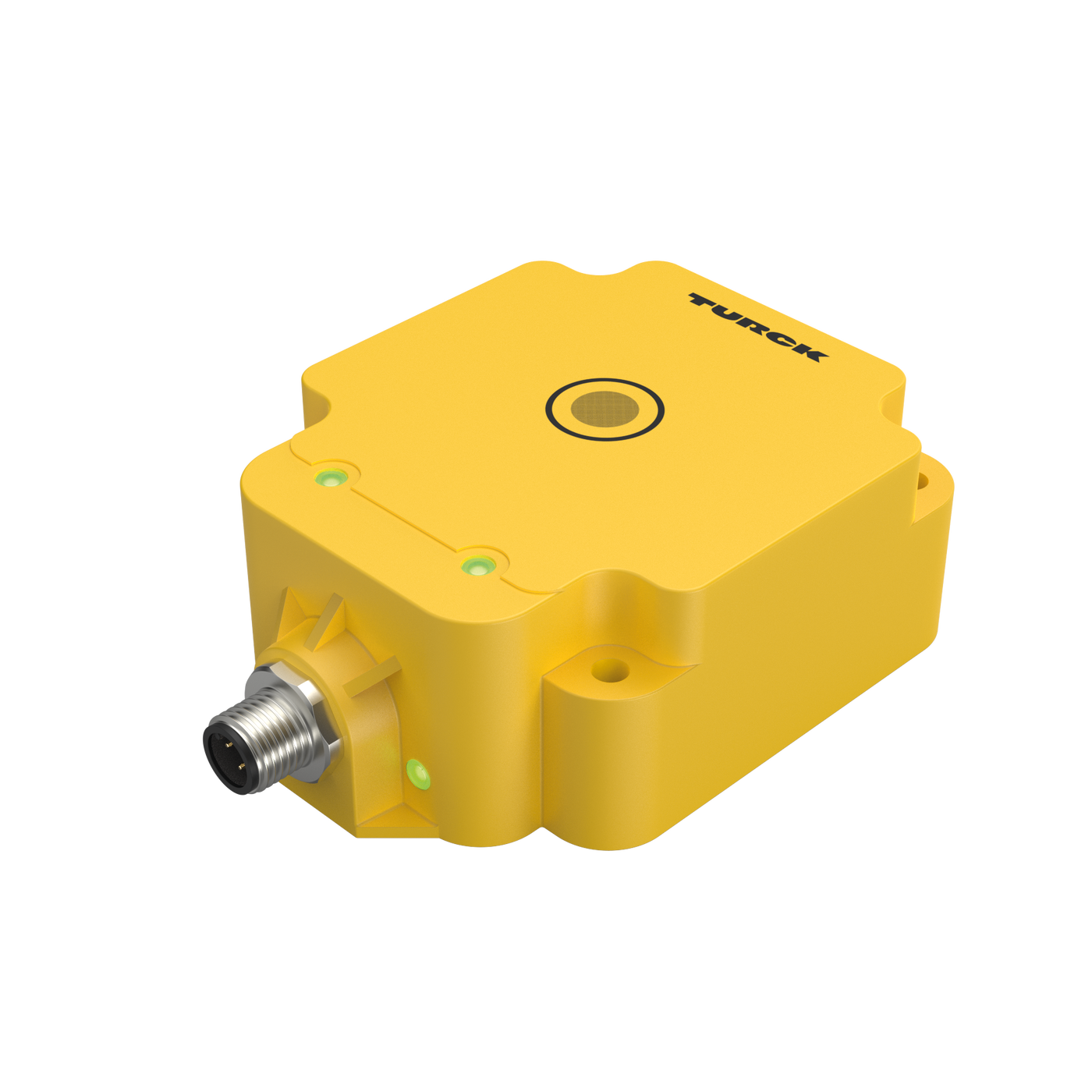

HF Read/Write Head

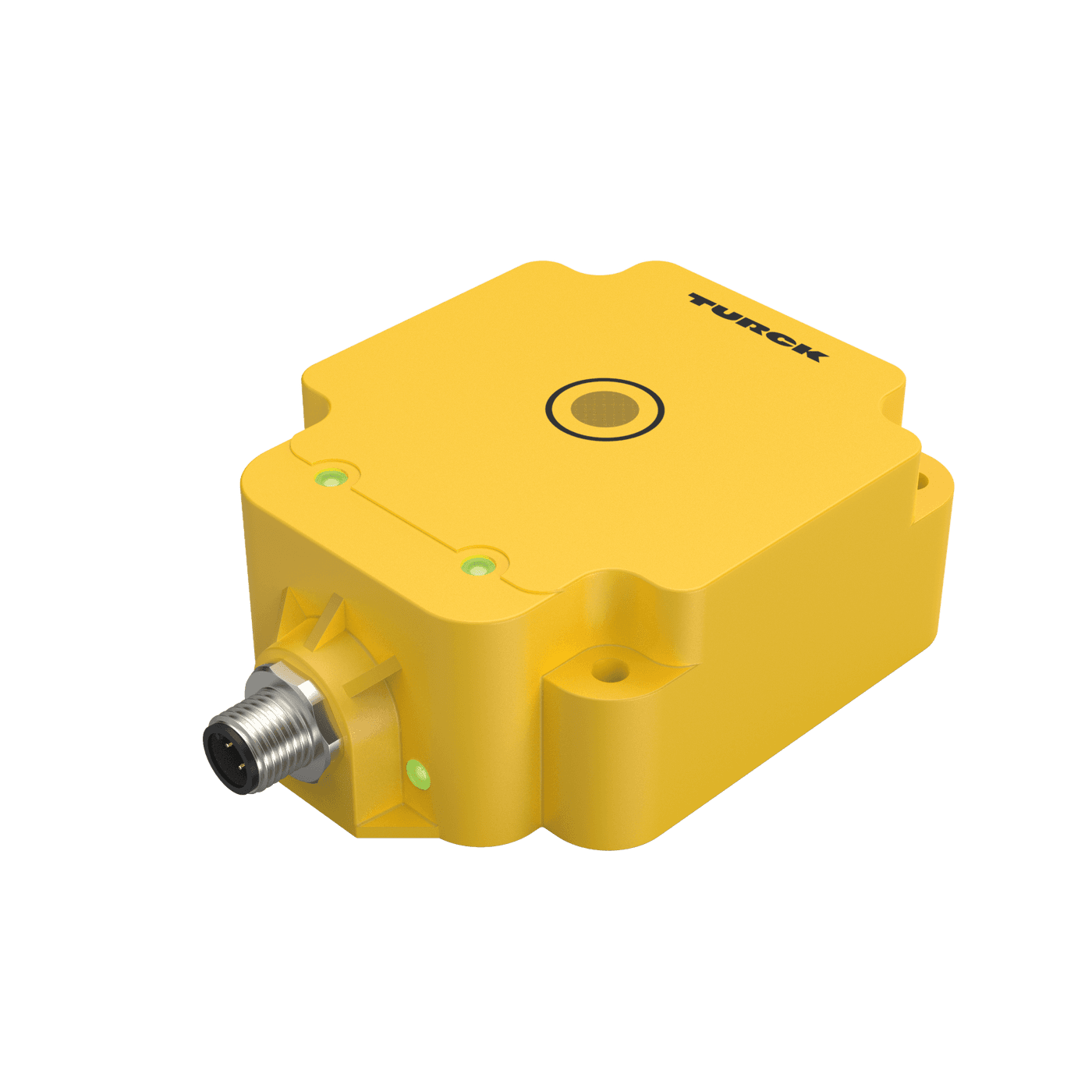

TNLR-Q80-H1147-EX

Order ID no. 7030303

Radio communication and protocol standards: ISO 15693, NFC Type 5
Technology: HF RFID
Read/Write distance max. (mm): 165
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: CE, UKCA, UL, ATEX
Design: Rectangular
Dimensions (L x W x H): 92 mm x 80 mm x 40 mm
Network protocol: Connection to RFID interface
Housing material: Plastic
Housing quality: PBT-GF30-V0
Mounting conditions: Non-flush
Operating voltage: DC
Protection class: IP67
Radio approvals (HF): EU/RED: Europe, UK/SI 2017/1206: United Kingdom, FCC: USA, IC: Canada
Switching element function: Read/Write
