HF Read/Write Head

TN-EM30WD-H1147-EX

Order ID no. 7030386

Protection class: IP68
Switching element function: Read/Write
Network protocol: Connection to RFID interface
Approvals: CE, UKCA, UL, FDA, ATEX
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Mounting conditions: Non-flush
Operating voltage: DC
Read/Write distance max. (mm): 77
Radio communication and protocol standards: ISO 15693
Technology: HF RFID

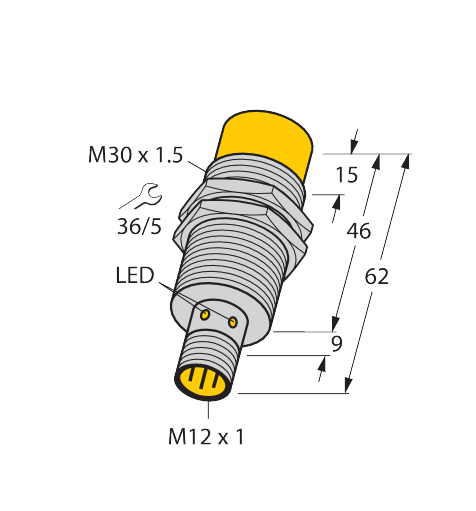

Dimensions: 30 mm x 62 mm
Quality active face: LCP
Radio approvals (HF): EU/RED: Europe, UK SI 2017/1206: United Kingdom, FCC: USA, IC: Canada
