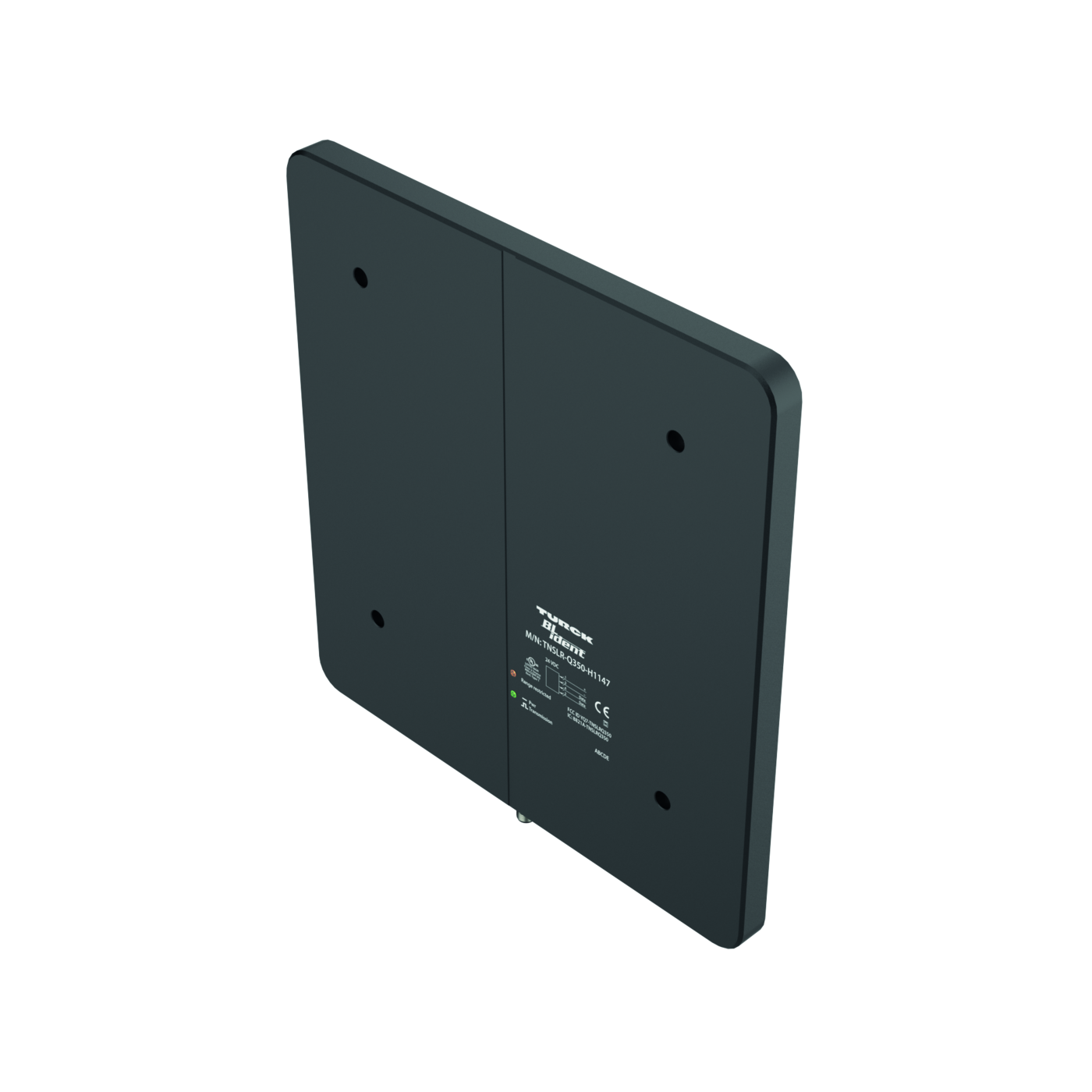

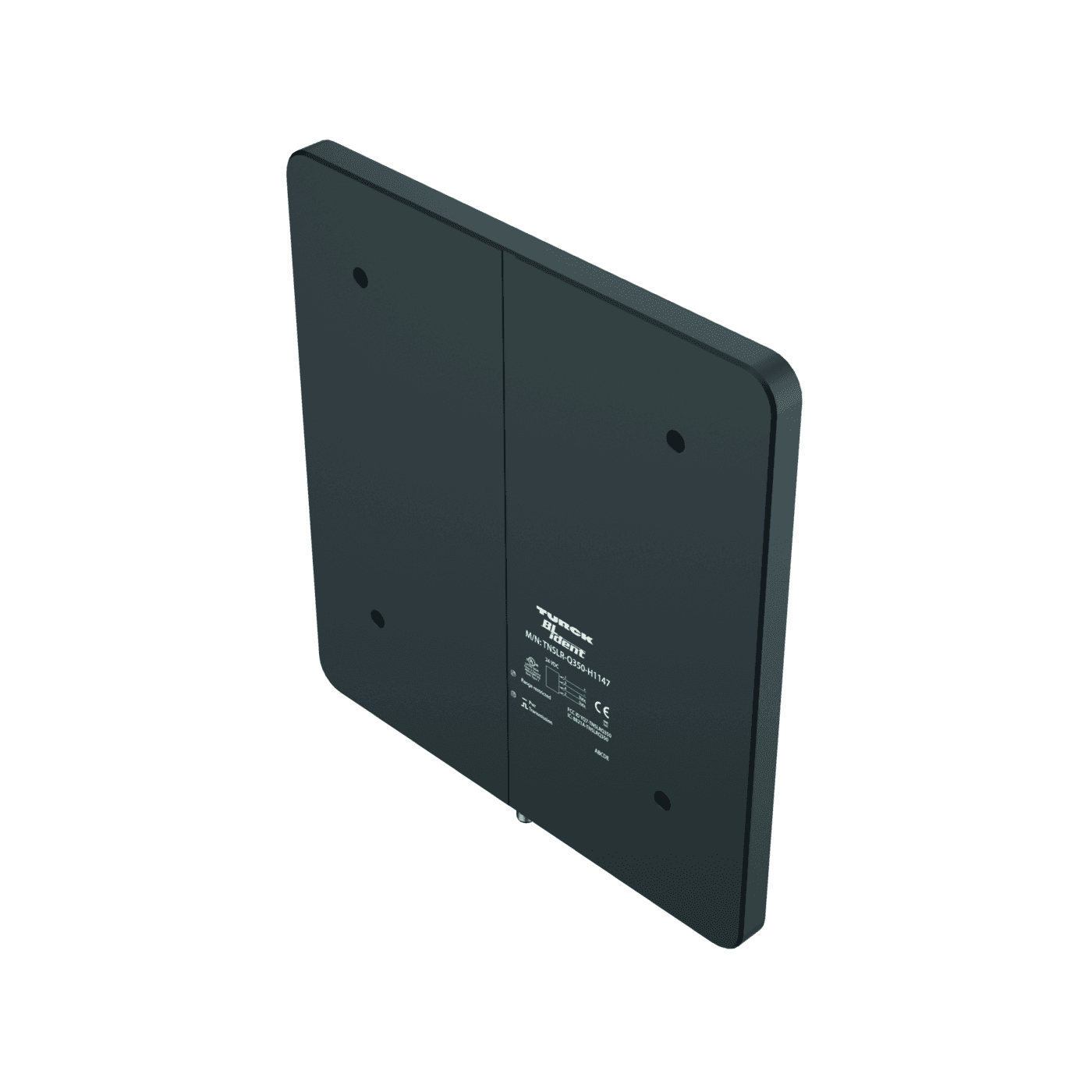

HF Read/Write Head

TNSLR-Q350-H1147

Order ID no. 7030454

Protection class: IP67
Switching element function: Read/Write
Network protocol: Connection to RFID interface
Approvals: CE, UKCA, UL
Design: Rectangular
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PBT-GF30-V0
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Mounting conditions: Non-flush
Operating voltage: DC
Read/Write distance max. (mm): 794
Radio communication and protocol standards: ISO 15693
Technology: HF RFID

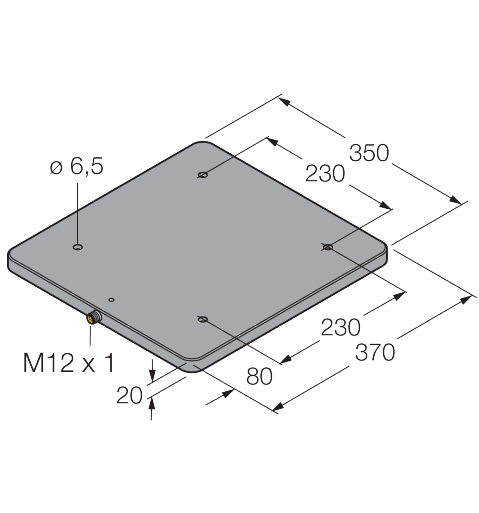

Dimensions: 370 mm x 350 mm x 20 mm
Radio approvals (HF): EU/RED: Europe, UK SI 2017/1206: United Kingdom, FCC: USA, IC: Canada, RCM: Australia/New Zealand, KC: South Korea
