HF Read/Write Head

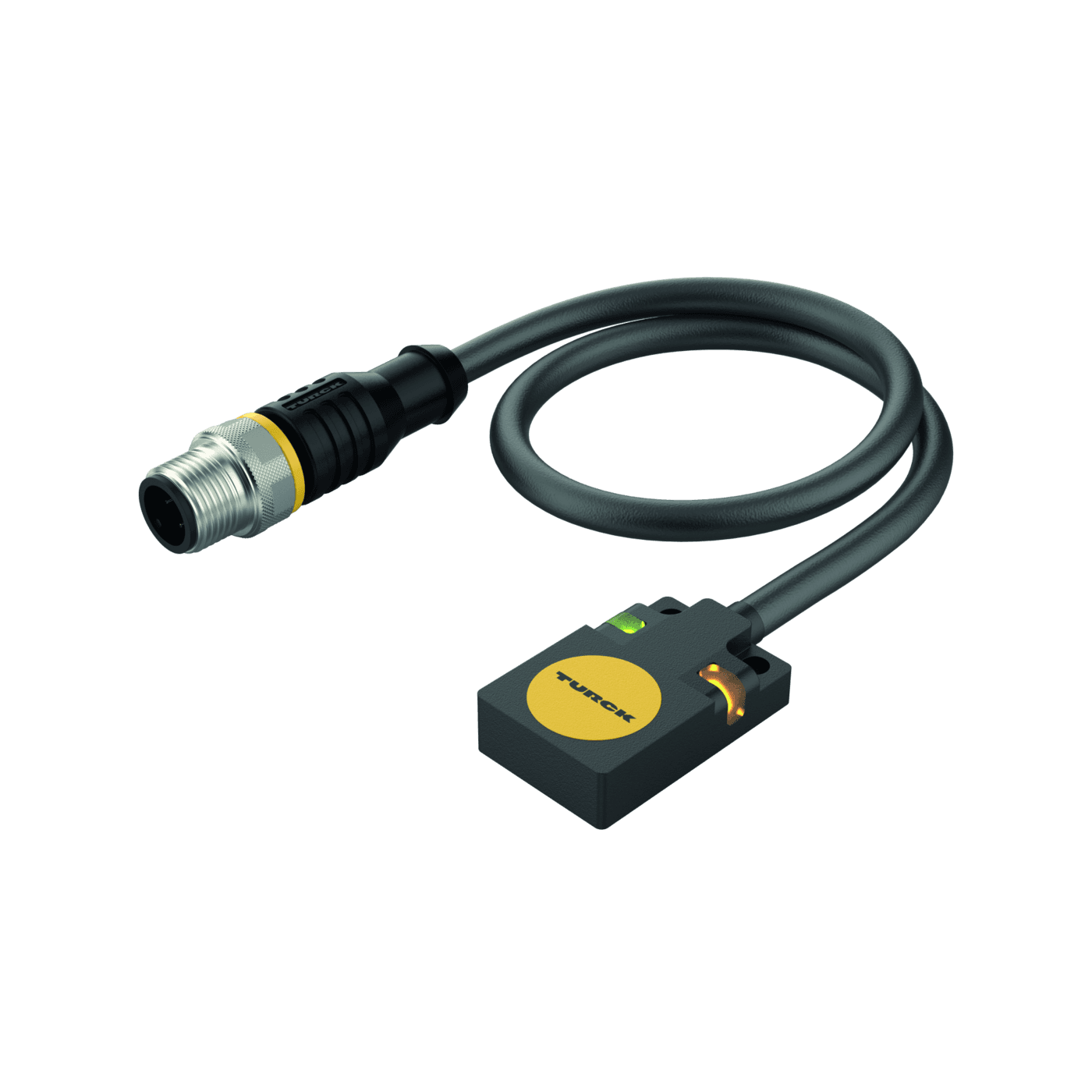

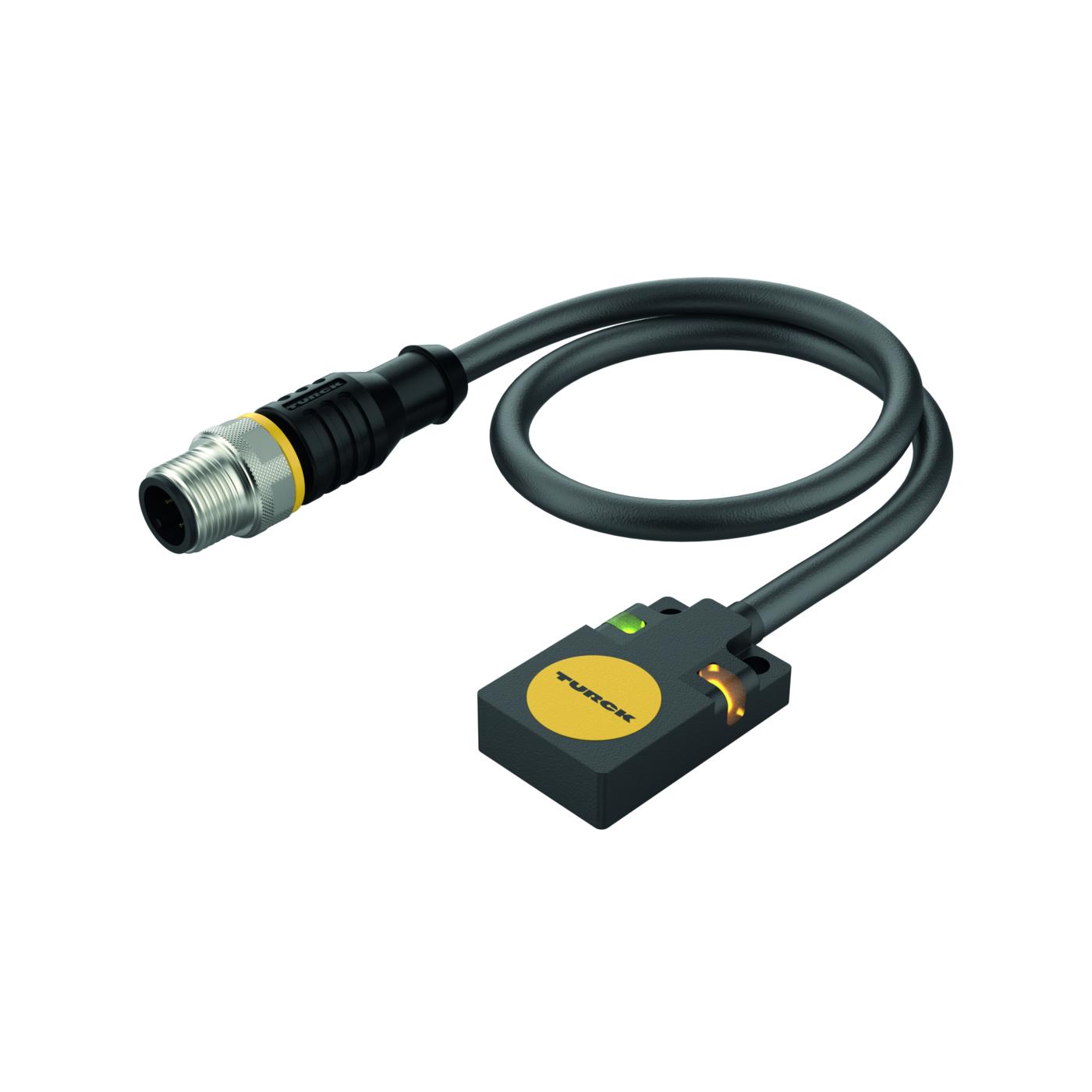

TB-Q08-0.15-RS4.47T

Order ID no. 7030553

Protection class: IP67
Switching element function: Read/Write
Network protocol: Connection to RFID interface
Cable length (m): 0.15
Cable color: Gray
Approvals: CE, UKCA, UL
Design: Rectangular
Electrical connection: Cable with connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: GD-Zn
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Mounting conditions: Flush
Operating voltage: DC
Read/Write distance max. (mm): 30
Radio communication and protocol standards: ISO 15693
Technology: HF RFID

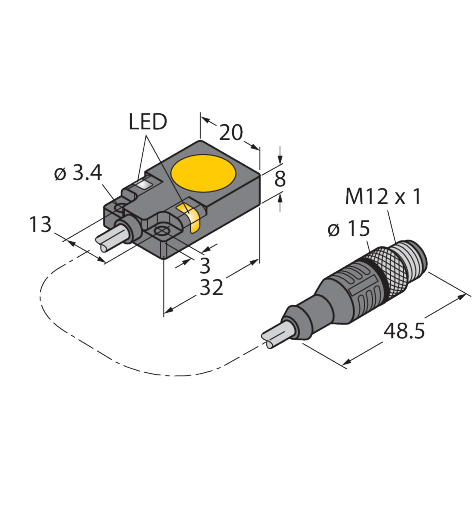

Dimensions: 32 mm x 20 mm x 8 mm
Quality active face: PA12-GF30
Radio approvals (HF): EU/RED: Europe, UK SI 2017/1206: United Kingdom, FCC: USA, IC: Canada, MIC: Japan, RCM: Australia/New Zealand, SRRC: PR China, KC: South Korea
