- Radio communication and protocol standards
- ISO 15693, NFC Type 5
- Technology
- HF RFID
- Read/Write distance max. (mm)
- 215
- Suitable for bus mode to TBEN-*
- Yes
- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -25
- Approvals
- CE, UKCA, UL
- Connector type
- M12 x 1
- Design
- Rectangular

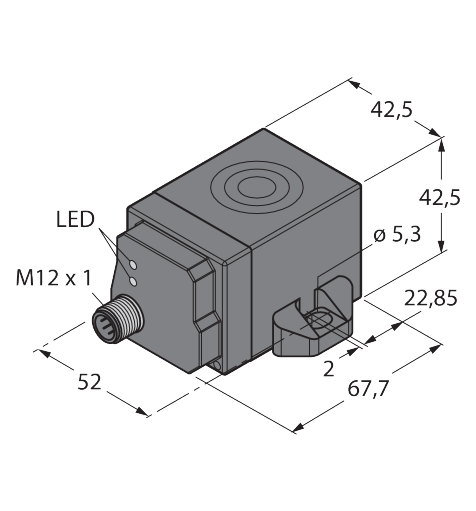

- Dimensions (L x W x H)
- 67,7 mm x 42,5 mm x 42,5 mm
- Network protocol
- Connection to RFID interface
- Housing material
- Plastic
- Housing quality
- PA12-GF30
- Mounting conditions
- Non-flush
- Operating voltage
- DC
- Protection class
- IP68, IP69K
- Radio approvals (HF)
- EU/RED: Europe, UK/SI 2017/1206: United Kingdom, FCC: USA, IC: Canada, MIC: Japan, RCM: Australia/New Zealand, SRRC: PR China, KC: South Korea
- Switching element function
- Read/Write
