TX700 HMI/PLC Series

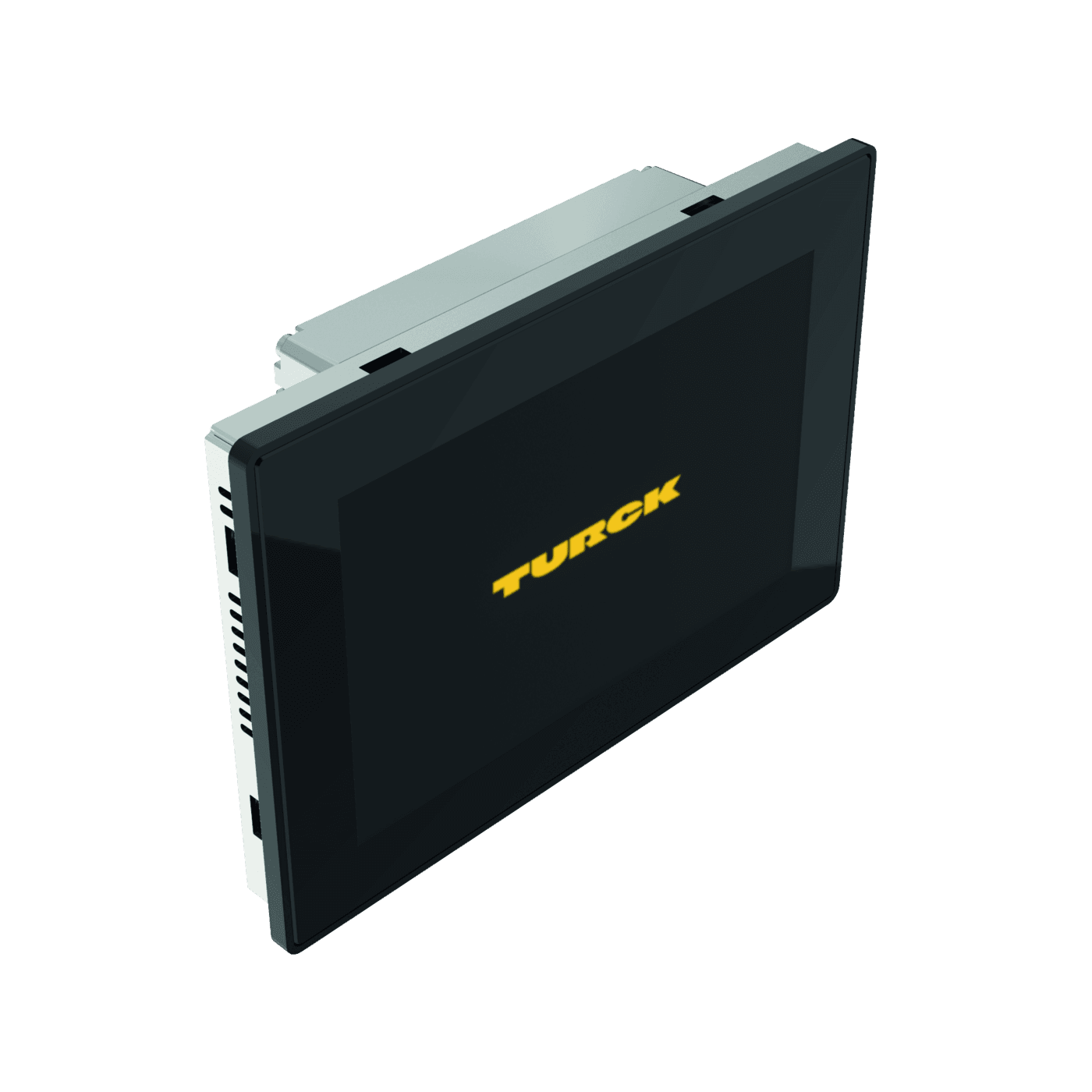

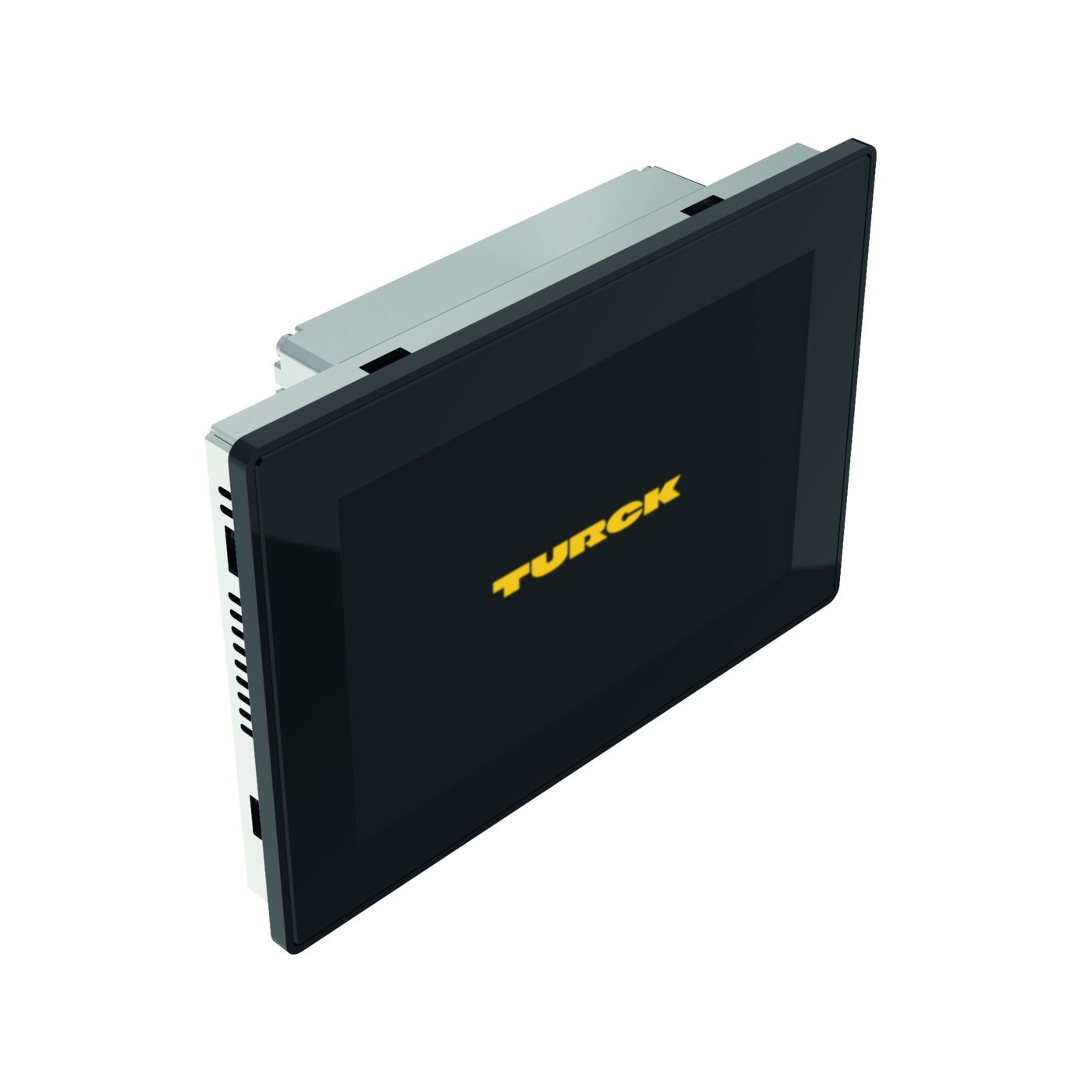

TX710-P3CV01

Order ID no. 100002031

Application area: Factory Automation
Approvals: CE, cULus, DNV GL, LR
Device function: HMI/PLC
Diagonal screen size (″): 10.1
Dimensions (L x W x H): 197 mm x 282 mm x 56 mm
Dimmable: Yes
Fieldbus master: CANopen, EtherCAT, EtherNet/IP, Modbus RTU, Modbus TCP, PROFINET, SAE J1939
Fieldbus slave: Modbus RTU, Modbus TCP, PROFINET
Product type: Cloud Gateway, Industrial Control
Programming: CODESYS V3
Protection class: IP66 front, IP20 rear
Radio interface: Optionally expandable
Touchscreen: Capacitive, Glass front
