TX400 HMI/PLC product series 10″ Display — CODESYS V3 PLC with TARGET and WEB VISU

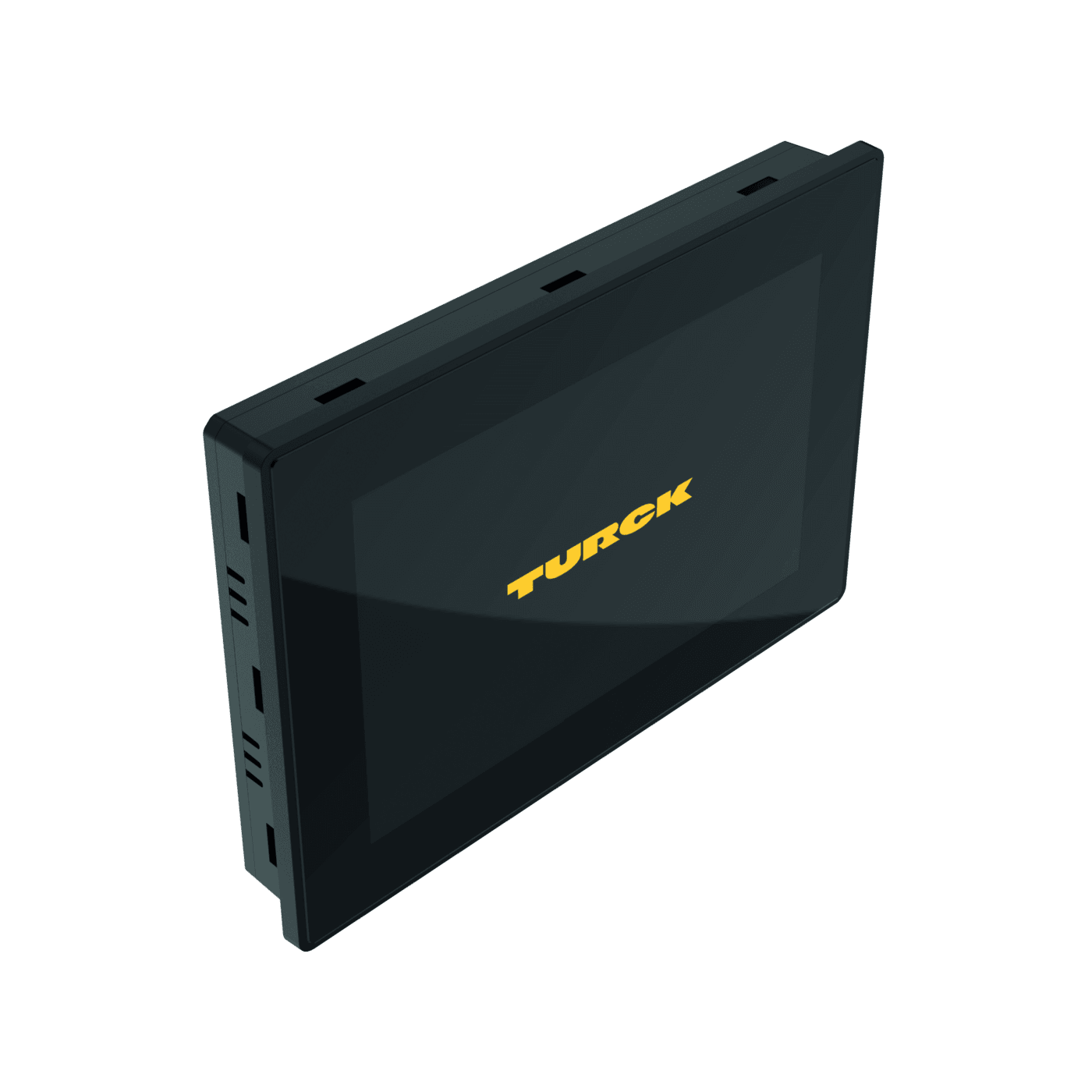

TX410-P3CV01

Order ID no. 100051169

Application area: Factory Automation
Approvals: CE, cULus
Device function: HMI/PLC
Diagonal screen size (″): 10
Dimensions (L x W x H): 282 mm x 197 mm x 37 mm
Dimmable: Yes
Fieldbus master: CANopen, EtherCAT, EtherNet/IP, Modbus RTU, Modbus TCP, PROFINET, SAE J1939
Fieldbus slave: Modbus RTU, Modbus TCP, PROFINET
Product type: Cloud Gateway, Industrial Control
Programming: CODESYS V3
Protection class: IP66 front, IP20 rear
Resolution: 1280 x 800 Pixel
Touchscreen: Capacitive
