- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- ATEX Zone 2/22, cULus, IECEx, CCC

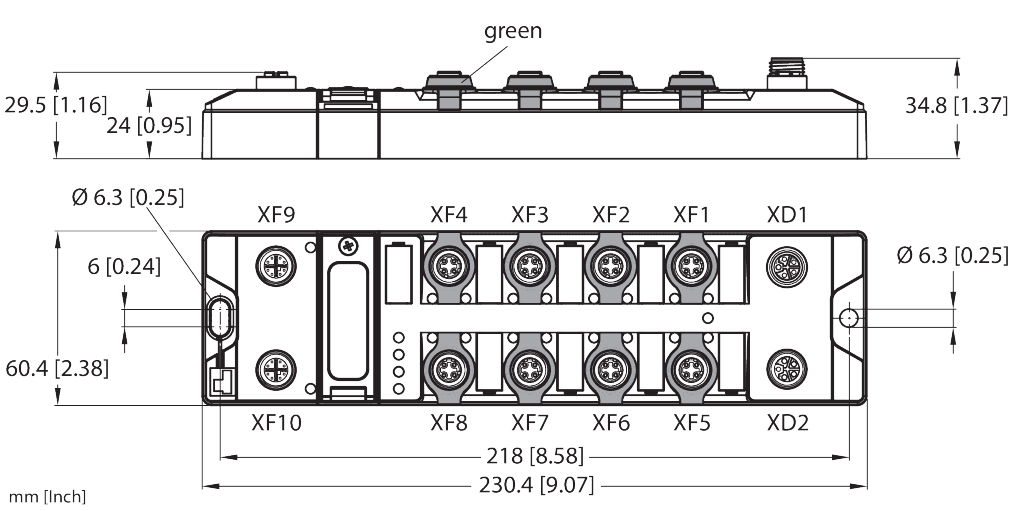

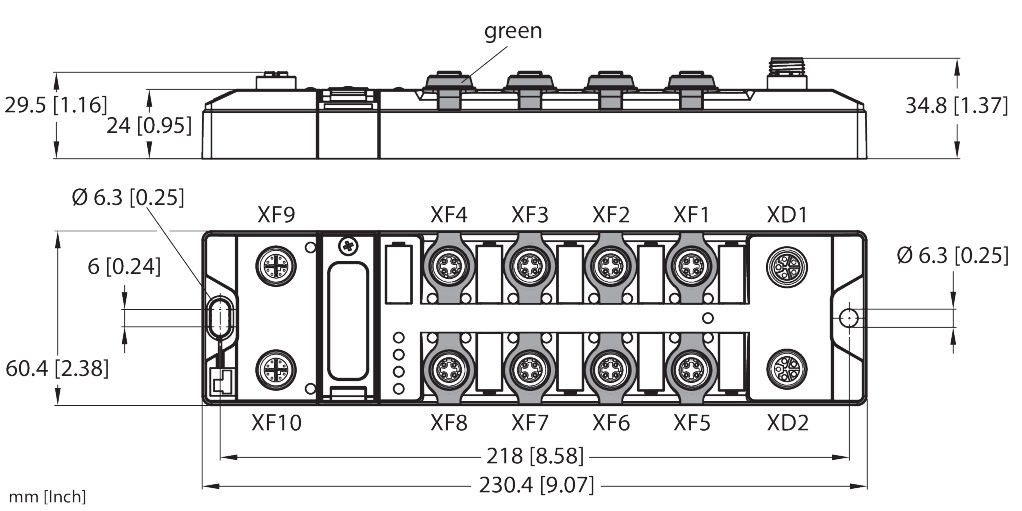

- Dimensions (L x W x H)
- 230,4 mm x 60,4 mm x 34,8 mm
- Connection technology Ethernet
- 2 × M12, 8-pin, X-coded, 8 × M12, 4-pin, D-coded
- Number of Ethernet ports
- 10 ports
- Transmission rate Ethernet
- 10/100/1000 Mbps
- Network protocol
- Modbus TCP, EtherNet/IP, PROFINET
- Installation area
- zone 2, zone 22
- Voltage supply connection
- M12, L-coded
- Product type
- Ethernet switch
- Protection class
- IP65, IP67, IP69K
- Function
- Managed
